MTD015140

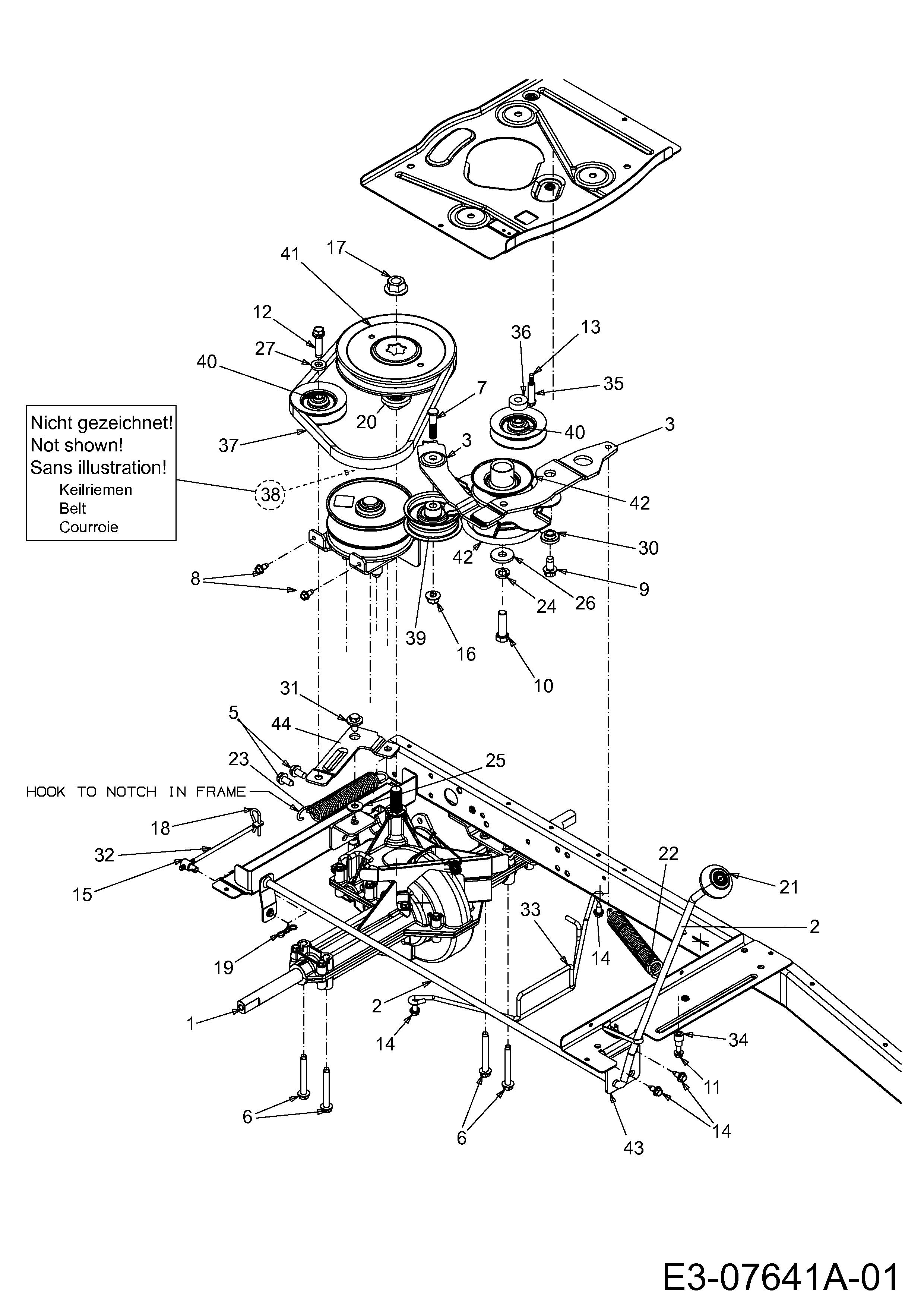

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD015140

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-05056 TRANS ASM:SNGL SPD £316.85 Add
002 647-04262 HANDLE ASM SHIFT £55.60 Add
003 683-04768 N/A POA
005 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
006 710-05378 Screw £4.91 Add
007 710-05415A SCREW HEX HEAD CAP £16.20 Add
008 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
009 710-0623 SCR:TT:3/8-16:.750 HXINDWSH £6.30 Add
010 710-0757 HEX SCREW £7.96 Add
011 710-0809 SCR:TT:1/4-20:1.250:HXINDWSH £3.42 Add
012 710-1007 SCREW HEX HD TAP £4.14 Add
013 710-1026 SCREW £3.91 Add
014 710-1652 SCR:TT:1/4-20 x.625:HXINDWH £4.25 Add
015 711-0736 FERRULE-ADJ:1/4-20 x 1.00 £15.86 Add
016 712-04065 NUT £4.02 Add
017 712-0700 NUT:FLANGE:9/16-18:GR2 £13.38 Add
018 714-0209 INTERNAL COTTER PIN .125 DIA £3.49 Add
019 714-04040 PIN-COTTER £4.38 Add
020 718-04407 HUB:PUL:5/8 SPLINE £20.19 Add
021 720-04028 SHIFT KNOB BLACK £8.34 Add
022 732-0459C EXTENSION SPRING £18.91 Add
023 732-04934 SPRING-BRAKE TENSION £18.67 Add
024 736-0171 WASHER £2.93 Add
025 736-0300 WASHER £2.81 Add
026 736-0322 FI-WASH £8.68 Add
027 736-3010 WASH:FL:.407X.812X.135:HD £2.85 Add
030 738-0372B COLLAR £5.64 Add
031 738-0930 SCR:SHLDR:.560x.165:TT:5/16-18 £5.70 Add
032 747-05593 ROD,HYDRO DISENGAGEMENT £50.68 Add
033 747-05617A TENSIONER £64.40 Add
034 750-04099 SPACER-PULLEY £20.49 Add
035 750-04456 SPACER £5.75 Add
036 750-3119 SPACER £13.99 Add
037 754-05040 V BELT £38.34 Add
038 754-04331 BELT £42.42 Add
039 756-04224 IDLER PULLEY £28.15 Add
040 756-04325 PULLEY £35.65 Add
041 756-04464 PUL:V TYP:6.56 DIA SPUN £36.37 Add
042 756-04479 PULLEY ENGINE £78.44 Add
043 783-07207 BRACKET £20.83 Add
044 783-07248 BRACKET ASSY-IDLER £30.61 Add
