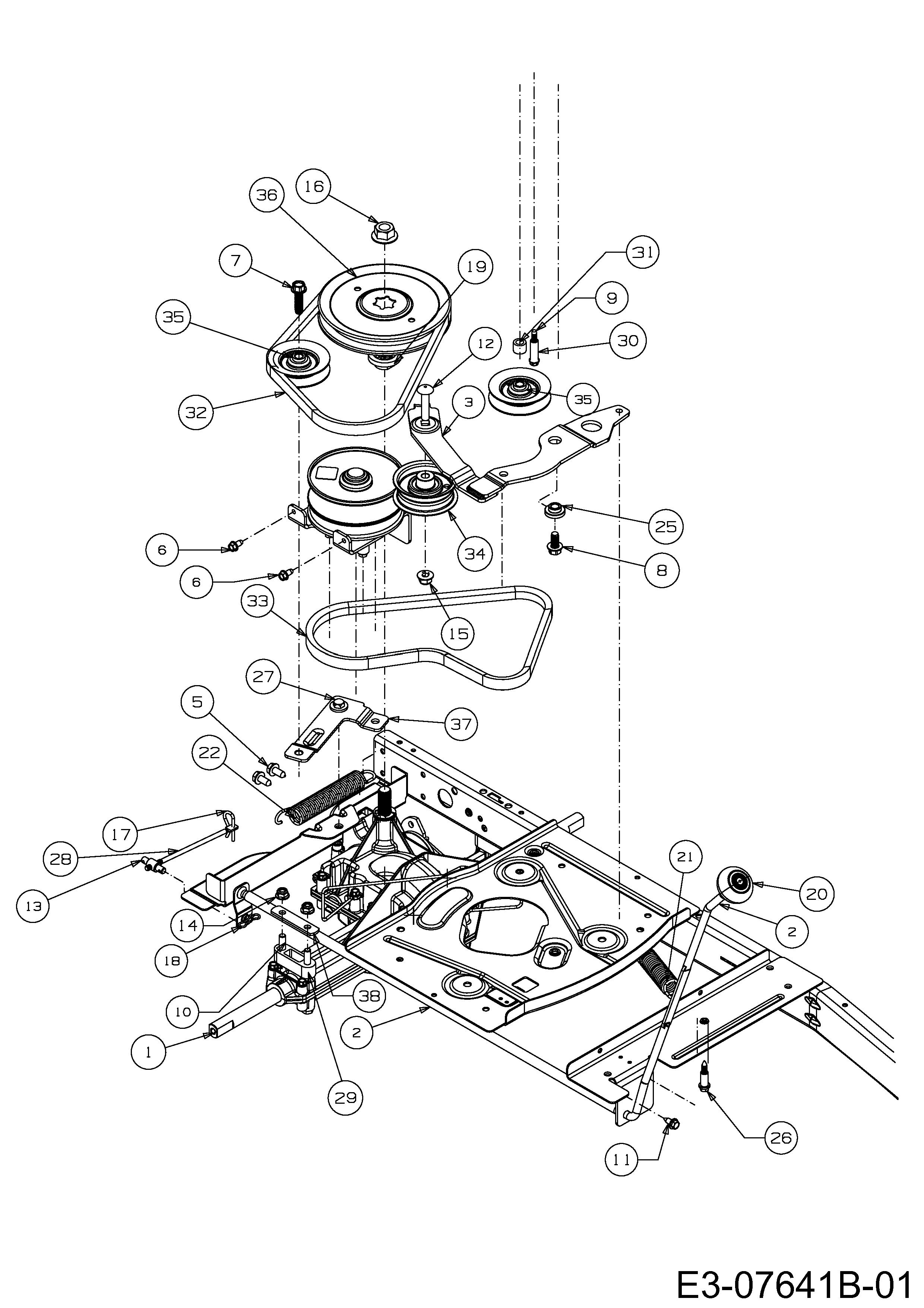

MTD015142

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-05056B	TRANS ASM:SNGL SPD	£359.18	Add
002	647-04262C	SHFT ASM:PIVOT	N/A	POA
003	683-04768A	(OBSOLETE)	N/A
004	683-05057		N/A	POA
005	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
006	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
007	710-06016	SCREW 3/8-16 X 1.375	£11.18	Add
008	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
009	710-1026	SCREW	£3.91	Add
010	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
011	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
012	710-0560	SCR:CRG:3/8-16:1.75:GR1	£3.61	Add
013	711-06141	FERRULE ADJUST 1/4-20 x 1.00	£23.37	Add
014	712-04063	FLANGED NUT	£4.20	Add
015	712-04065	NUT	£4.02	Add
016	712-0700	NUT:FLANGE:9/16-18:GR2	£13.38	Add
017	714-0209	INTERNAL COTTER PIN .125 DIA	£3.49	Add
018	714-04040	PIN-COTTER	£4.38	Add
019	718-04407	HUB:PUL:5/8 SPLINE	£20.19	Add
020	720-04028	SHIFT KNOB BLACK	£8.34	Add
021	732-0459C	EXTENSION SPRING	£18.91	Add
022	732-04934	SPRING-BRAKE TENSION	£18.67	Add
025	738-0372B	COLLAR	£5.64	Add
026	738-05016	SHOULDER SCREW	£17.07	Add
027	738-05019	SHOULDER SCREW	£14.09	Add
028	747-05593	ROD,HYDRO DISENGAGEMENT	£50.68	Add
029	748-0334	TRANSAXLE SPACER .68	£6.32	Add
030	750-04456	SPACER	£5.75	Add
031	750-05563	SPACER-PULLEY	£11.63	Add
032	754-05040	V BELT	£38.34	Add
033	754-04331	BELT	£42.42	Add
034	756-04224	IDLER PULLEY	£28.15	Add
035	756-04325	PULLEY	£35.65	Add
036	756-04464	PUL:V TYP:6.56 DIA SPUN	£36.37	Add
037	783-07248A	BRACKET ASSY-IDLER	£59.51	Add
038	783-08131		N/A	POA
