MTD015792

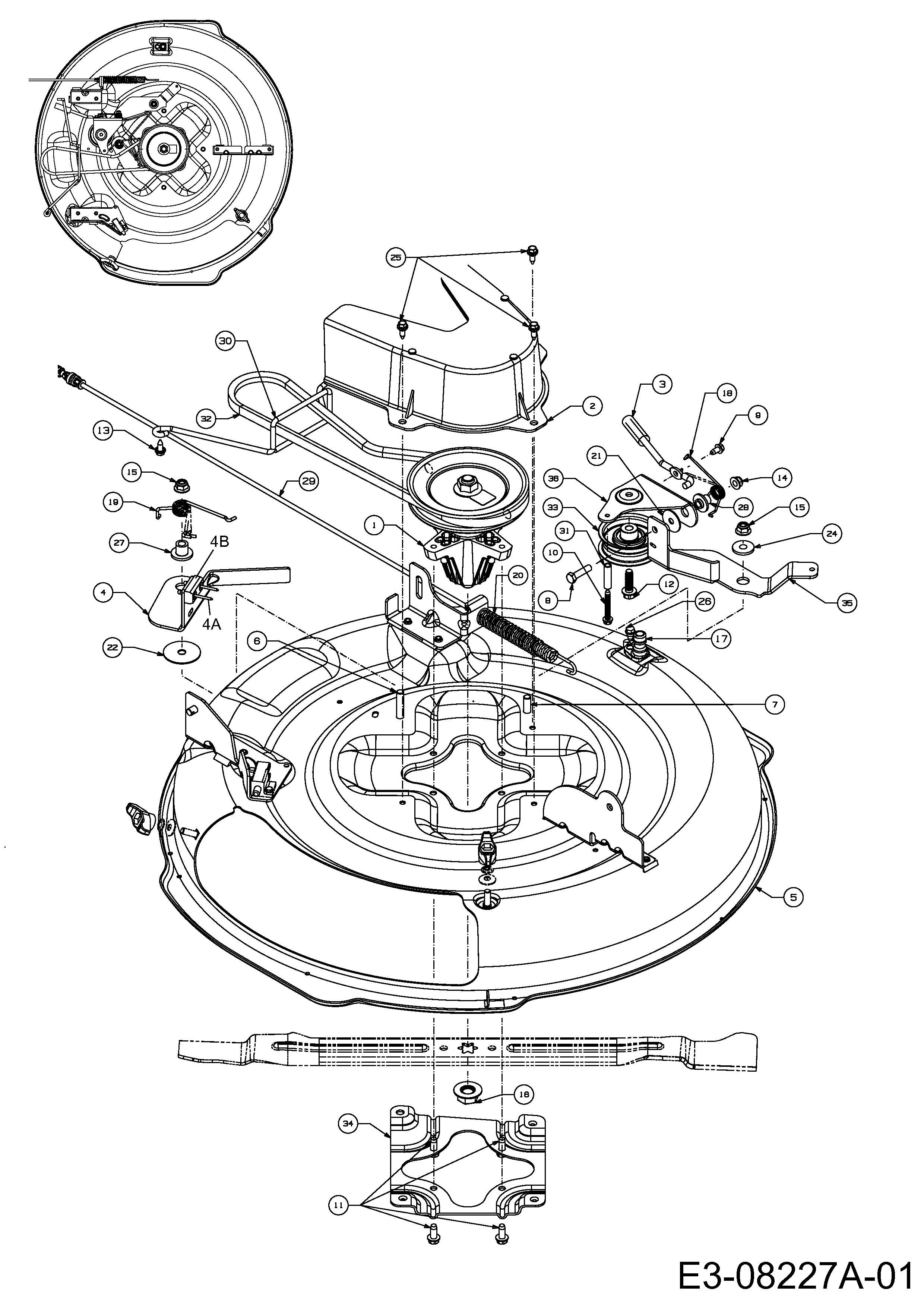

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04822A	SPDL ASM:PUL:5.695 DIA X .5625	£121.70	Add
002	631-05024	COVER BELT	£57.88	Add
003	647-05028	ROD ASSY IDLER GUIDE	£42.34	Add
004	683-05034	BRACKET ASM BRAKE PTO	£39.46	Add
005	683-05039E-S	DECK 30"	£289.20	Add
006	710-0347	HEX SCR	£3.72	Add
007	710-0514	HEX BOLT	£3.81	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-1026	SCREW	£3.91	Add
011	710-1260A	SCREW	£4.00	Add
012	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
013	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
014	712-04063	FLANGED NUT	£4.20	Add
015	712-04065	NUT	£4.02	Add
016	712-05134	BLADE NUT	£3.81	Add
017	731-07487	NOZ:DECK WSH	£16.29	Add
018	732-05045	SPRING	£18.21	Add
019	732-05046	SPR: TORSION:.290 ID X 1.95	£16.16	Add
020	732-0583	Spring (OBSOLETE) (OBSOLETE)	N/A
021	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add
022	736-3040	FLAT WASHER	£13.16	Add
024	738-0347	SPACER	£4.16	Add
025	738-04184A	SCR:SHLDR:.368x.113:TT:1/4-20	£5.41	Add
026	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
027	738-05021	SPACER	£13.43	Add
028	738-05022	SPACER	£15.73	Add
029	746-04802A	CABLE PTO	£34.61	Add
030	747-06126A	GUIDE ASSY-BELT	£29.13	Add
031	750-04456	SPACER	£5.75	Add
032	754-05001	V BELT	£46.28	Add
033	756-04224	IDLER PULLEY	£28.15	Add
034	783-08047A	BRACKET DECK SUPPORT SPINDLE	£38.41	Add
035	783-08128	BRACKET IDLER LOWER	£53.50	Add
036	783-08226637	BRACKET IDLER UPPER	£49.98	Add
04A	728-0180	RIV:POP: .187 DIA:#68 728-0173	£7.06	Add
04B	761-04017	PAD:BRAKE:SPINDLE 38 & 42 MAN	£16.03	Add
