MTD014029

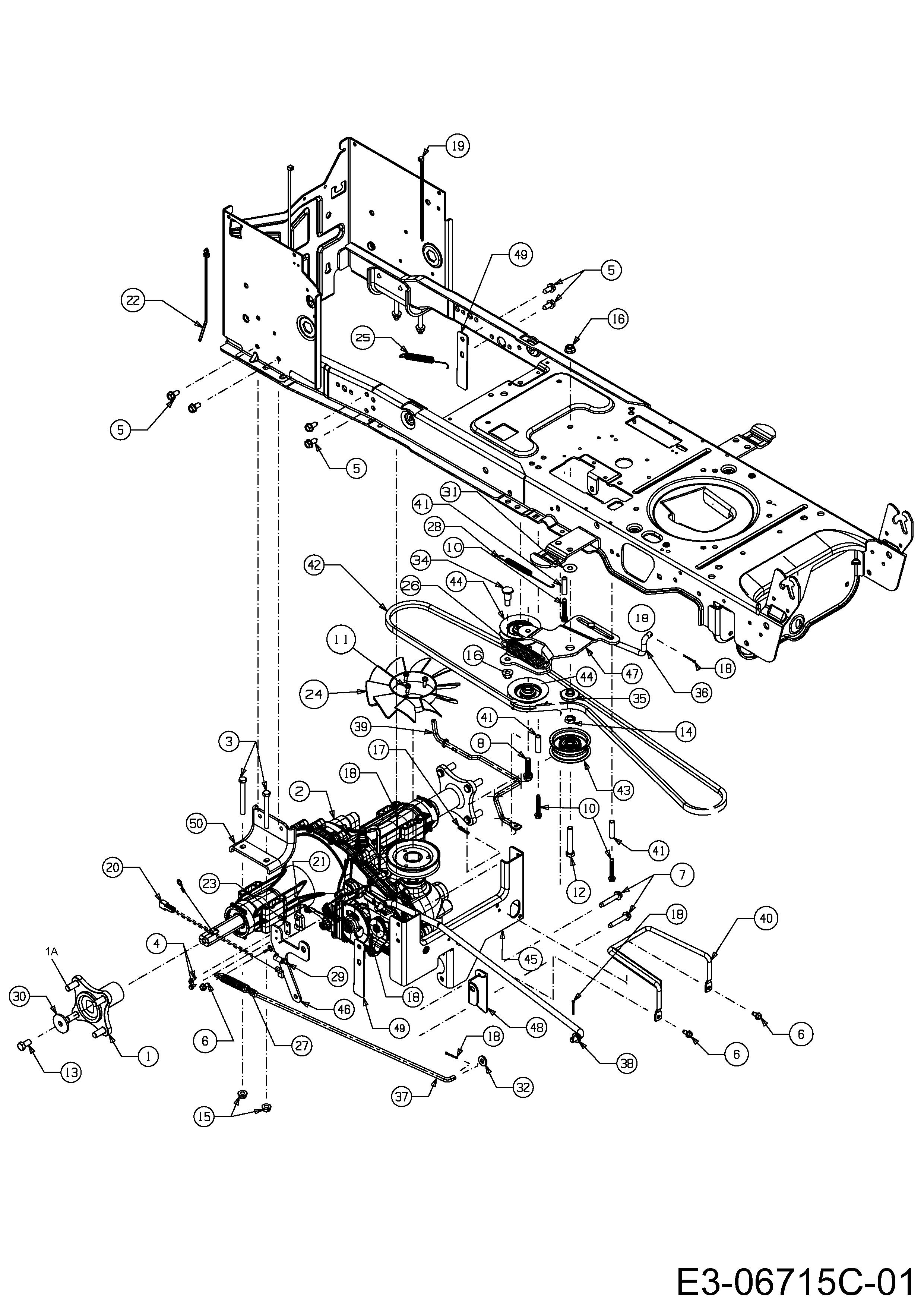

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04317	HUB ASSY-WHEEL	£103.38	Add
002	618-04917	TRANSMISSION HYDRO ASSY.	£1,171.54	Add
003	710-0189	HHCS:5/16-18:3.00:GR5:STD	£4.62	Add
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
005	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
006	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
007	710-0909A	NO LONGER AVAILABLE	N/A	POA
008	710-1007	SCREW HEX HD TAP	£4.14	Add
009	710-1008	NO LONGER AVAILABLE	N/A	POA
010	710-1026	SCREW	£3.91	Add
011	710-1189	NO LONGER AVAILABLE	N/A	POA
012	710-3011	BOLT 3/8 X 2-1/4 TYPE 5	£5.52	Add
013	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
014	712-0240	NUT	£3.62	Add
015	712-04063	FLANGED NUT	£4.20	Add
016	712-04065	NUT	£4.02	Add
017	714-0104	PIN INTERNAL COTTER	£2.78	Add
018	714-0111	COTTER PIN	£3.20	Add
019	725-0157	NO LONGER AVAILABLE	N/A	POA
01A	710-0852	BOLT	£5.63	Add
020	725-04791A	HARN:JUMPER:NX9:HYD GND & REV	£25.29	Add
021	725-1644	SWITCH:SPRING:SHORT	£6.24	Add
022	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
023	726-0320	INSULATING PLATE	£2.97	Add
024	731-1449A	FAN:BLADE:10	£22.24	Add
025	732-04528		£9.70	Add
026	732-04792	SPR:EXTN:1.00 OD x 4.75 x .125	£12.84	Add
027	732-0716D	SPRING EXTENSION	£14.42	Add
028	732-0932	NO LONGER AVAILABLE	N/A	POA
029	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
030	736-0227	WASH:FLAT:.390x1.500x.134	£10.28	Add
031	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
032	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
034	738-0430	SHLD-SCR: .50 x .685:3/8-16	£8.01	Add
035	738-04420	SPCR:SHLDR:1.375x .380x .183	£4.62	Add
036	747-04957A	ROD:TRANS:FOOTPEDAL BYPASS	£12.14	Add
037	747-05124	brake rod	£16.96	Add
038	747-05125A	ROD CONTROL	£31.44	Add
039	747-05130	ROD,HYDRO DISENGAGEMENT	£23.09	Add
040	747-05181	BELT KEEPER	£21.60	Add
041	750-04456	SPACER	£5.75	Add
042	754-04244A	BELT	£104.25	Add
043	756-04224	IDLER PULLEY	£28.15	Add
044	756-04325	PULLEY	£35.65	Add
045	783-05443A		N/A	POA
046	783-05841A	BRACKET SWITCH	N/A	POA
047	783-06027B	BRKT:IDLR:CENTER DBL	£28.82	Add
048	783-06501A		N/A	POA
049	783-06503	PLATE BRACKET	£9.51	Add
050	783-0693A		N/A	POA
