MTD011608

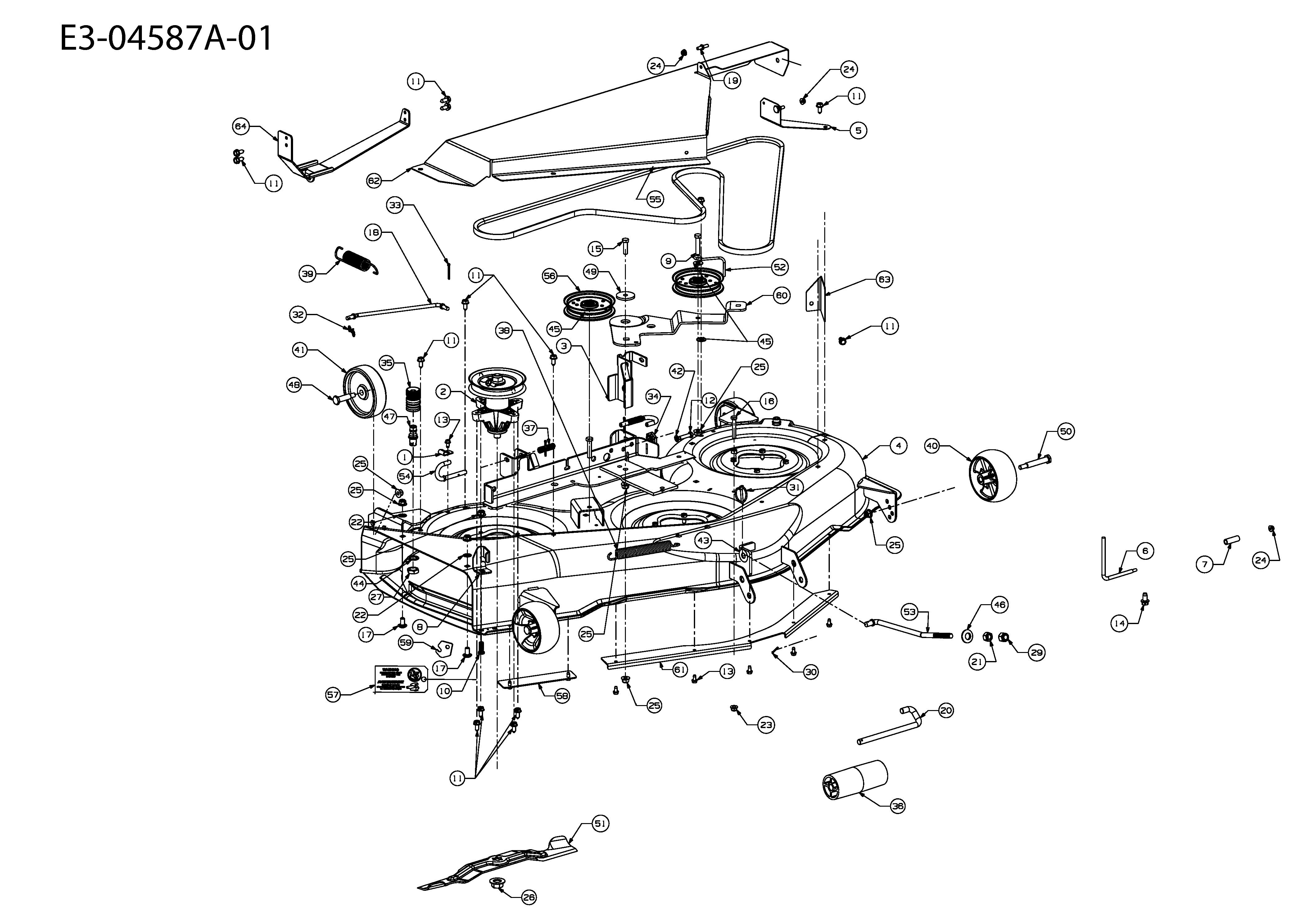

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04493	SHELL 50" DECK	N/A	POA
005	683-04540-CY	BRACKET CUB YELLOW	£53.25	Add
006	683-04541	CVR ASM:PTO:CE	N/A	POA
007	683-04543A	COVER SIDE 50" DECK	£114.45	Add
008	703-3279	STOP:CHUT:DFL	£27.80	Add
009	710-0347	HEX SCR	£3.72	Add
010	710-04095	SCREW HEX CAP	£8.34	Add
011	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
012	710-0528	SCREW (DNR)	£3.55	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
015	710-3005	BOLT	£3.24	Add
016	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
017	710-3178	BOLT SHORT NECK CARR	£11.46	Add
018	711-05078	Base pin	£31.89	Add
019	711-1293	PIN:KEEPER:BELT:1/4-20	£13.65	Add
020	711-3314	PIN, ROLLER	£33.00	Add
021	712-0206	NUT	£3.42	Add
022	712-0229	NUT PUSH	£5.20	Add
023	712-04063	FLANGED NUT	£4.20	Add
024	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
025	712-04065	NUT	£4.02	Add
026	712-05134	BLADE NUT	£3.81	Add
027	712-0641	NUT	£6.47	Add
028	712-3010	NUT 5/16 x 18	£2.77	Add
029	712-3083	NUT	£2.79	Add
030	714-0111	COTTER PIN	£3.20	Add
031	714-0220A	PIN:LYNCH:.1875	£7.99	Add
032	714-04043	COTTER PIN	£4.29	Add
033	714-0470	COTTER PIN	£5.07	Add
034	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
035	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
036	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
037	732-0306A	SPACER	£5.28	Add
038	732-0459C	EXTENSION SPRING	£18.91	Add
039	732-0934	SPR:EXTN:1.15 OD x 5.99 LG	£17.69	Add
040	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
041	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
042	736-0119	LOCK WASHER 5/16	£3.33	Add
043	736-0179	WASHER-FL	£14.34	Add
044	736-0225	WASHER (RED)	£5.32	Add
045	736-0300	WASHER	£2.81	Add
046	736-0317	BELLE WASHER	£8.58	Add
047	737-04003D	NOZ:DECK:WATER	£19.14	Add
048	738-0373	AXLE BOLT	£6.84	Add
049	738-04162C	SPACER	£4.64	Add
050	738-3056	SHOULDER BOLT	£12.94	Add
051	742-04053C	BLADE	£39.58	Add
052	747-04530	ROD KEEPER	£19.05	Add
053	747-05067A	ROD DECK FRONT LIFT 50" & 54"	£32.36	Add
054	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
055	754-04164	V BELT	£102.03	Add
056	753-08171	KIT IDLER PULLEY	£37.57	Add
057	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
058	783-04415	SKIRT:RH:50"	N/A	POA
059	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
060	783-05474	BRKT:IDLR:50LT W/O SPACER	N/A	POA
061	783-05513	SKIRT:CNTR:50" EXPORT	£109.17	Add
062	783-06268	COVER 50" DECK	N/A	POA
063	783-06291	COVER BELT 50" DECK	£39.93	Add
064	783-06312	BRKT STABILIZER	N/A	POA
