MTD010792

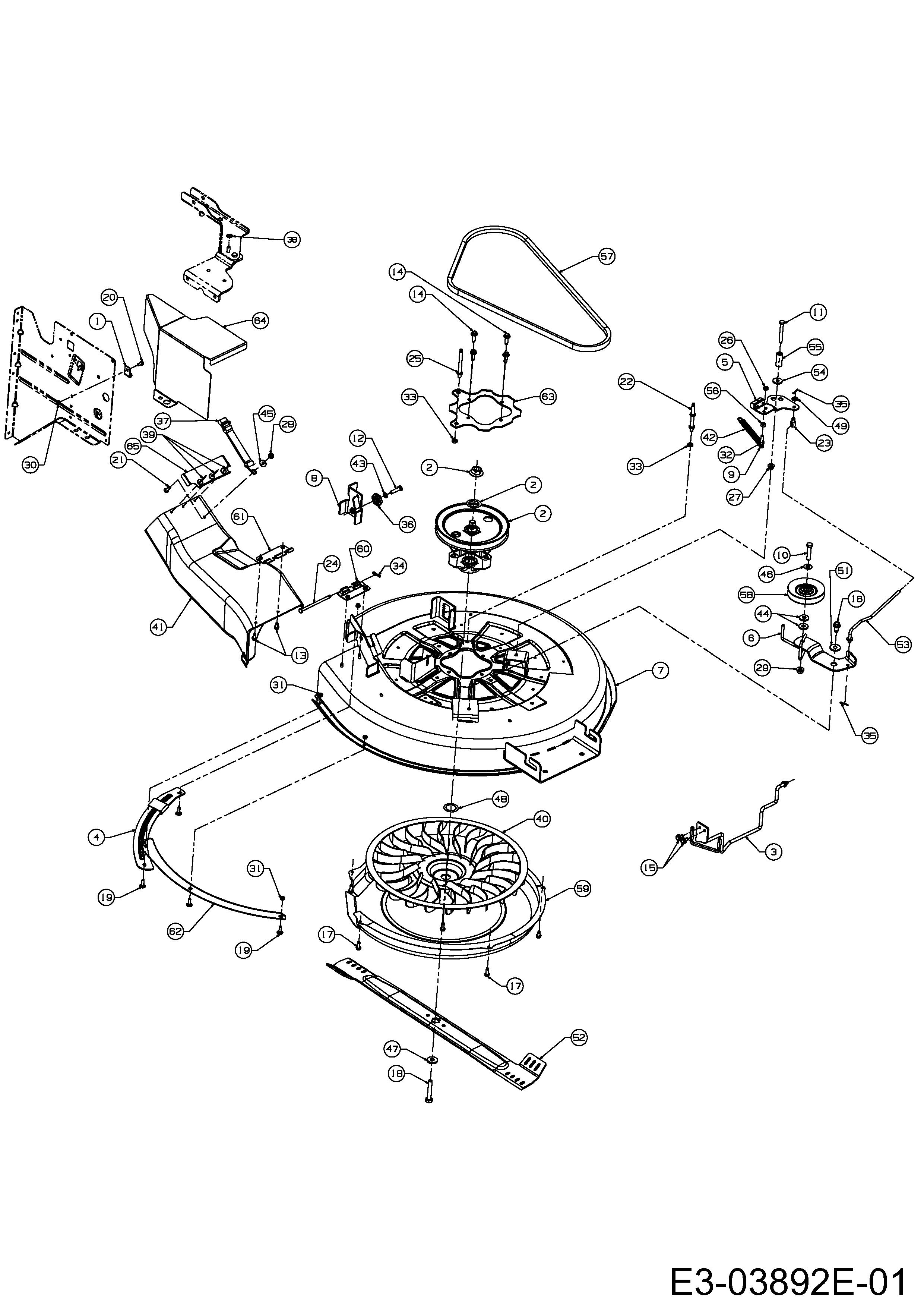

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-0139B	SPINDLE ASSY	£190.32	Add
003	647-04148A-Z	ROD ASM:FR:30IN 647-04148A	£27.42	Add
004	683-0215A	BRKT ASM:DIS:CHUT	N/A	POA
005	983-04409	BRAKE ASM:DECK:30IN	£21.98	Add
006	683-04446B-Z	FINISH:PEC-100015	£39.84	Add
007	683-04459-WR	DECK PAN WOLF RED	£464.88	Add
008	683-04460	BRKT ASM:DECK	N/A	POA
009	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
010	710-0347	HEX SCR	£3.72	Add
011	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
012	710-0528	SCREW (DNR)	£3.55	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
015	710-0607	SELF TAP SCREW	£4.71	Add
016	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
017	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
018	710-1382	SCREW	£3.51	Add
019	710-1687	BOLT	£3.26	Add
020	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
021	710-3015	SCREW HEX CAP	£3.33	Add
022	711-05322	PIN:BELT GUARD:.31x3.06 LG	£15.15	Add
023	711-0736	FERRULE-ADJ:1/4-20 x 1.00	£15.86	Add
024	711-1054	PIN	£7.09	Add
025	711-1065	PIN:BELT GUARD:.31 x 3.06 LG	£8.10	Add
026	712-0291	LOCK-NUT	£2.77	Add
027	712-04063	FLANGED NUT	£4.20	Add
028	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
029	712-04065	NUT	£4.02	Add
030	712-0633	NUT:HEXLK:M6-1 DIN 980	£3.49	Add
031	712-0691	HEX NUT M6 DIN 985	£2.66	Add
032	712-3006	NUT	£2.77	Add
033	712-3046	Nut, Hex Jam 5/16-18 Thd.	£3.33	Add
034	714-0104	PIN INTERNAL COTTER	£2.78	Add
035	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
036	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
037	723-0383	STRAP ASSY-RETAINER	£9.93	Add
038	726-0201	SPEED NUT	£3.10	Add
039	728-0287	RIVET:ALU:BLACK:ELOX:4.8X10.0	£4.00	Add
040	731-1583	DECK FAN	£95.83	Add
041	731-1605F	CHUT:RR:DIS	£116.84	Add
042	732-0604A	SPR:EXT: .56 DIA x 5.52 LG	£17.65	Add
043	736-0119	LOCK WASHER 5/16	£3.33	Add
044	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
045	736-0270	BELL WASHER	£3.91	Add
046	736-0300	WASHER	£2.81	Add
047	736-0684	WASH:BELL:10.5 DIN 6340	£2.86	Add
048	736-0693	SHIM WASHER	£4.85	Add
049	736-0700	FLAT WASHER	£2.63	Add
051	738-0347	SPACER	£4.16	Add
052	742-04058	BLADE 30 INCHES	£64.49	Add
053	747-04912	ROD:LINK:BRAKE	£24.20	Add
054	748-0234	SHOULDER SPACER	£5.43	Add
055	750-04993	SPCR:.322 x.625 x 1.5"	£4.80	Add
056	750-05381	SPCR:.254 ID x.500 OD x.275	£4.70	Add
057	754-04190	DECK BELT	£57.19	Add
058	756-0487	PULLEY	£37.22	Add
059	783-0289637	SHROUD FAN 30 INCH DECK BLACK	£83.93	Add
060	783-0291ZW	TOP HINGE (BLUE)	£12.43	Add
061	783-0292	BRKT:DECK CHUTE PIVOT	£8.47	Add
062	783-0301637	SKIRT-DECK 30 INCH RD	£43.96	Add
063	753-0571637	PLT:REINF:30" RD DECK (OBSOLETE) (OBSOLETE)	N/A
064	783-05993B-S	CVR:TRANS:REAR:A/C DECK	£48.76	Add
065	783-06154A	BRKT:EXT:CHUTE	N/A	POA
