MTD009787

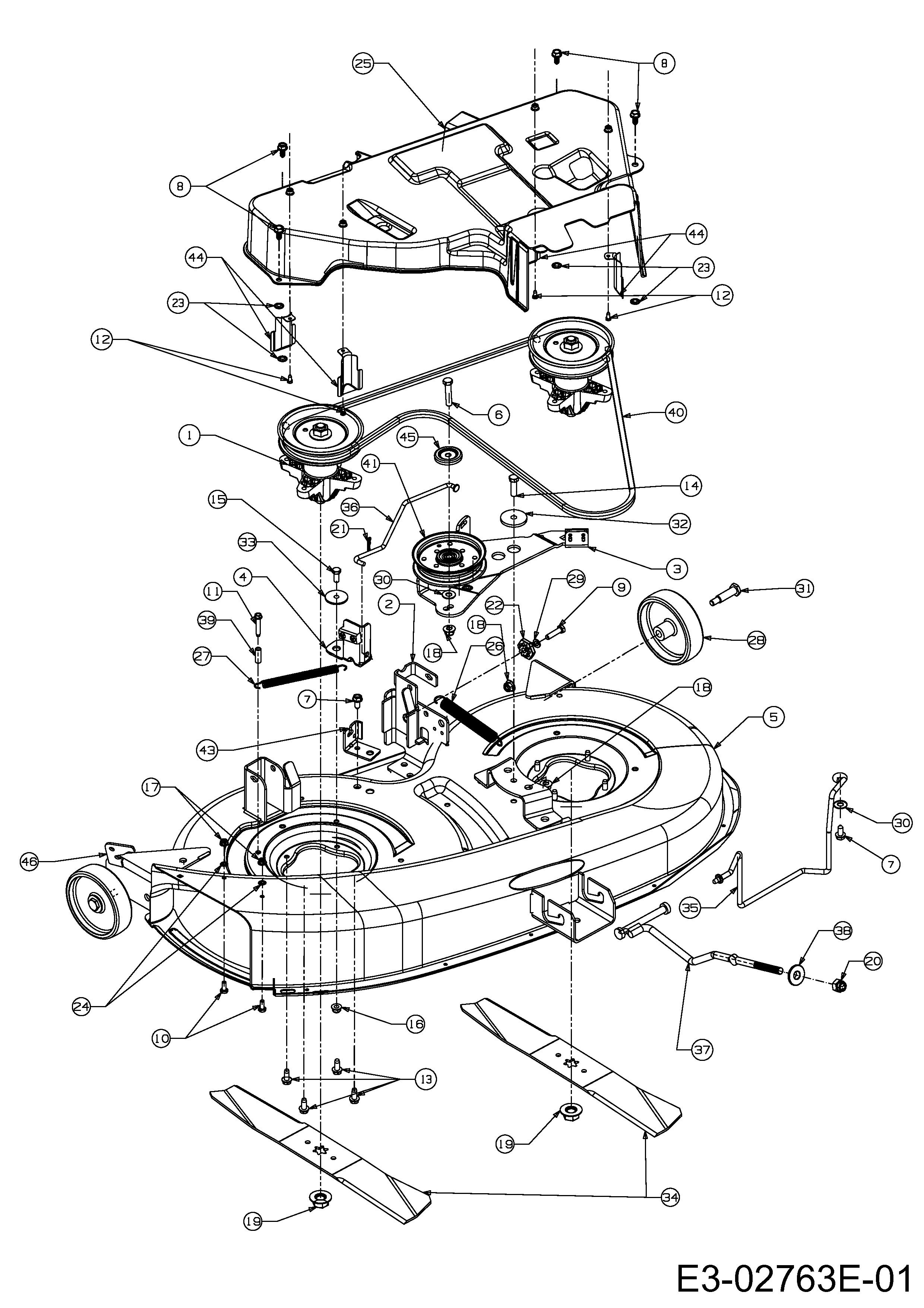

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009787

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04474B SPINDLE 5.75 INCH DIA £132.96 Add
002 683-0254B BRKT:ASM:DECK:HNGR LH LT (OBSOLETE) N/A
003 683-04138B BRAKE ASM:DECK:42" £40.90 Add
004 983-04167 BRAKE ASM:DECK 42" 683-04167 £23.95 Add
005 683-04264C-S DECK PAN 38 INCH BLACK £556.92 Add
006 710-0347 HEX SCR £3.72 Add
007 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
008 710-05045A SCR:TT:5/16-18:.750:HXINDWSH £6.24 Add
009 710-0528 SCREW (DNR) £3.55 Add
010 710-0751 BOLT 069 £3.39 Add
011 710-0778 HEX WASHER HEAD SCREW £3.20 Add
012 710-0919 SCREW TAPP £3.07 Add
013 710-1260A SCREW £4.00 Add
014 710-3005 BOLT £3.24 Add
015 710-3008 HEX BOLT £3.03 Add
016 712-04063 FLANGED NUT £4.20 Add
017 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
018 712-04065 NUT £4.02 Add
019 712-05134 BLADE NUT £3.81 Add
020 712-04243 NUT £5.00 Add
021 714-04040 PIN-COTTER £4.38 Add
022 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
023 726-0201 SPEED NUT £3.10 Add
024 726-0233 NUT:PUSH:.25 ID X .50 OD £3.58 Add
025 731-05699B CVR:DECK:38" EXPORT N/A POA
026 732-04280B EXT SPRING £18.09 Add
027 732-04287 EXT SPRING £16.41 Add
028 734-0973 WHEEL DECK 5in. DIA £11.16 Add
029 736-0119 LOCK WASHER 5/16 £3.33 Add
030 736-0300 WASHER £2.81 Add
031 738-0373 AXLE BOLT £6.84 Add
032 738-04162C SPACER £4.64 Add
033 738-04166 SPACER £5.21 Add
034 742-0675-637 BLADE 19.38"LG 742-0675 £45.02 Add
035 747-04332A ROD:KEEPR:BELT 38" N/A POA
036 747-04381 BRAKE ROD 38" £18.78 Add
037 747-04875 HGR:FRNT:38" £55.73 Add
038 748-04069 PIVOT CUP £4.12 Add
039 750-0566A SPACER £7.75 Add
040 754-04062 BELT £66.33 Add
041 753-08171 KIT IDLER PULLEY £37.57 Add
042 771-11725A TAG:DNGR:RT-99 CHUTE BLNGL N/A POA
043 783-04740 BRKT:CBL:DECK ENGAGE (OBSOLETE) N/A
044 783-05497 BRKT:KEEPR:BELT £24.51 Add
045 783-07236 PULLEY CAP £10.42 Add
046 783-1025 STOP:CHUTE £7.30 Add
