MTD009786

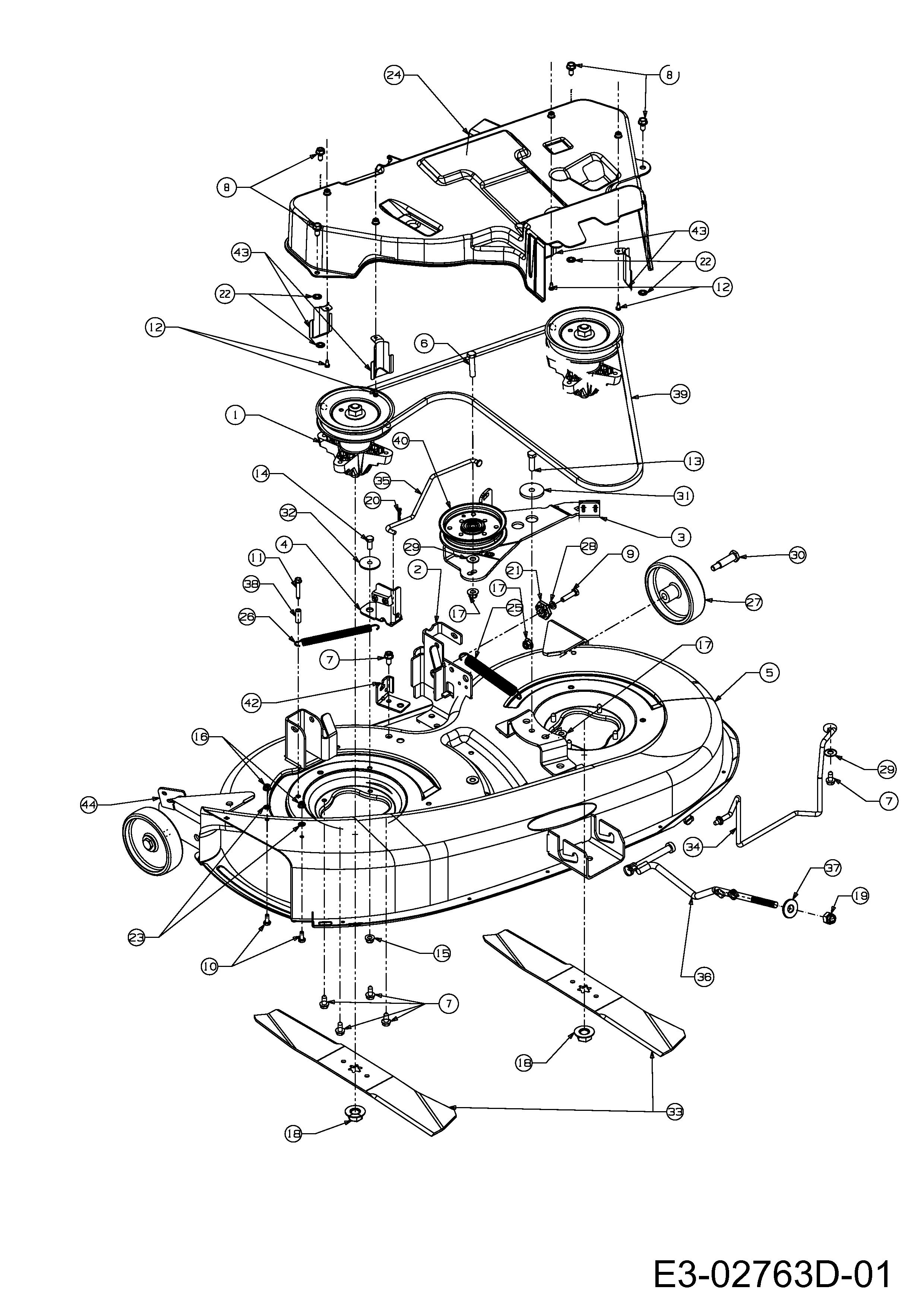

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009786

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04474B SPINDLE 5.75 INCH DIA £132.96 Add
002 683-0254B BRKT:ASM:DECK:HNGR LH LT (OBSOLETE) N/A
003 683-04138B BRAKE ASM:DECK:42" £40.90 Add
004 983-04167 BRAKE ASM:DECK 42" 683-04167 £23.95 Add
005 683-04264C-S DECK PAN 38 INCH BLACK £556.92 Add
006 710-0347 HEX SCR £3.72 Add
007 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
008 710-05045A SCR:TT:5/16-18:.750:HXINDWSH £6.24 Add
009 710-0528 SCREW (DNR) £3.55 Add
010 710-0751 BOLT 069 £3.39 Add
011 710-0778 HEX WASHER HEAD SCREW £3.20 Add
012 710-0919 SCREW TAPP £3.07 Add
013 710-3005 BOLT £3.24 Add
014 710-3008 HEX BOLT £3.03 Add
015 712-04063 FLANGED NUT £4.20 Add
016 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
017 712-04065 NUT £4.02 Add
018 712-05134 BLADE NUT £3.81 Add
019 712-04243 NUT £5.00 Add
020 714-0104 PIN INTERNAL COTTER £2.78 Add
021 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
022 726-0201 SPEED NUT £3.10 Add
023 726-0233 NUT:PUSH:.25 ID X .50 OD £3.58 Add
024 731-05699B CVR:DECK:38" EXPORT N/A POA
025 732-04280B EXT SPRING £18.09 Add
026 732-04287 EXT SPRING £16.41 Add
027 734-0973 WHEEL DECK 5in. DIA £11.16 Add
028 736-0119 LOCK WASHER 5/16 £3.33 Add
029 736-0300 WASHER £2.81 Add
030 738-0373 AXLE BOLT £6.84 Add
031 738-04162C SPACER £4.64 Add
032 738-04166 SPACER £5.21 Add
033 742-0675-637 BLADE 19.38"LG 742-0675 £45.02 Add
034 747-04332A ROD:KEEPR:BELT 38" N/A POA
035 747-04381 BRAKE ROD 38" £18.78 Add
036 747-04875 HGR:FRNT:38" £55.73 Add
037 748-04069 PIVOT CUP £4.12 Add
038 750-0566A SPACER £7.75 Add
039 754-04062 BELT £66.33 Add
040 753-08171 KIT IDLER PULLEY £37.57 Add
042 783-04740 BRKT:CBL:DECK ENGAGE (OBSOLETE) N/A
043 783-05497-Z BRKT:KEEPR:BELT:ZINC PLATED £24.51 Add
044 783-1025 STOP:CHUTE £7.30 Add
