MTD013799

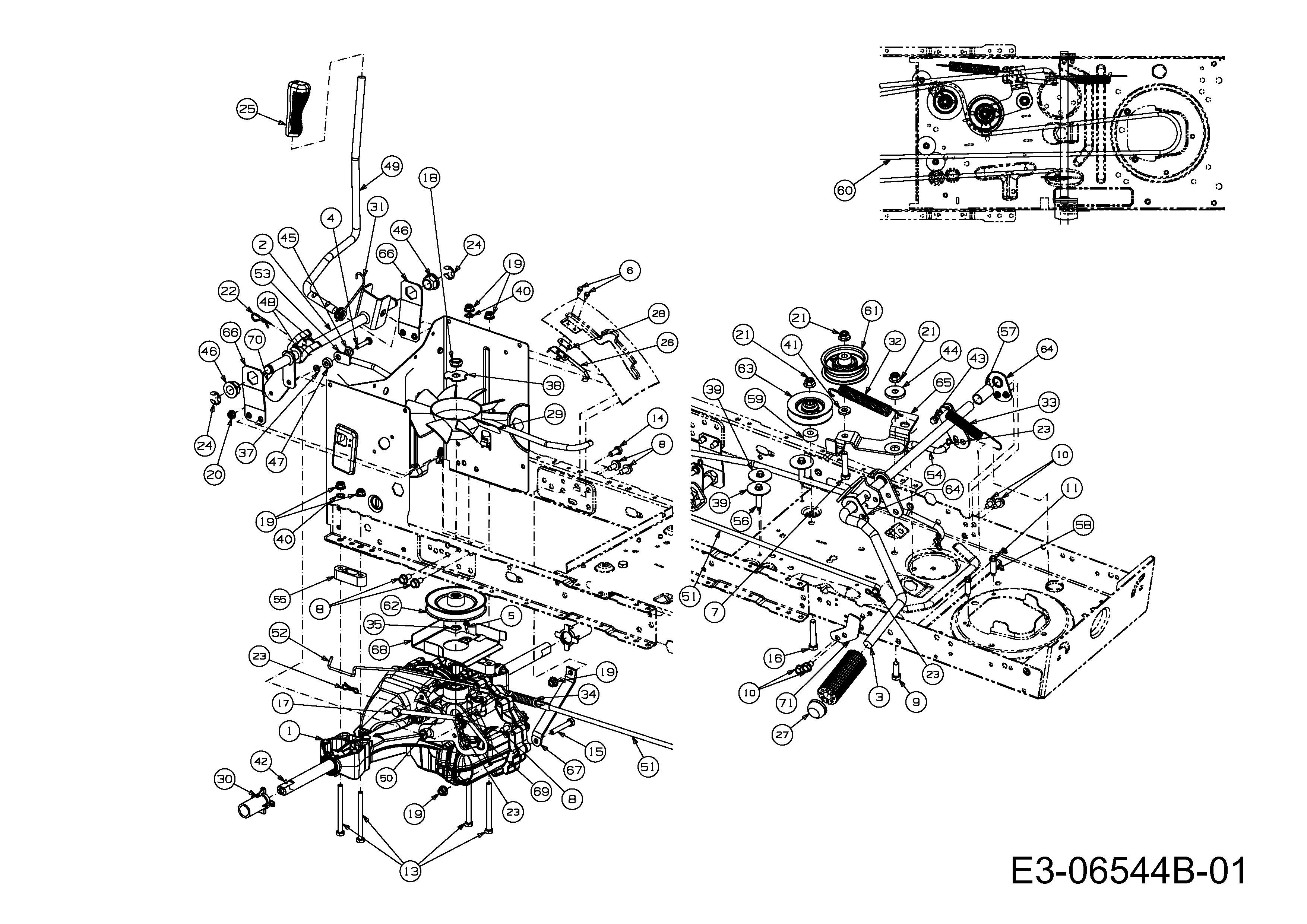

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04892B	TRANS:HYDRO:T2 HP FRICTION	£605.96	Add
002	647-04200A		N/A	POA
003	647-04261		N/A	POA
004	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
005	710-0224	NO LONGER AVAILABLE	N/A	POA
006	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-0514	HEX BOLT	£3.81	Add
010	710-0604A	SCREW	£3.62	Add
011	710-0809	SCR:TT:1/4-20:1.250:HXINDWSH	£3.42	Add
012	710-1026	SCREW	£3.91	Add
013	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
014	710-3008	HEX BOLT	£3.03	Add
015	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
016	710-3144	SCREW	£3.28	Add
017	711-04448	FRL:5/16-24 x .312 DIA	£5.50	Add
018	712-0346	NO LONGER AVAILABLE	N/A	POA
019	712-04063	FLANGED NUT	£4.20	Add
020	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
021	712-04065	NUT	£4.02	Add
022	714-0145	R CLIP	£2.78	Add
023	714-04040	PIN-COTTER	£4.38	Add
024	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
025	720-0311	KNOB	£20.43	Add
026	725-04249	SPRING SWITCH HYDRO	£7.22	Add
027	726-0214	PUSH CAP	£5.36	Add
028	726-0320	INSULATING PLATE	£2.97	Add
029	731-06098	FAN:HYDRO:LT	£21.68	Add
030	731-08237	SLEV:.765 ID x 2.11 LONG	£6.96	Add
031	732-04225	SPR: TORSION:.290 ID X 1.95	£8.27	Add
032	732-04229	SPR:EXT:.75 DIA x 6.02	£14.35	Add
033	732-04587	SPR:EXTN:.63 DIA x 4.95 LG	£18.44	Add
034	732-0716D	SPRING EXTENSION	£14.42	Add
035	732-0729	CIRCLIP	£2.98	Add
036	735-0239A	FOOT PAD	£8.75	Add
037	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add
038	736-04263	WASHER:LOCK:TRANS HYDRO	£5.62	Add
039	736-0430	WASHER	£4.22	Add
040	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
041	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
043	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
044	738-04430	SPCR:SHLDR:1.375 x.380 x.154	£4.50	Add
045	738-04483	SPCR:SHLDR:.375X.625X.20	£5.00	Add
046	741-0225	HEX FLANGE BEARING	£4.92	Add
047	741-04280	BRG:BALL:.25x.6875x.25:DS	£11.43	Add
048	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add
049	747-04296A	HNDL:CONT:HYDRO	£28.53	Add
050	747-04407A	ROD:CONT:HYDRO	£16.85	Add
051	747-05242	ROD:BRAKE:LT-5:HYDRO T2	£20.87	Add
052	747-05245	ROD:HYDRO:BYPASS	£16.85	Add
053	747-05598		N/A	POA
054	747-05603	ROD:DECLUTCHING:HYDRO	£15.95	Add
055	748-0334	TRANSAXLE SPACER .68	£6.32	Add
056	750-04456	SPACER	£5.75	Add
057	750-05593	SPCR:.640 ID x .78 OD x 1.58	£4.91	Add
058	750-0566A	SPACER	£7.75	Add
059	750-3119	SPACER	£13.99	Add
060	754-04252	V BELT	£77.05	Add
061	756-04224	IDLER PULLEY	£28.15	Add
062	756-04308	PULLEY:INPUT:4.13 DIA	£43.19	Add
063	756-04325	PULLEY	£35.65	Add
064	783-04536B-S	BRKT:PED:SUPT: LT-5	£14.02	Add
065	783-04570B	ARM:IDLER:LT-5 HYDRO	£16.96	Add
066	783-04585A	BRKT:MT:HYDRO HNDL	N/A	POA
067	783-06551	BRKT:TORQ:HYDRO T2:4.2 IN	N/A	POA
068	783-06558	BRKT:SUPT:BELT:T2	N/A	POA
069	783-06750A		N/A	POA
070	783-06756		N/A	POA
071	783-06807		N/A	POA
