MTD009792

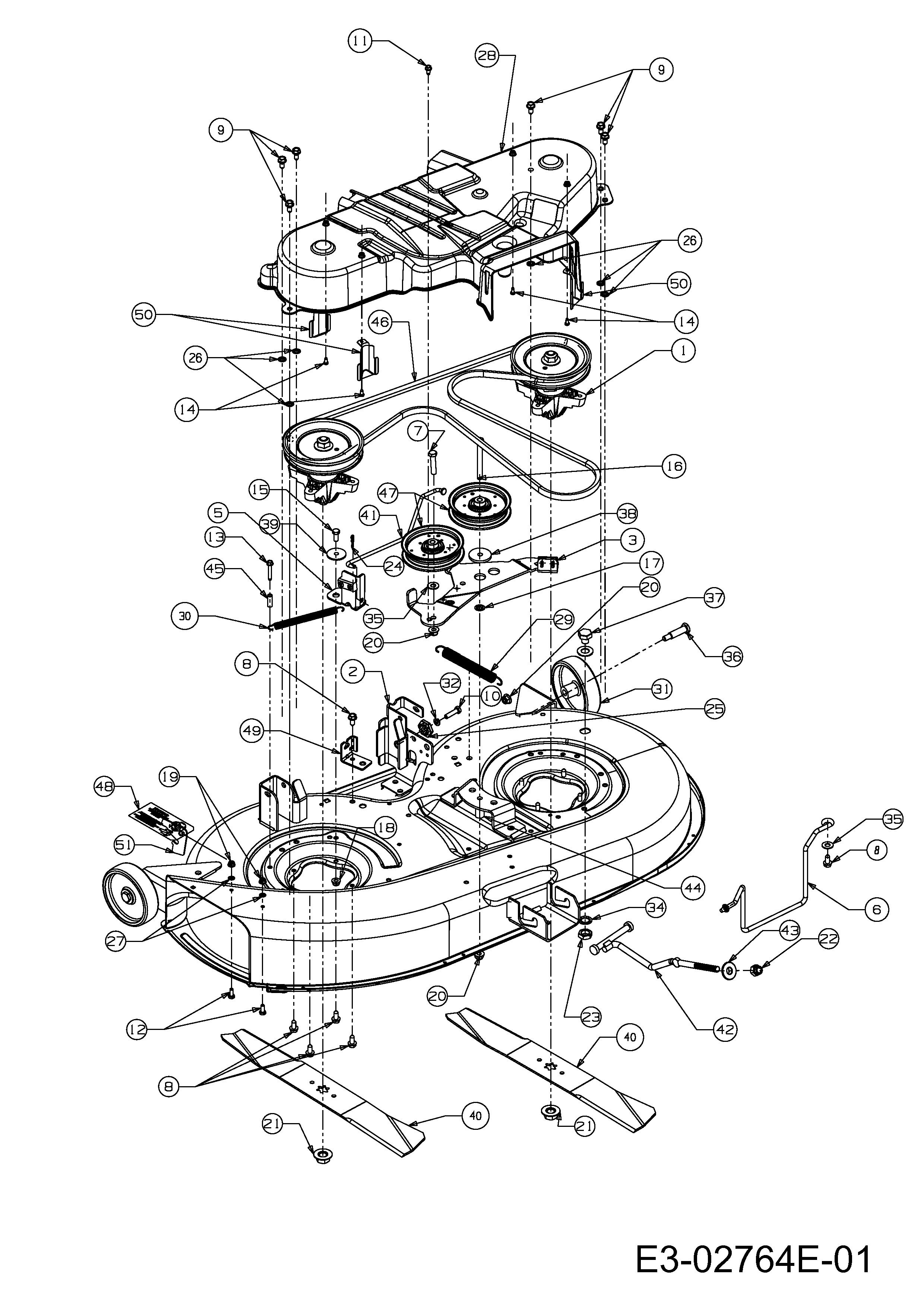

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009792

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04456B SPINDLE ASSY PULLEY 6.3 DIA £131.19 Add
002 683-0254B BRKT:ASM:DECK:HNGR LH LT (OBSOLETE) N/A
003 683-04138B BRAKE ASM:DECK:42" £40.90 Add
004 683-04162A-S DECK ASM:SD 42" W/WHL BRKT £470.43 Add
005 983-04167 BRAKE ASM:DECK 42" 683-04167 £23.95 Add
006 747-04857 ROD:KEEPR:BELT 42" 747-04307 £26.41 Add
007 710-0347 HEX SCR £3.72 Add
008 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
009 710-05045A SCR:TT:5/16-18:.750:HXINDWSH £6.24 Add
010 710-0528 SCREW (DNR) £3.55 Add
011 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
012 710-0751 BOLT 069 £3.39 Add
013 710-0778 HEX WASHER HEAD SCREW £3.20 Add
014 710-0919 SCREW TAPP £3.07 Add
015 710-3008 HEX BOLT £3.03 Add
016 710-3085 HHCS 3/8 16 3.50 GR5 STD £3.55 Add
017 712-0229 NUT PUSH £5.20 Add
018 712-04063 FLANGED NUT £4.20 Add
019 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
020 712-04065 NUT £4.02 Add
021 712-05134 BLADE NUT £3.81 Add
022 712-04243 NUT £5.00 Add
023 712-0641 NUT £6.47 Add
024 714-0104 PIN INTERNAL COTTER £2.78 Add
025 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
026 726-0201 SPEED NUT £3.10 Add
027 726-0233 NUT:PUSH:.25 ID X .50 OD £3.58 Add
028 731-05657B COVER £36.79 Add
029 732-04280B EXT SPRING £18.09 Add
030 732-04287 EXT SPRING £16.41 Add
031 734-0973 WHEEL DECK 5in. DIA £11.16 Add
032 736-0119 LOCK WASHER 5/16 £3.33 Add
033 736-0187 FLAT WASHER £3.19 Add
034 736-0225 WASHER (RED) £5.32 Add
035 736-0300 WASHER £2.81 Add
036 738-0373 AXLE BOLT £6.84 Add
037 738-04146 PLUG:BOLT:M16 X 1.5 £8.94 Add
038 738-04162C SPACER £4.64 Add
039 738-04166 SPACER £5.21 Add
040 742-0674-637 BLADE 21.20"LG STAR LOW BLACK £55.23 Add
041 747-04379A BRAKE ROD £25.27 Add
042 747-04882 ROD DECK FRONT ADJUSTER £37.88 Add
043 748-04069 PIVOT CUP £4.12 Add
044 750-04446 SPCR:3/8 ID x.68 OD x 1.46 LG £7.37 Add
045 750-0566A SPACER £7.75 Add
046 754-04060C BELT £62.72 Add
047 753-08171 KIT IDLER PULLEY £37.57 Add
048 771-11725A TAG:DNGR:RT-99 CHUTE BLNGL N/A POA
049 783-04740 BRKT:CBL:DECK ENGAGE (OBSOLETE) N/A
050 783-05497-Z BRKT:KEEPR:BELT:ZINC PLATED £24.51 Add
051 783-1025 STOP:CHUTE £7.30 Add
