MTD017891

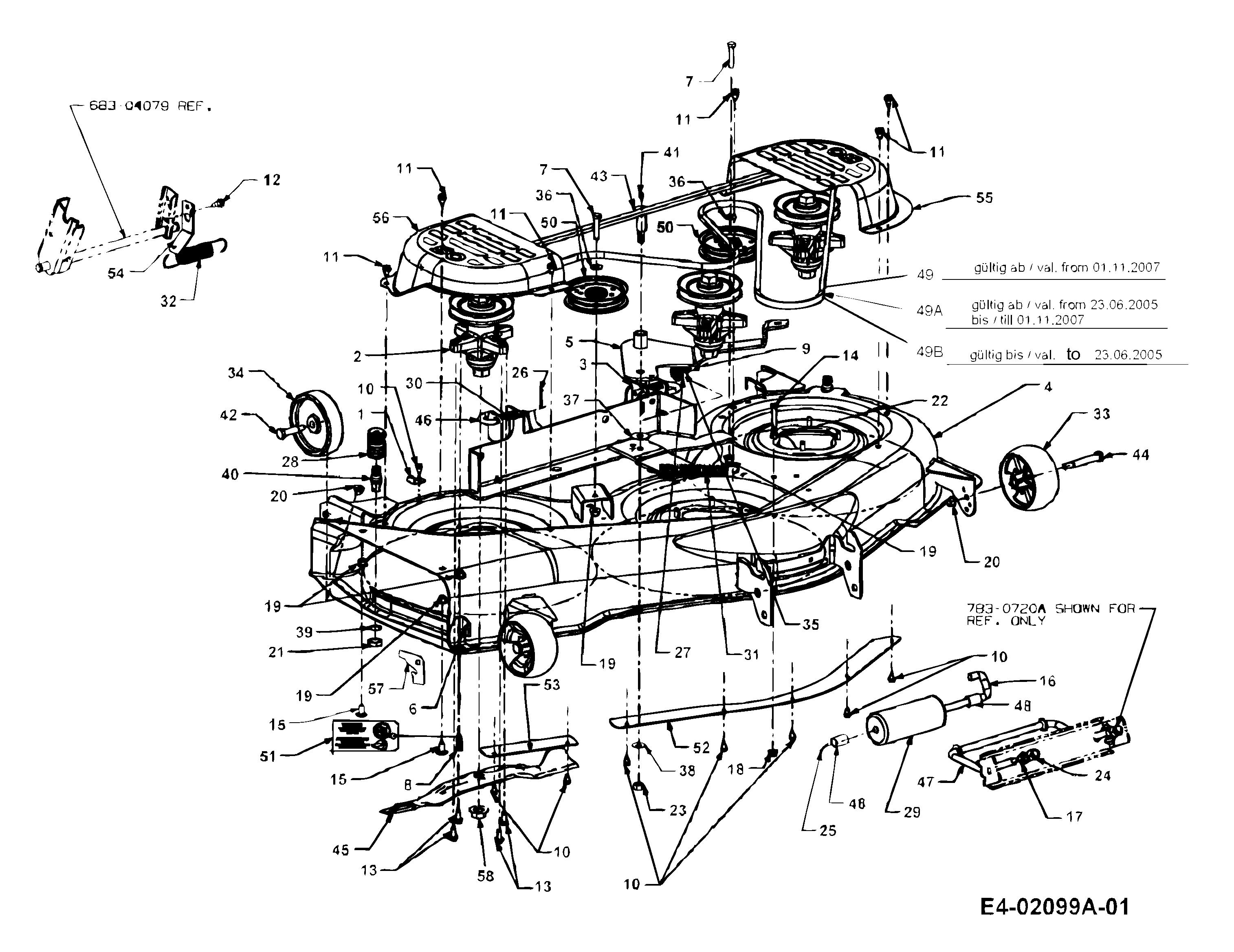

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	618-04129B	SPINDLE ASM-BLADE W/PULY	£225.14	Add
003	683-0254B637	BRKT:ASM:DECK:HNGR LH LT BLACK	£30.23	Add
004	683-04109B	DECK ASM-50" (OBSOLETE)	N/A
005	683-04239	NO LONGER AVAILABLE	N/A	POA
006	703-3279	STOP:CHUT:DFL	£27.80	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-04095	SCREW HEX CAP	£8.34	Add
009	710-0528	SCREW (DNR)	£3.55	Add
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	710-0607	SELF TAP SCREW	£4.71	Add
012	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
013	710-1260A	SCREW	£4.00	Add
014	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
015	710-3178	BOLT SHORT NECK CARR	£11.46	Add
016	711-1737	PIN FOR ROLLER	£21.06	Add
017	712-0206	NUT	£3.42	Add
018	712-04063	FLANGED NUT	£4.20	Add
019	712-04065	NUT	£4.02	Add
020	712-0431	NUT	£3.20	Add
021	712-0641	NUT	£6.47	Add
022	712-3010	NUT 5/16 x 18	£2.77	Add
023	712-3019	NUT	£14.44	Add
024	712-3083	NUT	£2.79	Add
025	714-0111	COTTER PIN	£3.20	Add
026	714-0470	COTTER PIN	£5.07	Add
027	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
028	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
029	731-3005	ROLLER	£42.43	Add
030	732-0306A	SPACER	£5.28	Add
031	732-0459C	EXTENSION SPRING	£18.91	Add
032	732-0934	SPR:EXTN:1.15 OD x 5.99 LG	£17.69	Add
033	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
034	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
035	736-0119	LOCK WASHER 5/16	£3.33	Add
036	736-0300	WASHER	£2.81	Add
037	736-0406	WASH:F:.442 IDX 1.38 ODX.060HT	£3.39	Add
038	736-0407	WASHER	£11.84	Add
039	736-0760	WASHER	£4.01	Add
040	737-04003D	NOZ:DECK:WATER	£19.14	Add
041	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
042	738-0373	AXLE BOLT	£6.84	Add
043	638-04012A	BOLT	£17.98	Add
044	738-3056	SHOULDER BOLT	£12.94	Add
045	742-04068C	BLADE	£40.81	Add
046	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
047	747-1324	ROD-DECK FRONT ADJUSTER .5"DIA 54"GT	£38.09	Add
048	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
049	754-04168	BELT-V A SEC X 132.28	£173.74	Add
050	753-08171	KIT IDLER PULLEY	£37.57	Add
051	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
052	783-04414A-S	SKIRT-CENTER 50" DECK	£38.54	Add
053	783-04415	SKIRT:RH:50"	N/A	POA
054	783-04462	BRACKET	£26.20	Add
055	783-05280	BUMPER COVER	N/A	POA
056	783-05281	COVER	N/A	POA
057	783-1025	STOP:CHUTE	£7.30	Add
058	712-05134	BLADE NUT	£3.81	Add
49A	754-04107	BELT (GT1224) 50 INCH DECK	£103.76	Add
49B	754-04077A	BELT	£113.45	Add
