MTD014014

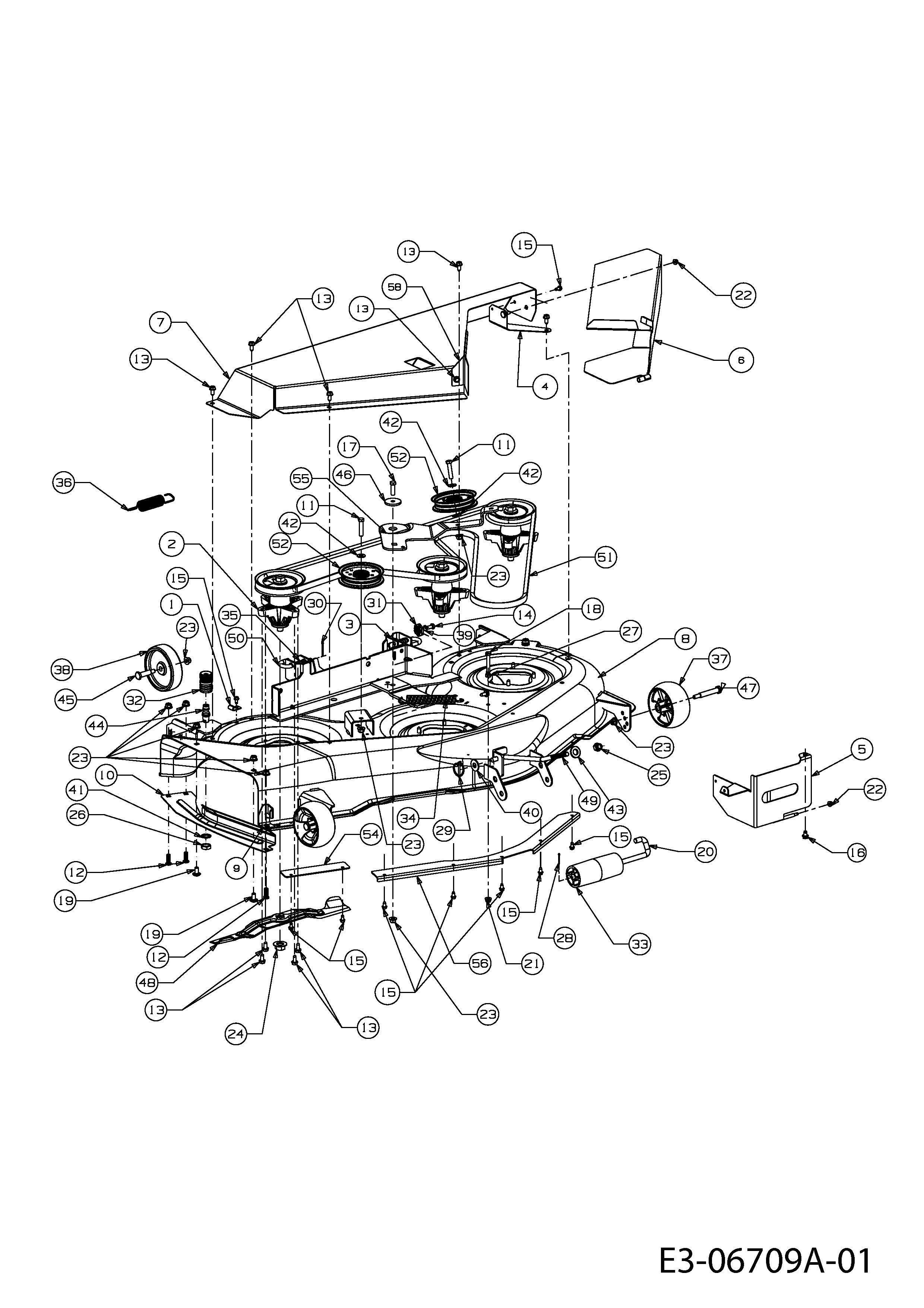

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04540-CY	BRACKET CUB YELLOW	£53.25	Add
005	683-04541	CVR ASM:PTO:CE	N/A	POA
006	683-04624-CY	COVER LH SIDE CUB YELLOW (OBSOLETE) (OBSOLETE)	N/A
007	683-04631-CY	COVER RH SIDE	£152.72	Add
008	683-04644		N/A	POA
009	703-3279	STOP:CHUT:DFL	£27.80	Add
010	703-3511B637	GUARD BLACK	£30.09	Add
011	710-0347	HEX SCR	£3.72	Add
012	710-04095	SCREW HEX CAP	£8.34	Add
013	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
014	710-0528	SCREW (DNR)	£3.55	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-0607	SELF TAP SCREW	£4.71	Add
017	710-3005	BOLT	£3.24	Add
018	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
019	710-3178	BOLT SHORT NECK CARR	£11.46	Add
020	711-3314	PIN, ROLLER	£33.00	Add
021	712-04063	FLANGED NUT	£4.20	Add
022	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
023	712-04065	NUT	£4.02	Add
024	712-05134	BLADE NUT	£3.81	Add
025	712-04243	NUT	£5.00	Add
026	712-0641	NUT	£6.47	Add
027	712-3010	NUT 5/16 x 18	£2.77	Add
028	714-0111	COTTER PIN	£3.20	Add
029	714-0220A	PIN:LYNCH:.1875	£7.99	Add
030	714-0470	COTTER PIN	£5.07	Add
031	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
032	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
033	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
034	732-0459C	EXTENSION SPRING	£18.91	Add
035	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
036	732-0934	SPR:EXTN:1.15 OD x 5.99 LG	£17.69	Add
037	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
038	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
039	736-0119	LOCK WASHER 5/16	£3.33	Add
040	736-0179	WASHER-FL	£14.34	Add
041	736-0225	WASHER (RED)	£5.32	Add
042	736-0300	WASHER	£2.81	Add
043	736-0317	BELLE WASHER	£8.58	Add
044	737-04003D	NOZ:DECK:WATER	£19.14	Add
045	738-0373	AXLE BOLT	£6.84	Add
046	738-04162C	SPACER	£4.64	Add
047	738-3056	SHOULDER BOLT	£12.94	Add
048	742-04053C	BLADE	£39.58	Add
049	747-05067A	ROD DECK FRONT LIFT 50" & 54"	£32.36	Add
050	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
051	754-04107	BELT (GT1224) 50 INCH DECK	£103.76	Add
052	753-08171	KIT IDLER PULLEY	£37.57	Add
054	783-04415	SKIRT:RH:50"	N/A	POA
055	783-05303	BRKT:IDLR:50 w/o SPACER	N/A	POA
056	783-05513	SKIRT:CNTR:50" EXPORT	£109.17	Add
058	783-06291	COVER BELT 50" DECK	£39.93	Add
