MTD015280

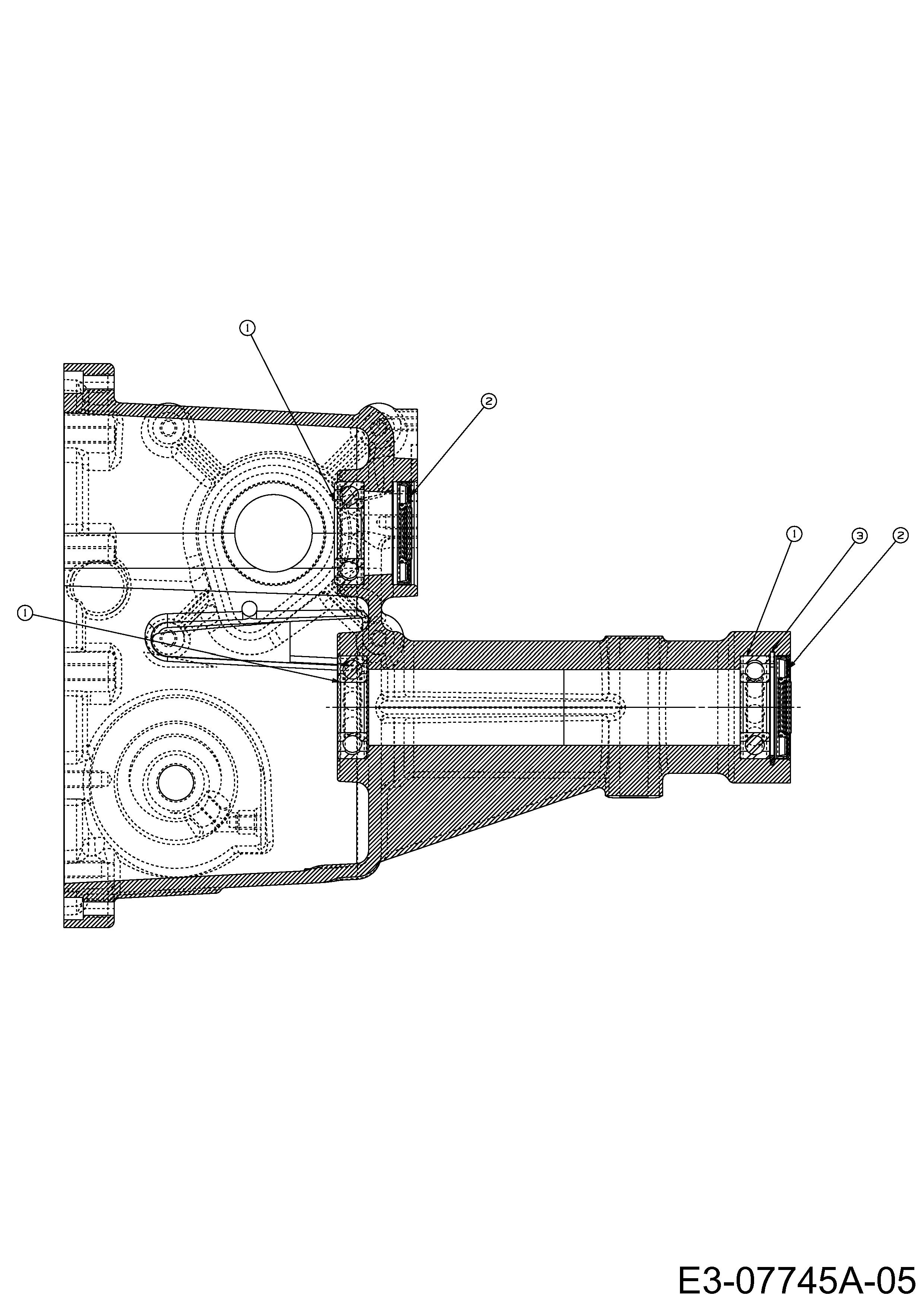

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD015280

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 741-3114 BALL BEARING £18.36 Add
002 721-0523 SHAFT SEAL £14.34 Add
003 716-0204 Circlip £18.36 Add
