MTD015266

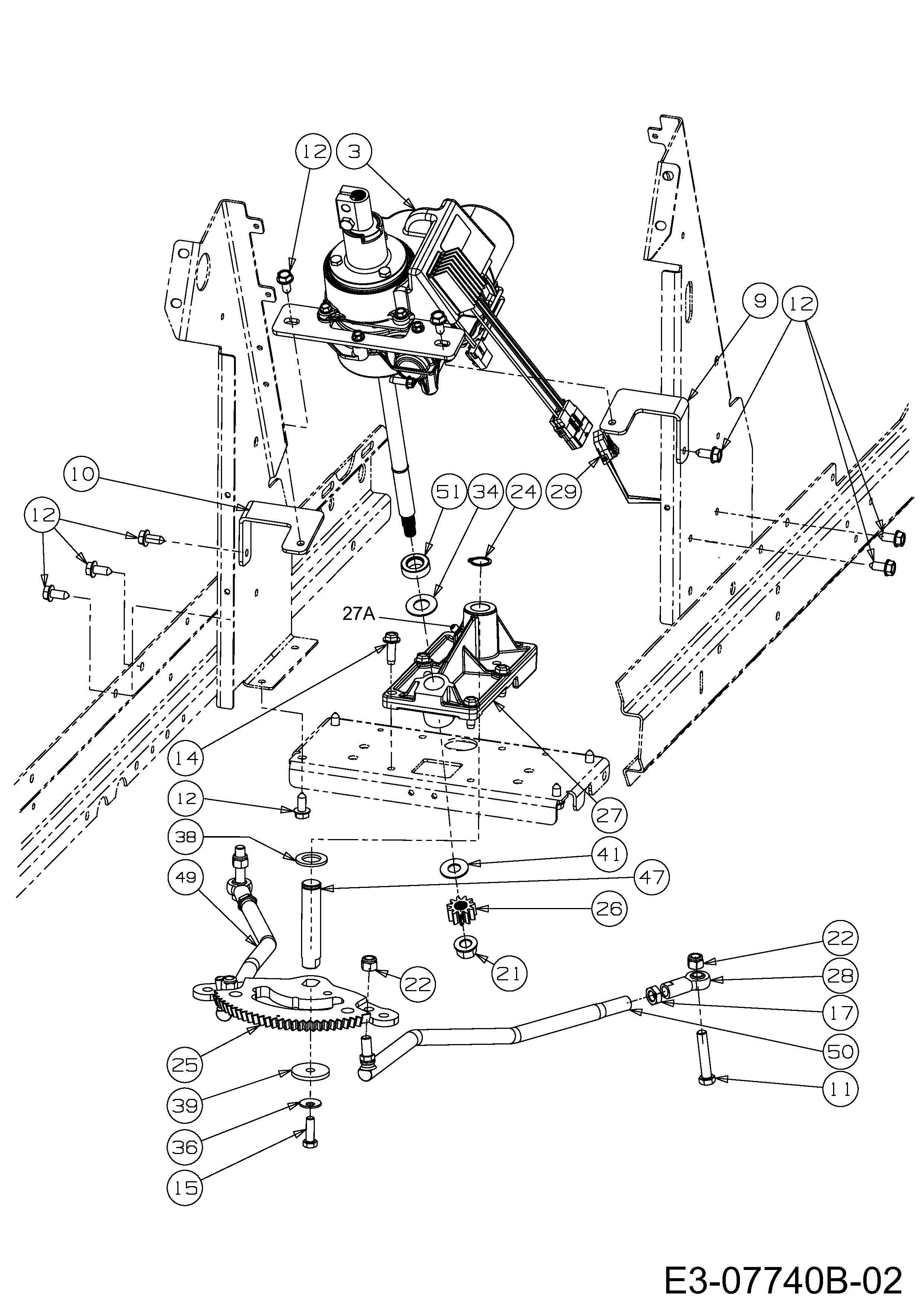

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04852B-S	BRACKET	N/A	POA
002	617-04096A	SHAFT ASM UPR STRG	£200.06	Add
003	618-05083A	TRANSMISSION ASM PWR STRG	£523.37	Add
004	631-04556	WHEEL-STEERING	N/A	POA
005	703-08105A-S	BRACKET	£39.07	Add
006	703-08114A-S	BRACKET TILT ENGAGE	£45.31	Add
007	703-08180637	BRACKET TILT STRG	£22.29	Add
008	703-08505	BRACKET DMPR CYL	£34.05	Add
009	703-08628637	BRACKET RH	£34.05	Add
010	703-08629		N/A	POA
011	710-0151	HHCS:3/8-24:2.00:GR5:SPEC	£4.84	Add
012	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
015	710-0643	BOLT	£3.85	Add
016	710-3083	NO LONGER AVAILABLE	N/A	POA
017	712-0240	NUT	£3.62	Add
018	712-04063	FLANGED NUT	£4.20	Add
019	712-04065	NUT	£4.02	Add
020	712-0431	NUT	£3.20	Add
021	712-0459	LOCK NUT	£4.59	Add
022	712-3061	NO LONGER AVAILABLE	N/A	POA
023	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
024	716-0101	RING-SNAP	£16.41	Add
025	717-04870A	SEGMENT ASSY,18T STEERING	N/A	POA
026	717-04943	GEAR STRG PINION	£60.55	Add
027	719-04756B		£161.47	Add
028	723-04089	ROD END DRAG LINK	£64.54	Add
029	725-06034		£106.01	Add
030	727-04320	CYLINDER DAMPER	£111.65	Add
031	731-04039	CAP:NO SPRIGG:SMALL	£4.87	Add
032	731-07815A	STEERING COLUMN	£33.54	Add
033	731-3224	LEVER:TILT	£34.35	Add
034	736-0187	FLAT WASHER	£3.19	Add
035	736-0204	F.I. WASHER	£3.59	Add
036	736-0242	BELL WASHER	£3.72	Add
037	736-0255	WASHER, BELL, .515 X 1.14 X .04 THK	£3.90	Add
038	736-04571	washer	£8.09	Add
039	736-0505	WASH:FLAT:.34 x 1.50 x .150:HT	£5.91	Add
040	736-0626	WASH:FLAT:.58 x 1.125 x .08:HT	£19.28	Add
041	736-3084	WASHER FLAT	£3.77	Add
043	738-0140	SHLD SCREW	£6.03	Add
044	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
045	738-04484	BOLT SHOULDER	£14.09	Add
046	738-04485		N/A	POA
047	738-04538	SHAFT STRG SEGMENT	£35.54	Add
048	741-0353	BUSHING	£13.64	Add
049	747-05424A	STEERING LINK LH	£63.15	Add
050	747-05425A	STEERING LINK RH	£71.73	Add
051	748-04269	SPACER SHIFT KEY	£19.68	Add
27A	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
