MTD017726

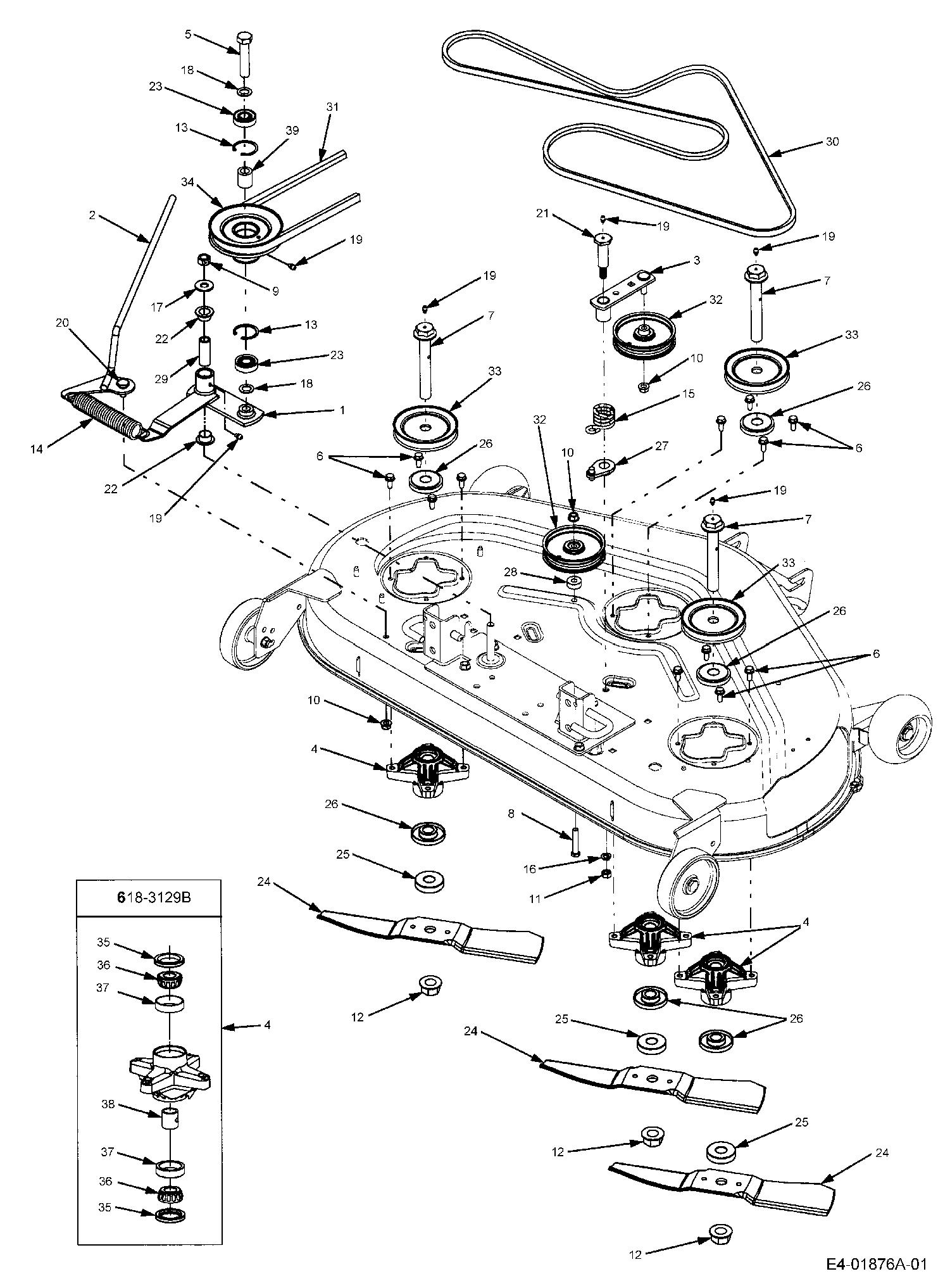

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-0857	TENSION ARM 603-0172	£141.79	Add
002	603-04113	HANDLE ASSEMBLY	N/A	POA
003	703-0118	BRACKET ASSY-IDLER	N/A	POA
004	618-3129C	SPINDLE, BLADE ASSY.	£216.30	Add
005	710-0923	SCREW 5/8-18:3.00	£24.10	Add
006	710-1260A	SCREW	£4.00	Add
007	710-1852	BOLT-HEX HD BLADE 3/4-16x5.37	£42.49	Add
008	710-3144	SCREW	£3.28	Add
009	712-0239	LOCK NUT	£12.14	Add
010	712-0431	NUT	£3.20	Add
011	712-3019	NUT	£14.44	Add
012	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
013	716-3020	RING-INTERNAL SNAP	£7.71	Add
014	732-0861	NO LONGER AVAILABLE	N/A	POA
015	732-3067	SPRING	£31.86	Add
016	736-0171	WASHER	£2.93	Add
017	736-0179	WASHER-FL	£14.34	Add
018	736-0237	WASHER FLAT CODE H150 AND AFTER	£11.48	Add
019	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
020	738-0143	SHOULDER BOLT	£12.24	Add
021	738-3172	BOLT SHOULDER	£25.85	Add
022	741-0338	FLANGE BEARING (OBSOLETE)	£7.81	Add
023	741-1122	BRG:BALL:.625x40x12:6203:SS	£47.36	Add
024	759-3939	BLADE	£88.07	Add
025	748-3020	SPACER	£23.00	Add
026	748-3065A	SPCR:SPDL:DECK	£14.96	Add
027	748-3100	RETAINER SPRING	£36.31	Add
028	750-3119	SPACER	£13.99	Add
029	750-3136	SPACER	£12.68	Add
030	754-3039	V-BELT	£130.78	Add
031	754-04041	BELT-PTO B SEC 111.2 B/M	£61.47	Add
032	756-3005	PULLEY	£84.18	Add
033	756-3089	V-PULLEY 4.0 DIA	£31.38	Add
034	756-3115	PULLY DOUBLE	£169.92	Add
035	721-3018A	SEAL-SINGLE LIP OIL	£13.74	Add
036	741-04089	BRG:CONE	£21.81	Add
037	741-04091	CUP-BEARING	£20.42	Add
038	750-04409	SPACER-BEARING .78 x 1.0	£19.88	Add
039	750-3132	BUSH	£10.20	Add
