MTD017859

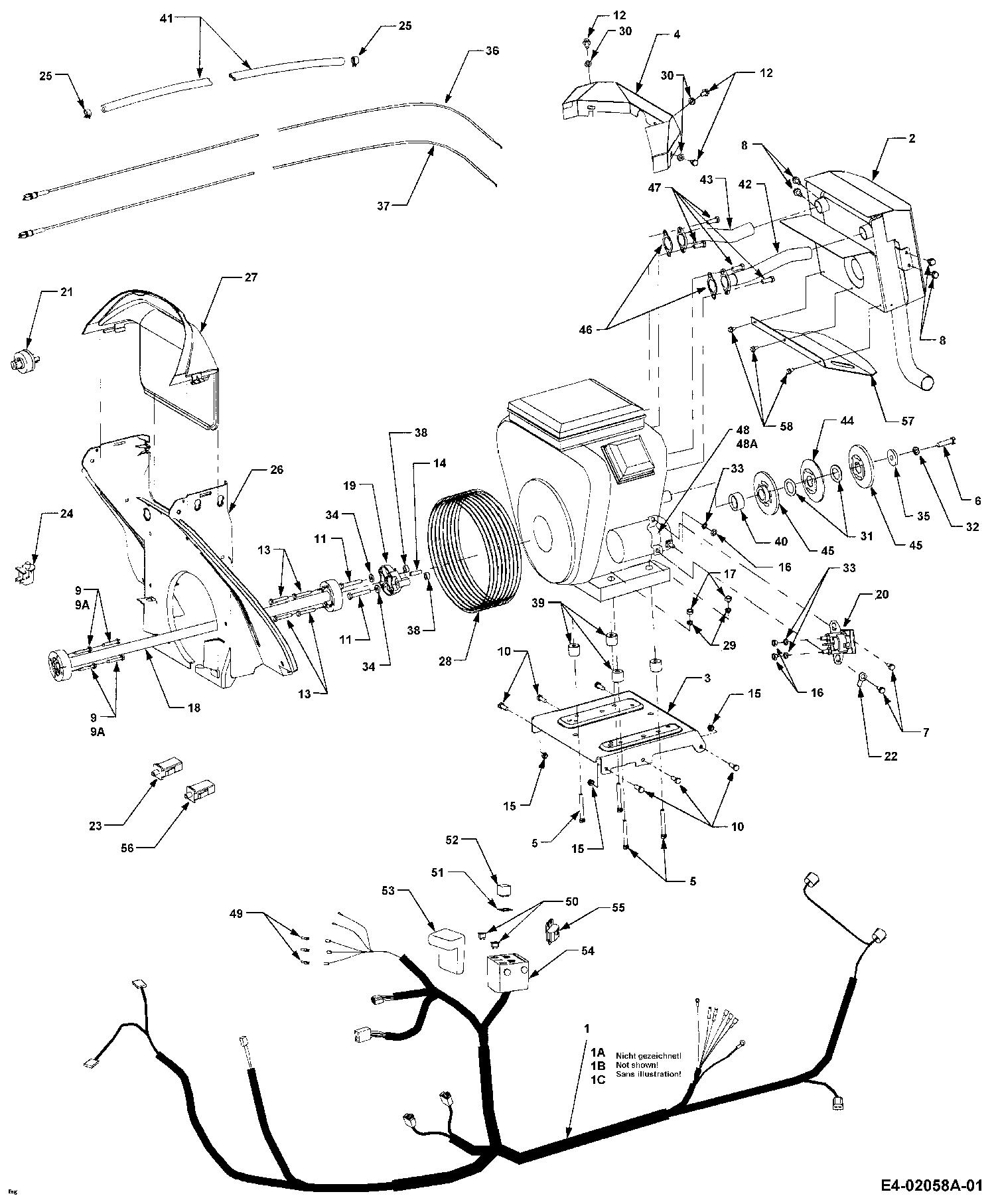

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	629-3047	WIRE HARNESS	N/A	POA
002	651-3003	EXHAUST	£235.75	Add
003	703-2909	GUIDE PLATE	£78.17	Add
004	703-2994	DUCT,HEAT SHIELD	N/A	POA
005	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
006	710-0459A	TIE ROD BOLT	£3.62	Add
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
008	710-0607	SELF TAP SCREW	£4.71	Add
009	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
010	710-3038	BOLT	£9.82	Add
011	710-3180	SCREW HEX CAP	£5.00	Add
012	710-3209	HHCS:M6-1.0:10MM:GR8.8:STD	£4.52	Add
013	710-3288	SCRE.HHCS:1/4-20:1.62:GR5:LOCK	£6.22	Add
014	711-3330	PIN	£13.30	Add
015	712-0429	NUT HEX.INS L NUT	£4.92	Add
016	712-3006	NUT	£2.77	Add
017	712-3010	NUT 5/16 x 18	£2.77	Add
018	718-3092	DRIVE SHAFT	£216.55	Add
019	719-3096	ADAPTER	£68.59	Add
01A	725-0157	NO LONGER AVAILABLE	N/A	POA
01B	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
01C	726-3055	CLIP-CABLE RETAINER	£3.34	Add
020	725-1426A	SOLENOID	£24.30	Add
021	725-1717	SWITCH, IGNITION	£40.31	Add
022	725-3147	CLAMP,CABLE	£3.69	Add
023	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
024	725-3167	SW:MT:SNAP NO	£24.68	Add
025	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
026	731-3221	BAFFLE-LOWER AIR COOL	£95.93	Add
027	731-3231A	BAFFLE-UPPER AIR COOL 731-3231	£73.34	Add
028	731-3266	NO LONGER AVAILABLE	N/A	POA
029	736-0119	LOCK WASHER 5/16	£3.33	Add
030	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add
031	736-0163	WASHER-FL	£12.20	Add
032	736-0169	L. WASHER	£2.89	Add
033	736-0329	L. WASHER	£3.26	Add
034	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
035	736-3017	WASH:FLAT:.470X1500X.225	£3.10	Add
036	746-3075	BOWDEN CABLE	£41.92	Add
037	746-3076	CHOKE CABLE	£34.30	Add
038	750-0507	SPACER	£5.52	Add
039	750-3203	SPACER-ENGINE MTG	N/A	POA
040	750-3239	SLEEVE	N/A	POA
041	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
042	751-3156	EXHAUST PIPE R.H.	N/A	POA
043	751-3157	EXHAUST MANIFOLD L.H.	N/A	POA
044	756-3101	PULLEY-CENTER	N/A	POA
045	756-3102A	PULLEY-INNER/OUTER	N/A	POA
046	BS-805024	Gasket	N/A	POA
047	BS-805158	Screw	N/A	POA
048	BS-222934	BRACKET-MOUNTING	£42.69	Add
049	725-1365	BULB	£10.31	Add
050	725-3243	FUSE 25AMP	£8.76	Add
051	721-0342	GSKT:RLY:SILICONE	£5.96	Add
052	725-1648	RLY:SPTDT:12V 20AMP	£46.64	Add
053	759-3869	BOX W/COVER-FUSE	£44.47	Add
054	759-3869	BOX W/COVER-FUSE	£44.47	Add
055	725-3251	NO LONGER AVAILABLE	N/A	POA
056	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
057	703-3398	SHIELD-LOWER EXHAUST	£80.29	Add
058	710-3007	SCR:TT:#12-24:0.375 HXINDWSH	£3.59	Add
09A	710-3288	SCRE.HHCS:1/4-20:1.62:GR5:LOCK	£6.22	Add
48A	BS-393514	CLIP	N/A	POA
