MTD017875

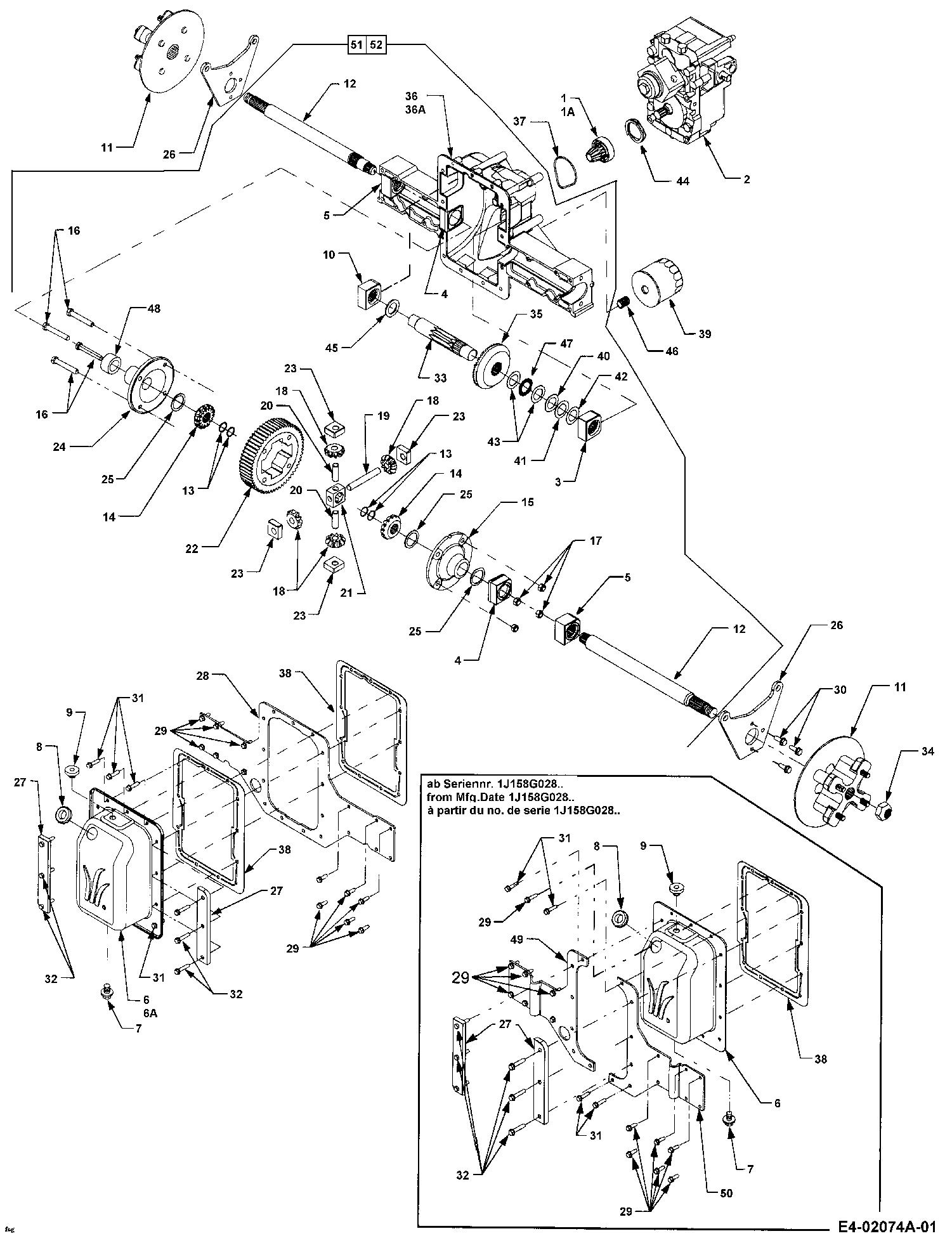

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	617-3001	GEAR ASSY-PINION	£239.86	Add
002	759-3967	PUMP KIT-AUX CHARGE	£5,992.15	Add
003	618-3145	SUPT:CSTG:COMPL:	£52.36	Add
004	618-3149	NO LONGER AVAILABLE	N/A	POA
005	618-3150	NO LONGER AVAILABLE	N/A	POA
006	618-3162	COVER ASSY. REAR	£106.93	Add
007	710-1633	DRAIN SCREW	£21.44	Add
008	735-0277	GROMMET-RUBBER	N/A	POA
009	735-0279	GROMMET VENT FITTING	£15.25	Add
010	618-3163	BEARING BLOCK ASSY.	N/A	POA
011	618-3169A	HUB ASSY.- REAR AXLE	£148.49	Add
012	711-1308	SHAFT-AXLE	£196.54	Add
013	716-0172	Circlip	£16.41	Add
014	717-1119	GEAR-DIFFERENTIAL	£96.97	Add
015	619-3086	HOUSING-DIFF LOCK	£97.57	Add
016	710-0331	HHCS:3/8-24:2.25:GR5:STD	£6.01	Add
017	712-3054	NUT-HEX LOCK	£8.36	Add
018	717-1120	GEAR, 10T DIFFERENTIAL PINION	£76.97	Add
019	717-1173	SHAFT-CROSS	£16.05	Add
01A	741-3037	BRG:BALL:25x52x15:6205:OPEN	£53.87	Add
020	717-1178	SHAFT-CROSS-SPECIAL	£8.17	Add
021	717-1180	BLOCK, DIFFERENTIAL PINION	£70.55	Add
022	717-3466	GEAR-SPUR 60T	£259.13	Add
023	718-3101	BLOCK-THRUST MITER	£22.67	Add
024	719-3142	HOUSING-DIFF LOCK	£88.70	Add
025	736-0558	WASHER-FLAT	£14.44	Add
026	661-3015	BRACKET-BRAKE MTG	N/A	POA
027	703-3188A	BLOCK,TRANSMISSION,COVER	£51.28	Add
028	703-3316	PLATE-TRANSMISSION	N/A	POA
029	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
030	710-0650	SCREW	£3.58	Add
031	710-0788	NO LONGER AVAILABLE	N/A	POA
032	710-0809	SCR:TT:1/4-20:1.250:HXINDWSH	£3.42	Add
033	711-1205A	SHAFT-OUTPUT 9T	£114.02	Add
034	712-0682	NUT-HEX LOCK 7/8-14	£23.84	Add
035	717-3449	GEAR-BEVEL 54T	£130.35	Add
036	719-3128	HOUSING-KIT DIFFERENTIAL	N/A	POA
037	721-0261	O-RING, 2.75X.103	£13.23	Add
038	721-0467	NO LONGER AVAILABLE	N/A	POA
039	723-3014	FILTER,OIL	£30.42	Add
040	736-0423	NO LONGER AVAILABLE	N/A	POA
041	736-0424	WASH:FLAT:1.0X1.56	£12.14	Add
042	736-0431	WASHER-FL	£3.34	Add
043	736-0615	WASH:THRST:1.007x1.542x.030	£28.92	Add
044	736-0619	LOCK WASHER	£45.45	Add
045	736-3046A	push-on fastener	£8.32	Add
046	737-3022	FITTING,FILTER NIPPLE	£12.54	Add
047	741-3083	BEARING-NEEDLE	£41.53	Add
048	750-3238	BUSHING	£10.99	Add
049	603-0699	PLATE-LH SUPPORT	£77.00	Add
050	603-0700	PLATE-RH SUPPORT	£77.00	Add
051	618-3191	Gear Kpl.(consis-	N/A	POA
052	618-3191A	TRANSMISSION	£2,091.61	Add
06A	618-3203	COVER ASSY. REAR	N/A	POA
36A	719-3148	HOUSING-DIFFERENTIAL	£317.82	Add
