MTD017882

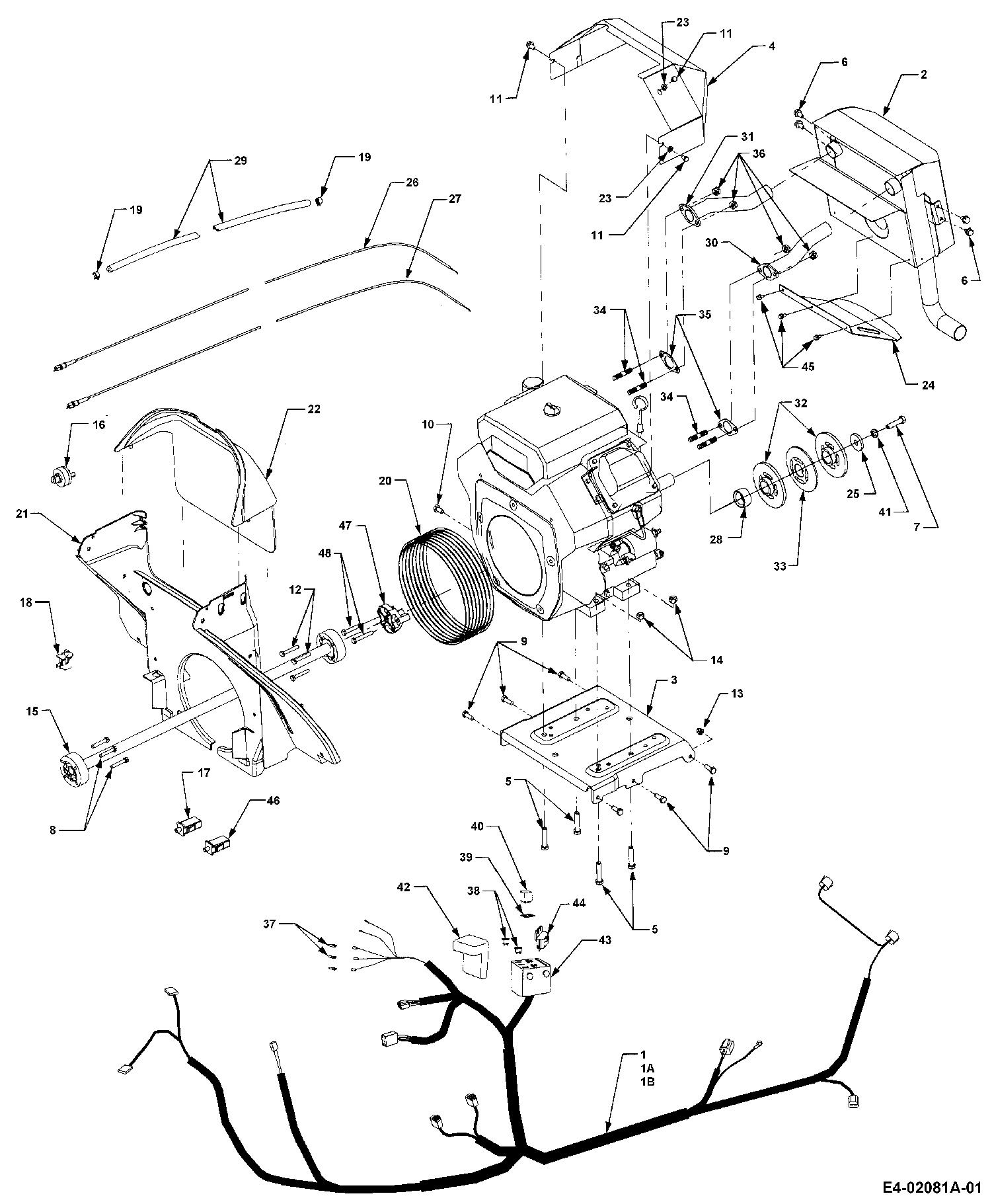

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	629-3056	HARNESS ASSY-KOHLER	£521.04	Add
002	651-3003	EXHAUST	£235.75	Add
003	703-2909	GUIDE PLATE	£78.17	Add
004	703-2999	SHIELD-HEAT INTEK 800	£87.74	Add
005	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
006	710-0607	SELF TAP SCREW	£4.71	Add
007	710-0757	HEX SCREW	£7.96	Add
008	710-3288	SCRE.HHCS:1/4-20:1.62:GR5:LOCK	£6.22	Add
009	710-3038	BOLT	£9.82	Add
010	710-3138	NO LONGER AVAILABLE	N/A	POA
011	710-3209	HHCS:M6-1.0:10MM:GR8.8:STD	£4.52	Add
012	710-3288	SCRE.HHCS:1/4-20:1.62:GR5:LOCK	£6.22	Add
013	712-0429	NUT HEX.INS L NUT	£4.92	Add
014	712-3054	NUT-HEX LOCK	£8.36	Add
015	718-3093	DRIVE SHAFT	£310.32	Add
016	725-3163	IGNITION SWITCH	£70.08	Add
017	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
018	725-3166	SWITCH SNAP MOUNT CLOSED/GREY	£15.69	Add
019	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
01A	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
01B	726-3055	CLIP-CABLE RETAINER	£3.34	Add
020	731-3166	BOOT,INTAKE	£54.96	Add
021	731-3221	BAFFLE-LOWER AIR COOL	£95.93	Add
022	731-3231A	BAFFLE-UPPER AIR COOL 731-3231	£73.34	Add
023	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add
024	703-3398	SHIELD-LOWER EXHAUST	£80.29	Add
025	736-3017	WASH:FLAT:.470X1500X.225	£3.10	Add
026	746-3075	BOWDEN CABLE	£41.92	Add
027	746-3077	CHOKE C¢BLE	£41.18	Add
028	750-3201	SPACER-ENGINE CRANK	£21.60	Add
029	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
030	751-3154	PIPE-EXHAUST RH	£75.67	Add
031	751-3155	EXHAUST PIPE L.H.	£75.67	Add
032	756-3091A	SHEAVE-PULLEY	N/A	POA
033	756-3099	PULLEY-CENTER 4"DIA	N/A	POA
034	KH-25-072-04	STUD	£4.98	Add
035	721-0377	GSKT: EXHAUST:KOHLER COMMAND	N/A	POA
036	712-3086	NUT:FLANGE:M8-1.25	£3.34	Add
037	725-1365	BULB	£10.31	Add
038	725-3243	FUSE 25AMP	£8.76	Add
039	721-0342	GSKT:RLY:SILICONE	£5.96	Add
040	725-1648	RLY:SPTDT:12V 20AMP	£46.64	Add
041	736-0171	WASHER	£2.93	Add
042	759-3869	BOX W/COVER-FUSE	£44.47	Add
043	759-3869	BOX W/COVER-FUSE	£44.47	Add
044	725-3251	NO LONGER AVAILABLE	N/A	POA
045	710-3007	SCR:TT:#12-24:0.375 HXINDWSH	£3.59	Add
046	725-3191A	SWITCH,INTERLOCK	£32.13	Add
047	719-3096	ADAPTER	£68.59	Add
048	KH-24-086-16	SCREW,HEX FLANGE	N/A	POA
