Parts list

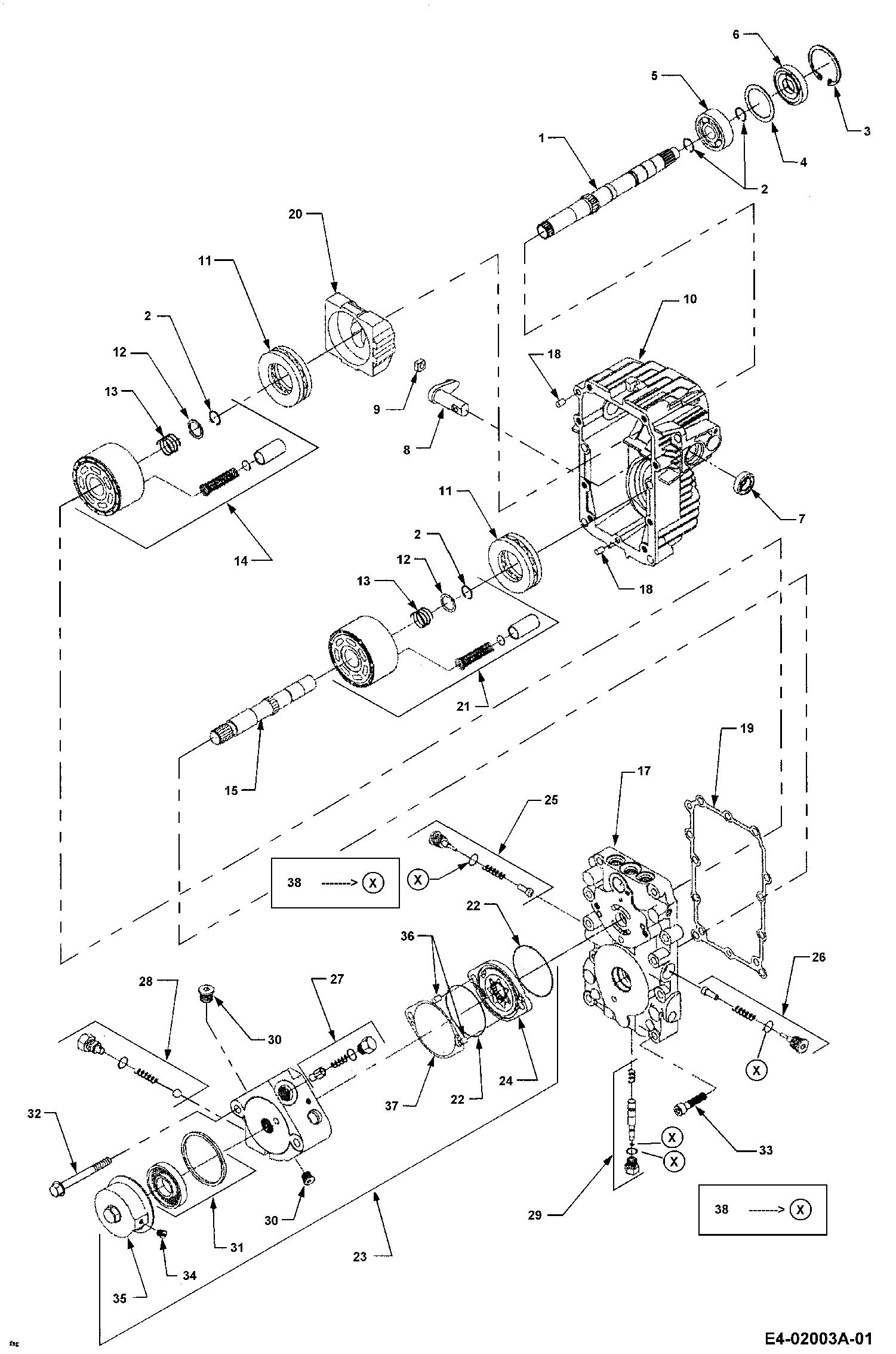

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref |
No |
Description |
Price |
|
001
|
HG-51206
|
SHAFT-PUMP SPLINED ADAPTER END
|
£278.59
|
Add
|
002
|
HG-2000022
|
RING WIRE RETAINING
|
£9.89
|
Add
|
003
|
HG-2000038
|
RING,RETAINING
|
£7.93
|
Add
|
004
|
HG-2000023
|
SPACER
|
£11.43
|
Add
|
005
|
HG-2000032
|
BEARING,BALL
|
£132.38
|
Add
|
006
|
HG-2000036
|
SEAL,LIP
|
£28.74
|
Add
|
007
|
HG-2000037
|
SEAL,LIP
|
£30.77
|
Add
|
008
|
HG-2000014
|
ARM,TRUNNION
|
£121.26
|
Add
|
009
|
HG-2000015
|
GUIDE-SLOT
|
£29.24
|
Add
|
010
|
HG-2510097
|
HOUSING ASSEMBLY
|
£483.46
|
Add
|
011
|
HG-50552
|
BEARING-THRUST 42X68X16
|
£79.99
|
Add
|
012
|
HG-2000024
|
WASHER-BLOCK THRUST
|
£6.04
|
Add
|
013
|
HG-2000025
|
SPRING-BLOCK
|
£6.04
|
Add
|
014
|
HG-2510014
|
KIT,PUMP CYLINDER BLOCK
|
£417.48
|
Add
|
015
|
HG-2000007
|
SHAFT-MOTOR
|
N/A
|
POA
|
017
|
HG-2510098
|
SECTION-CENTER
|
£906.37
|
Add
|
018
|
HG-50641
|
PIN
|
£14.12
|
Add
|
019
|
HG-2000061
|
GASKET,CENTER SECTION
|
£39.06
|
Add
|
020
|
HG-50203
|
TRAY
|
N/A
|
POA
|
021
|
HG-2510013
|
KIT,MOTOR CYLINDER BLOCK
|
£355.32
|
Add
|
022
|
90041001430
|
O-RING
|
£17.18
|
Add
|
023
|
HG-2510083P
|
PUMP KIT-AUX CHARGE
|
£650.51
|
Add
|
024
|
HG-50761
|
ROTOR ASSY
|
£256.21
|
Add
|
025
|
HG-2510050
|
KIT CHECK VALVE
|
£76.23
|
Add
|
026
|
HG-2510034
|
KIT ORIFICED CHECK VALVE
|
£75.26
|
Add
|
027
|
HG-2510081
|
VALVE
|
£102.29
|
Add
|
028
|
HG-2510082
|
VALVE
|
£83.51
|
Add
|
029
|
HG-2510012
|
KIT, BYPASS VALVE
|
£114.25
|
Add
|
030
|
9005110-4400
|
PLUG-CUP
|
£15.09
|
Add
|
031
|
HG-2510090
|
FILTER KIT
|
£70.96
|
Add
|
032
|
HG-50969
|
SCREW-FLANGE HEAD CAP
|
£10.48
|
Add
|
033
|
90073140808
|
SCREW,SOCKET HEAD CAP
|
£7.93
|
Add
|
034
|
9005110-3100
|
PLUG-CUP
|
£26.89
|
Add
|
035
|
HG-50994
|
COVER-FILTER
|
£80.59
|
Add
|
036
|
HG-50408
|
PIN
|
£6.04
|
Add
|
037
|
HG-2000044
|
SHIM
|
£18.08
|
Add
|
038
|
HG-2510010
|
KIT,OVERHAUL SEAL
|
£93.37
|
Add
|
