MTD009968

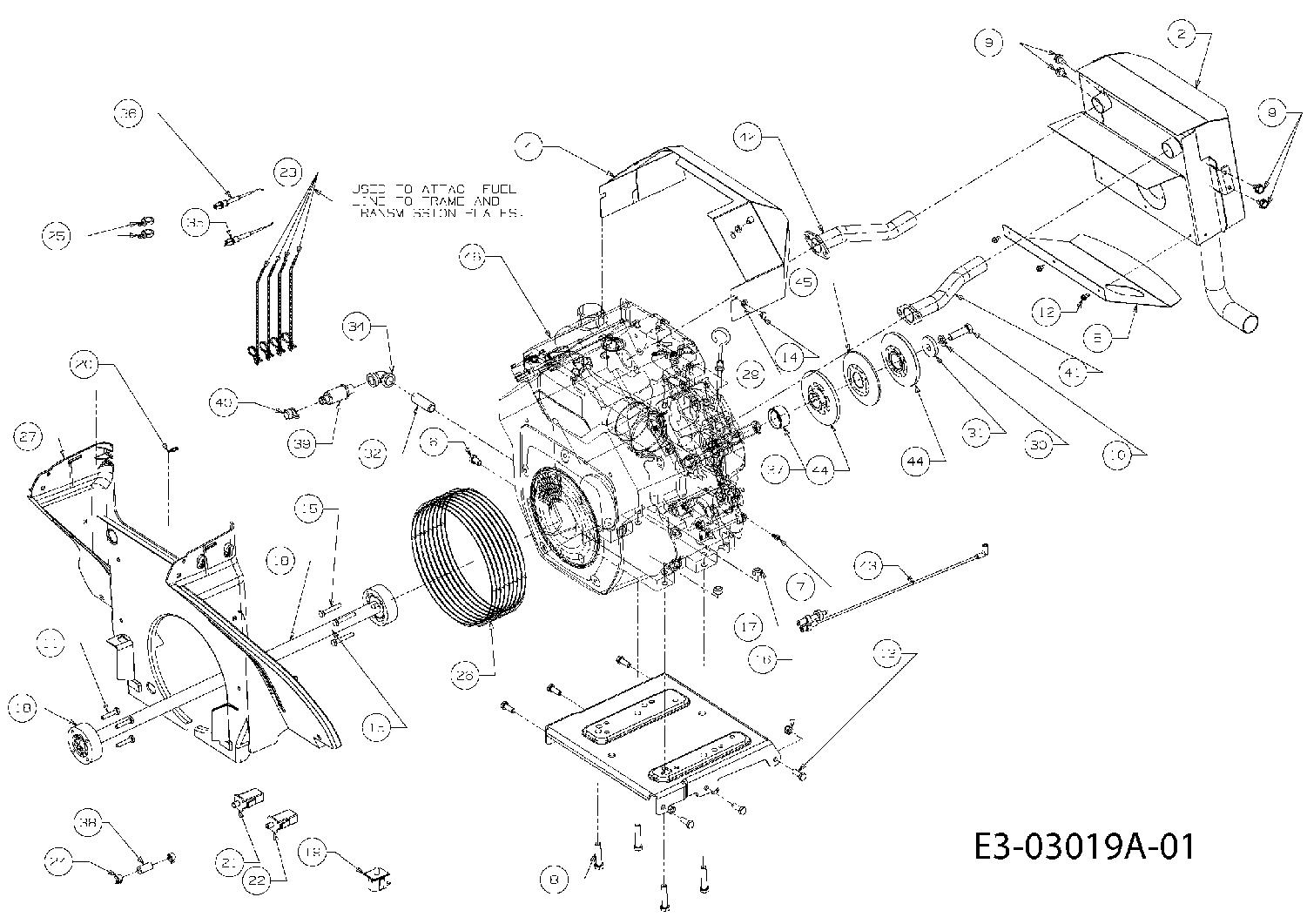

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	629-04107	HARNESS ASM MAIN	£206.44	Add
002	651-3003	EXHAUST	£235.75	Add
003	703-2909A	DISK:REINFORCEMENT	N/A	POA
004	703-2999	SHIELD-HEAT INTEK 800	£87.74	Add
005	703-3398	SHIELD-LOWER EXHAUST	£80.29	Add
006	710-0237	HEX SCREW	£5.55	Add
007	710-1388	SCREW	£3.23	Add
008	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
009	710-0607	SELF TAP SCREW	£4.71	Add
010	710-0757	HEX SCREW	£7.96	Add
011	710-1062	BOLT	£11.98	Add
012	710-3007	SCR:TT:#12-24:0.375 HXINDWSH	£3.59	Add
013	710-3038	BOLT	£9.82	Add
014	710-3209	HHCS:M6-1.0:10MM:GR8.8:STD	£4.52	Add
015	710-3288	SCRE.HHCS:1/4-20:1.62:GR5:LOCK	£6.22	Add
016	712-0429	NUT HEX.INS L NUT	£4.92	Add
017	712-3054	NUT-HEX LOCK	£8.36	Add
018	718-3093	DRIVE SHAFT	£310.32	Add
019	725-04040	SW:SEAT:N/C, N/C	£28.46	Add
020	725-1365	BULB	£10.31	Add
021	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
022	725-3191A	SWITCH,INTERLOCK	£32.13	Add
023	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
024	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
025	726-3055	CLIP-CABLE RETAINER	£3.34	Add
026	731-3166	BOOT,INTAKE	£54.96	Add
027	731-3221A	BAFFLE-LOWER AIR COOL	£87.03	Add
028	731-3231A	BAFFLE-UPPER AIR COOL 731-3231	£73.34	Add
029	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add
030	736-0171	WASHER	£2.93	Add
031	736-3017	WASH:FLAT:.470X1500X.225	£3.10	Add
032	737-0199	PIPE:STRAIGHT:3/8 NPT x 2.0 LG	£9.28	Add
034	737-0272	ELBOW-3/8	£14.12	Add
035	746-3075	BOWDEN CABLE	£41.92	Add
036	746-3077	CHOKE C¢BLE	£41.18	Add
037	750-3357	SPACER-PULLEY	£45.34	Add
038	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
039	751-10517A	OIL DRAIN	£38.87	Add
040	751-3142	CAP:DRAIN:OIL	£17.58	Add
041	751-3154	PIPE-EXHAUST RH	£75.67	Add
042	751-3155	EXHAUST PIPE L.H.	£75.67	Add
043	751-3199	HOSE ASM-VACUUM KOHLER	£91.98	Add
044	756-3091A	SHEAVE-PULLEY	N/A	POA
045	756-3099	PULLEY-CENTER 4"DIA	N/A	POA
046	852K730159	ENGINE KOHLER	N/A	POA
