MTD009976

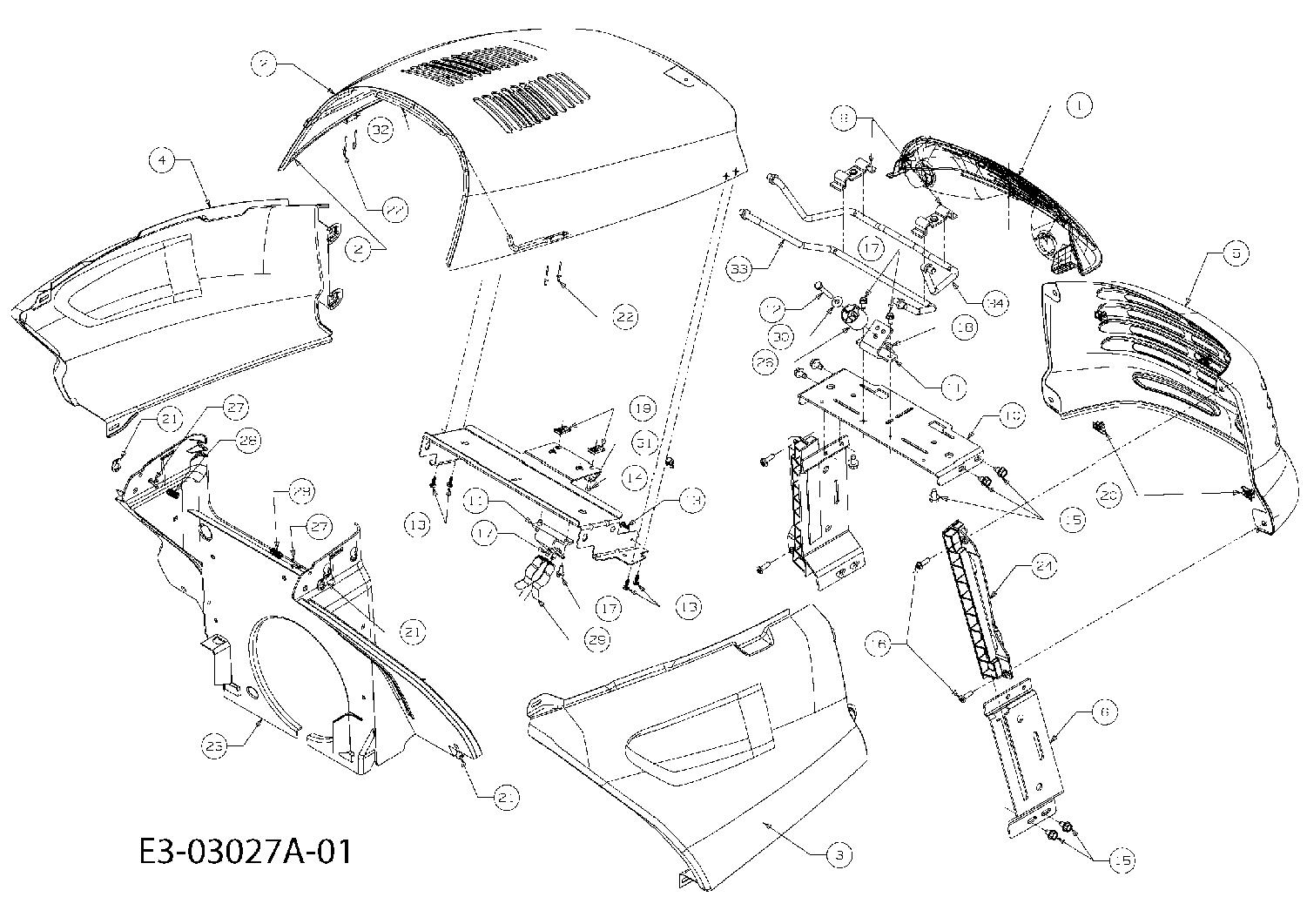

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	625-04001A	HEADLIGHT ASM FRONT:CUB LT/GT	£127.55	Add
002	703-05000A-C	HOOD 759-3865	£203.35	Add
003	703-2946	side panel,rh	£195.45	Add
004	703-2947	SIDE PANEL-LH	£219.36	Add
005	703-2950	GRILLE	N/A	POA
006	703-2984	SUPPORT-RH GRILLE	£25.22	Add
007	703-2985	SUPPORT-LH GRILLE	£25.22	Add
008	703-3070B	BRACKET-UPPER HOOD	N/A	POA
009	703-3071	BRACKET-ROD RETAINER	£7.93	Add
010	703-3101B	SUPPORT HOOD	N/A	POA
011	703-4088	BRACKET SUPPORT HOOD LATCH	£77.22	Add
012	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add
013	710-1388	SCREW	£3.23	Add
014	710-0651	SCR:B:#10-16:0.625:HEX 710-0436	£10.32	Add
015	710-0607	SELF TAP SCREW	£4.71	Add
016	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
017	710-1005	NO LONGER AVAILABLE	N/A	POA
018	712-3051	712-3051	£2.69	Add
019	726-0139	SPEED NUT 10Z U-TYPE	£3.39	Add
020	726-3054	NUT,U-CLIP	£9.51	Add
021	726-3056	LATCH 1/4 TURN	£13.39	Add
022	728-0117	RIV:POP:.125 OD:#42	£2.50	Add
023	731-3221A	BAFFLE-LOWER AIR COOL	£87.03	Add
024	731-3227	MOUNT-RH FRONT GRILLE/SIDE	£63.06	Add
025	731-3228	MOUNT-LH FRONT GRILLE/SIDE	£50.52	Add
026	731-3232	ROLLER,HOOD LATCH	£19.48	Add
027	732-0936	CLIP-SPRING	£12.34	Add
028	732-0937	COMPRESSION SPRING	£11.98	Add
029	732-1178	Spring	£34.56	Add
030	736-0342	FLAT WASHER	£2.97	Add
031	736-0400	FLAT WASHER .194x.620Dx.63TH	£3.77	Add
032	747-04085	ROD-HOOD SUPPORT	£56.44	Add
033	747-3338	ROD-HOOD LOWER PIVOT	£73.87	Add
034	747-3478	ROD-HOOD UPPER PIVOT	£61.97	Add
