MTD009980

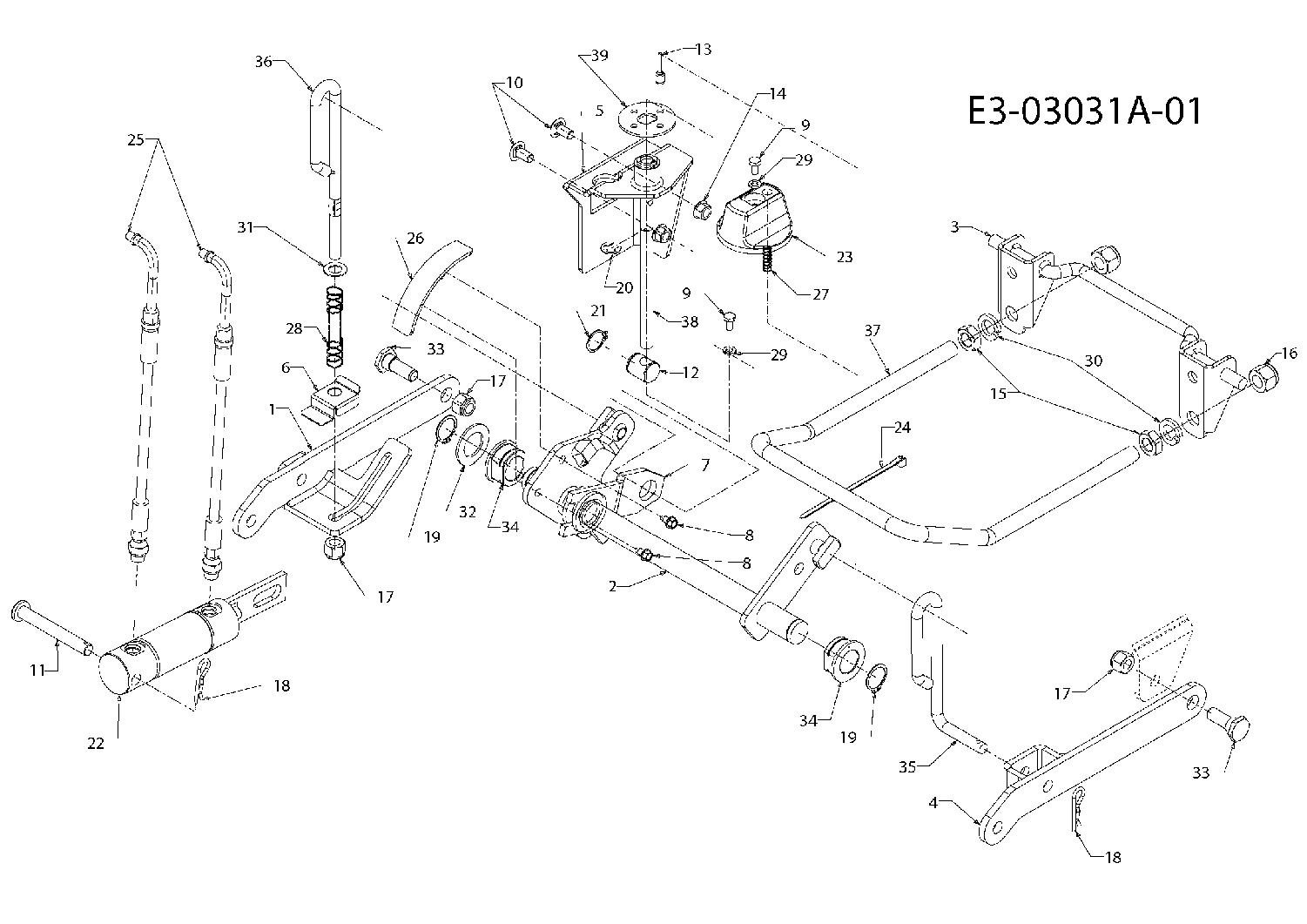

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009980

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0434 LINK ASSY-LH LIFT £46.08 Add
002 603-0435A SHAFT ASSY-LIFT 603-0435 £151.37 Add
003 603-0452A BRACKET-FRONT LIFTCUB YELLOW £207.97 Add
004 603-0456 LINK ASSY-RH LIFT £48.60 Add
005 603-0803 BRACKET-DOWNSTOP £95.17 Add
006 703-3426 BRACKET-ROD STOP £44.71 Add
007 703-3797 ARM-DOWNSTOP PIVOT £81.57 Add
008 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
009 710-3013 SCREW HEX CAP £3.39 Add
010 710-3178 BOLT SHORT NECK CARR £11.46 Add
011 711-1206 PIN:CLV: .500 DIA X 3.75 LG £27.05 Add
012 711-1553 BOLT £24.48 Add
013 711-1561 PIN,DOWEL £20.39 Add
014 712-0431 NUT £3.20 Add
015 712-3015 NUT £10.65 Add
016 712-3016 NUT:HEXLK:5/8-11:GR5:NYLON £11.98 Add
017 712-3083 NUT £2.79 Add
018 714-0147 COTTER PIN £3.51 Add
019 716-0102 RING SNAP:1.00 DIA SHAFT £4.66 Add
020 716-0104 RETAINING RING 1650-001 £3.58 Add
021 716-0111 EXT:RET:RING:.875 SHFT £2.98 Add
022 717-3518 CYLINDER-LIFT £315.33 Add
023 720-0236 NO LONGER AVAILABLE N/A POA
024 725-0157 NO LONGER AVAILABLE N/A POA
025 727-3135 HOSE LIFT £124.53 Add
026 731-3215B INDICATOR-LIFT HGT £35.14 Add
027 732-0437 COMPR. SPRING:.34 OD x 1.0 LG £17.07 Add
028 732-0870A Spring £5.91 Add
029 736-0142 WASHER:FLAT:.281 x.50 x.063 £3.59 Add
030 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.47 Add
031 736-0160 WASH:FLAT:.530x.930x.050 £3.39 Add
032 736-0250 WASH:FLAT:1.00x1.75x.107 £10.32 Add
033 738-0744A SCR:SHLDR:.625x.36:1/2-13 £20.33 Add
034 741-0170 Bearing flange £13.56 Add
035 747-3330 ROD-LH LIFT £44.60 Add
036 747-3331A ROD-LH LIFT £45.07 Add
037 747-3386 BAIL £119.27 Add
038 747-3437 SCREW-DOWN STOP ADJ. £87.32 Add
039 748-3103 LOCK WASHER £70.54 Add
