FG015_0070

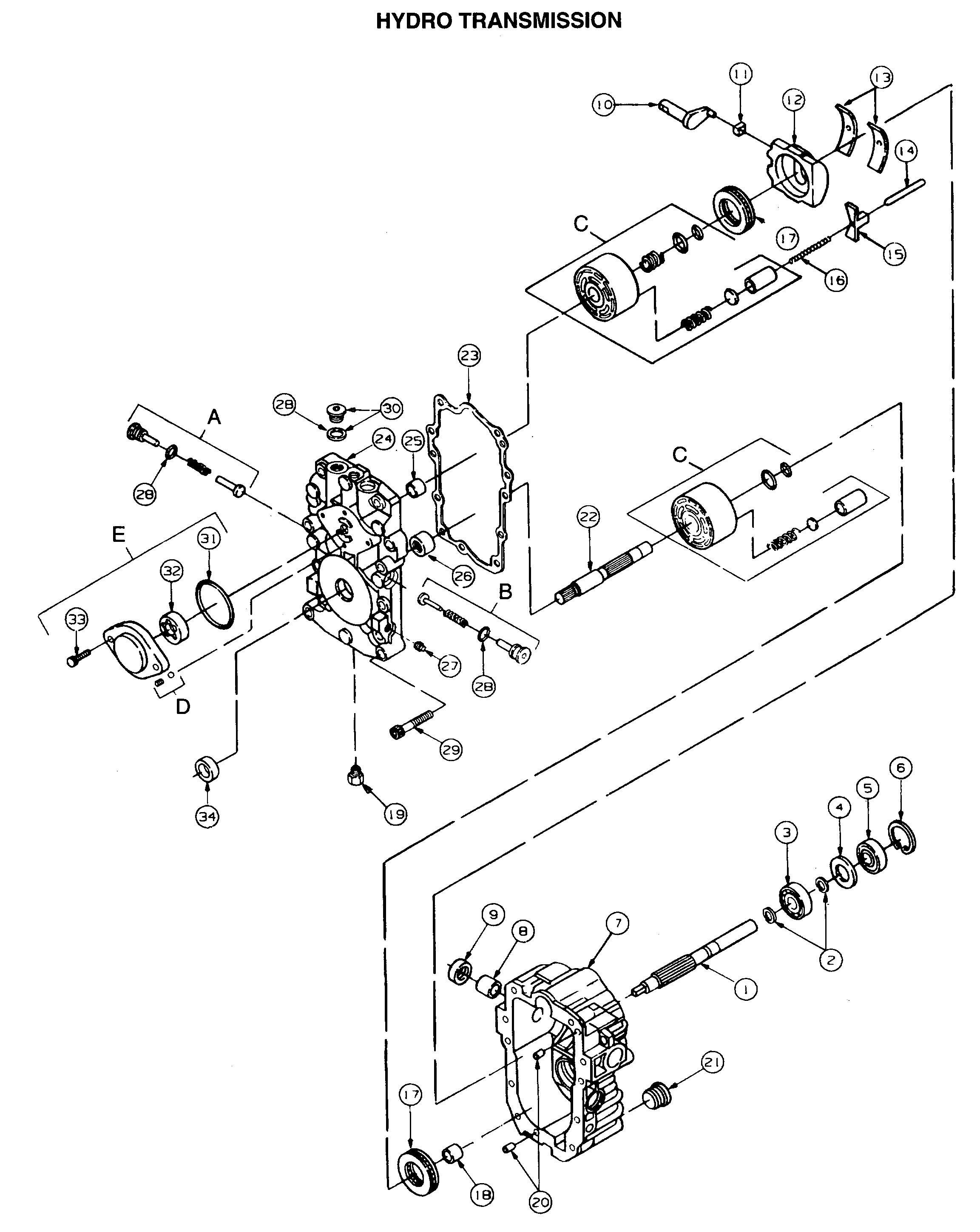

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG015_0070

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
HG-2513013 KIT OVERHAUL SEALS £94.40 Add
001 HG-50185 SHAFT,PUMP £183.37 Add
002 HG-2003016 RING-WIRE RETAINING £8.65 Add
003 HG-2003043P BEARING-BALL £81.44 Add
004 HG-2003018 SPACER £8.54 Add
005 HG-9008000-0128 SEAL-LIP (RED) £16.93 Add
006 HG-2003052 RING-RETAINING £8.65 Add
007 HG-2513036 HOUSING KIT £366.85 Add
008 HG-2003009 BEARING,JOURNAL N/A POA
009 HG-9008000-0126 SEAL-LIP (RED) £12.14 Add
00A HG-2510050 KIT CHECK VALVE £76.23 Add
00B HG-2510034 KIT ORIFICED CHECK VALVE £75.26 Add
00C HG-70331 BLOCKASSY-CYLINDER £322.57 Add
00D HG-2510011 KIT CHARGE RELIEF VALVE (RED) £15.38 Add
00E HG-2513027 KIT,CHARGE PUMP £169.32 Add
010 HG-2003005 ARM-TRUNNION £292.70 Add
011 HG-2000015 GUIDE-SLOT £29.24 Add
012 HG-2003087 SWASHPLATE-VARIABLE £211.60 Add
013 HG-2003023 BEARING-CRADLE £48.37 Add
014 HG-9004820-2536 PIN, LEVELER N/A POA
015 HG-2003091 LEVELER SWASHPLATE £74.28 Add
016 HG-2003092 SPRING LEVELER £5.80 Add
017 HG-50551P DRUCKLAGER £68.32 Add
018 HG-2003071 BEARING,JOURNAL N/A POA
019 HG-9005110-4400 PLUG N/A POA
020 HG-9004800-2506 N/A POA
021 HG-9005110-8700 PLUG N/A POA
022 HG-2003034 SHAFT,MOTOR N/A POA
023 HG-2003060 GASKET CENTRE SECTION £9.58 Add
024 HG-2513037 KIT CENTER SECTION £696.93 Add
025 HG-2003071 BEARING,JOURNAL N/A POA
026 HG-2003045 NEEDLE BEARING N/A POA
027 HG-9005001-0600 PLUG, PIPE N/A POA
028 HG-9004201-3700 O-RING N/A POA
029 HG-9007314-0808 SCREW, SOCKET HD N/A POA
030 HG-9005110-5600 PLUG (RED) £22.05 Add
031 HG-9004101-1340 O-RING N/A POA
032 HG-50273 GEROTOR ASSY. £74.70 Add
033 HG-9007375-0038 SCREW, SOCKET HD N/A POA
