MTD007614

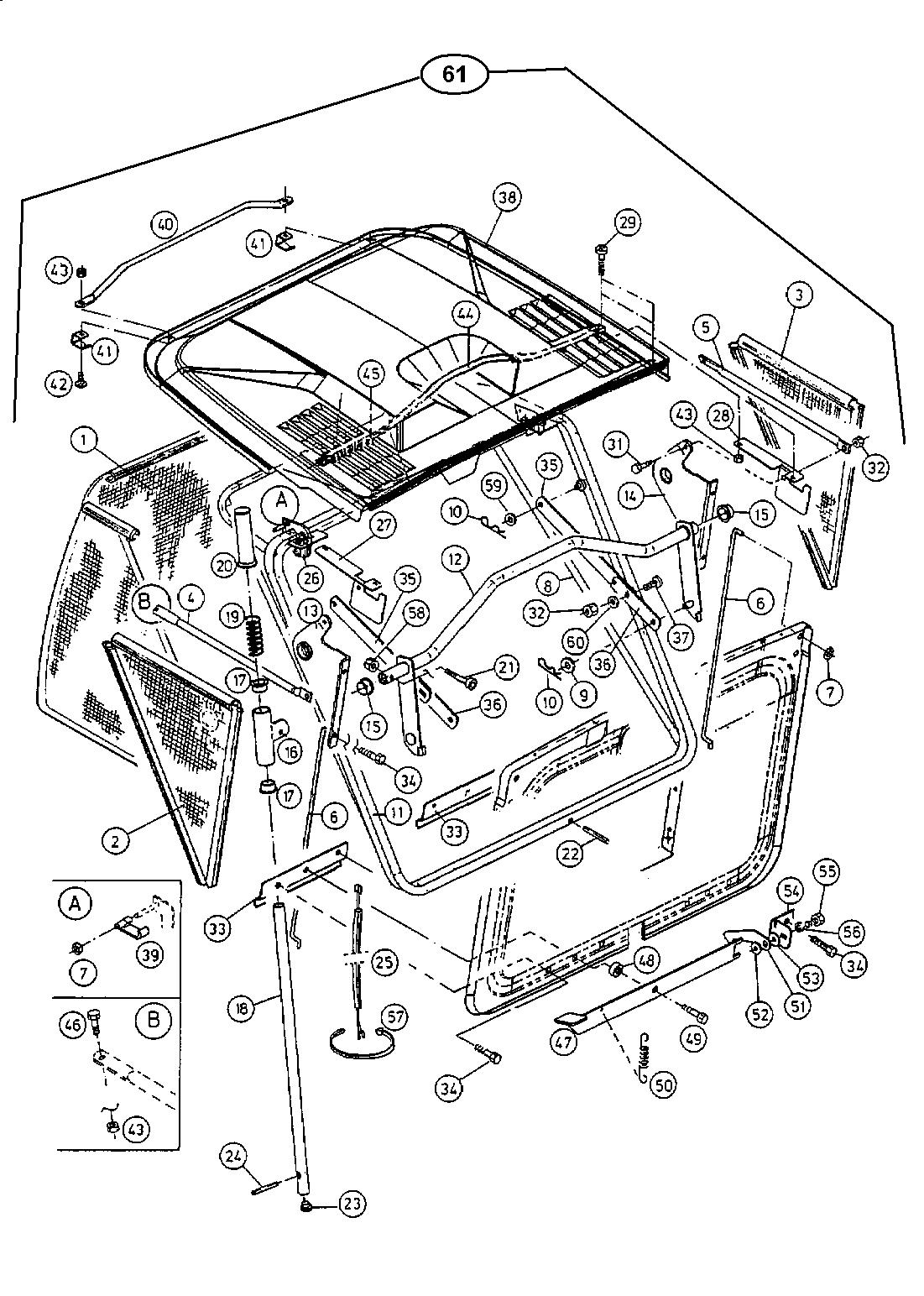

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	664-0128A	NO LONGER AVAILABLE	N/A	POA
002	664-0126	SIDE PART GRASS BAG R.H.	£49.53	Add
003	664-0127	SIDE PART GRASS BAG	£47.32	Add
004	749-1055	BRACE ROD	£13.04	Add
005	749-1054	BRACE ROD	£12.90	Add
006	749-1056	ROD	£6.54	Add
007	726-0353	NO LONGER AVAILABLE	N/A	POA
008	683-0203637	NO LONGER AVAILABLE	N/A	POA
009	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
010	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add
011	683-0205	FRONT GRASS BAG TUBE	£83.97	Add
012	683-0209637	LIFT HANDLE GRASS CATCHER 683-0200	£114.22	Add
013	783-0489637	TILT CATCHER BRACKET RIGHT 783-0489	£87.38	Add
014	783-0488	NO LONGER AVAILABLE	N/A	POA
015	750-1106	bush	£3.39	Add
016	683-0204	T-TUBE	£94.40	Add
017	750-1107	FLANGE BUSHING	£5.00	Add
018	749-1057	LIFT ROD	£3.59	Add
019	732-0879	TORSION SPRING	£3.80	Add
020	720-0301	GRIP	£7.51	Add
021	710-1357	NO LONGER AVAILABLE	N/A	POA
022	25.3197.79	Pin	£3.41	Add
023	720-0345	PLUG:HANDLE	£3.49	Add
024	25.3197.94	Spring pin	£3.62	Add
025	729-1127A	HARNESS 729-1127	£13.36	Add
026	725-3166	SWITCH SNAP MOUNT CLOSED/GREY	£15.69	Add
027	783-0498637	SUPPORT RIGHT	£21.99	Add
028	783-0499637	NO LONGER AVAILABLE	N/A	POA
029	710-1389	CROSS RECESSED RAISED CHEESE 23.5422.13	£3.20	Add
031	710-1725	SCREW HEX 21.1441.71	£3.85	Add
032	712-0692	HEX NUT	£3.10	Add
033	783-0487	BRACKET	£11.73	Add
034	710-0607	SELF TAP SCREW	£4.71	Add
035	783-0503	Holder strap	£35.88	Add
036	783-0504637	CONNECCTING ROD - SHORT 783-0504	£33.95	Add
037	710-1727	Screw 22.3419.25	£3.34	Add
038	783-1339665	NO LONGER AVAILABLE	N/A	POA
039	731-2002	LEVER	£4.62	Add
040	749-0950637	HANDLE-TUBE REAR .50 OD 749-0950	£21.16	Add
041	783-0919-Z	HOLDER 783-0501	£15.95	Add
042	710-1726	NO LONGER AVAILABLE	N/A	POA
043	712-0691	HEX NUT M6 DIN 985	£2.66	Add
044	749-0947-0637	HANDLE-TUBE REAR .50 OD 749-0947	£34.22	Add
045	749-0946	HANDLE-TUBE REAR .50 OD	£28.57	Add
046	710-1724	SCREW HEX	£3.90	Add
047	683-0201A	LIFT BRACKET 683-0201	£16.77	Add
048	750-1105	SPACER	£7.22	Add
049	710-0817	SCR:TT:5/16-18:1.250:HXINDWSH	£4.52	Add
050	732-0877	NO LONGER AVAILABLE	N/A	POA
051	783-0494	HOOK	£5.62	Add
052	712-0627	Nut 000.02.314	£5.91	Add
053	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
054	783-0495	BRACKET, HITCH ARM MT.	£42.58	Add
055	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
056	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add
057	725-0157	NO LONGER AVAILABLE	N/A	POA
058	712-0628	HEX. NUT M8-12 DIN 934	£2.04	Add
059	736-0700	FLAT WASHER	£2.63	Add
060	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
061	813-07116*	NO LONGER AVAILABLE	N/A	POA
