MTD007928

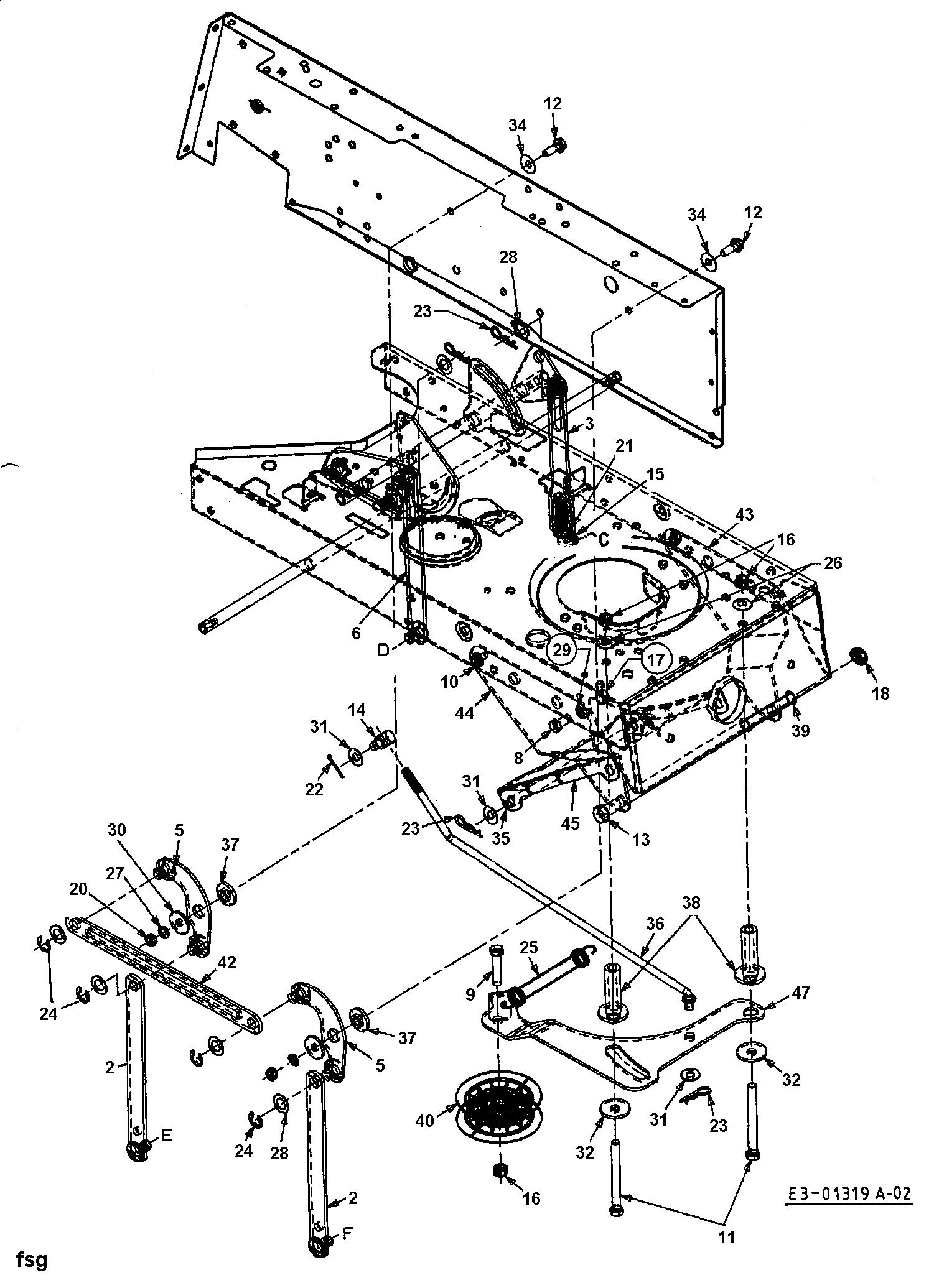

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007928

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 14804A637 DECK LINK HANGER £16.94 Add
003 17712-0637 DECK:LIFT LINK ADJ 17712 £12.17 Add
005 683-0029A637 LINK-PIVOT ASSY LH 683-0029A £14.96 Add
006 683-0079A NO LONGER AVAILABLE N/A POA
008 710-0180 HHCS:3/8-24:.750:GR5:STD £3.90 Add
009 710-0539 HHCS:3/8-24:1.75:GR5:STD £4.46 Add
010 710-1260A SCREW £4.00 Add
011 710-0902 SCREW HHCS:3/8-24:3.75:GR5:STD £15.40 Add
012 710-1238 SCREW £3.20 Add
013 710-1319 HHCS:1/2-20:11.00:GR5:SPEC £17.76 Add
014 711-0198 PIVOT BUSHING £12.12 Add
015 711-0841 LINK:ADJ:LIFT .500-20 £21.09 Add
016 712-0214 HEX NUT £3.55 Add
017 712-0241 HEX NUT 3/8-24 £2.79 Add
018 712-0346 NO LONGER AVAILABLE N/A POA
019 712-0689 NUT:HEX:M6-1:DIN 934 £2.33 Add
020 712-3010 NUT 5/16 x 18 £2.77 Add
021 712-3066 NUT:HEX:1/2-20 GR5 £3.31 Add
022 714-0111 COTTER PIN £3.20 Add
023 714-0145 R CLIP £2.78 Add
024 716-0104 RETAINING RING 1650-001 £3.58 Add
025 732-0262 SPRING, GOVERNOR £21.13 Add
026 736-0105 BELL WASHER £3.33 Add
027 736-0119 LOCK WASHER 5/16 £3.33 Add
028 736-0160 WASH:FLAT:.530x.930x.050 £3.39 Add
029 736-0169 L. WASHER £2.89 Add
030 736-0231 WASHER FLAT £3.58 Add
031 736-0267 WASH:FLAT:.385 x.87 x.06:HT £3.80 Add
032 736-0320 WASH:FLAT:.380 x.1.380 x.125 £4.70 Add
034 736-0425 BELLWASHER £3.31 Add
035 738-0669 SHFT:.375 DIA X 9.40 LG £25.91 Add
036 747-1118 NO LONGER AVAILABLE N/A POA
037 748-0331 SHLD SPACER £4.23 Add
038 748-0414 Spacer £20.37 Add
039 750-0972 SPCR:.515 ID X.69 OD X 2.97 LG £11.22 Add
040 756-0643A PUL IDLER FLAT 3.12 £27.94 Add
042 783-0103637 SIDE BAR 783-0103 £12.34 Add
043 783-0375637 BRACKET STABILIZER SUPPORT LH 783-0375 £44.50 Add
044 783-0376637 NO LONGER AVAILABLE N/A POA
045 783-0377637 NO LONGER AVAILABLE N/A POA
047 783-0638-Z PIVOT BRACKET £35.14 Add
