MTD008119

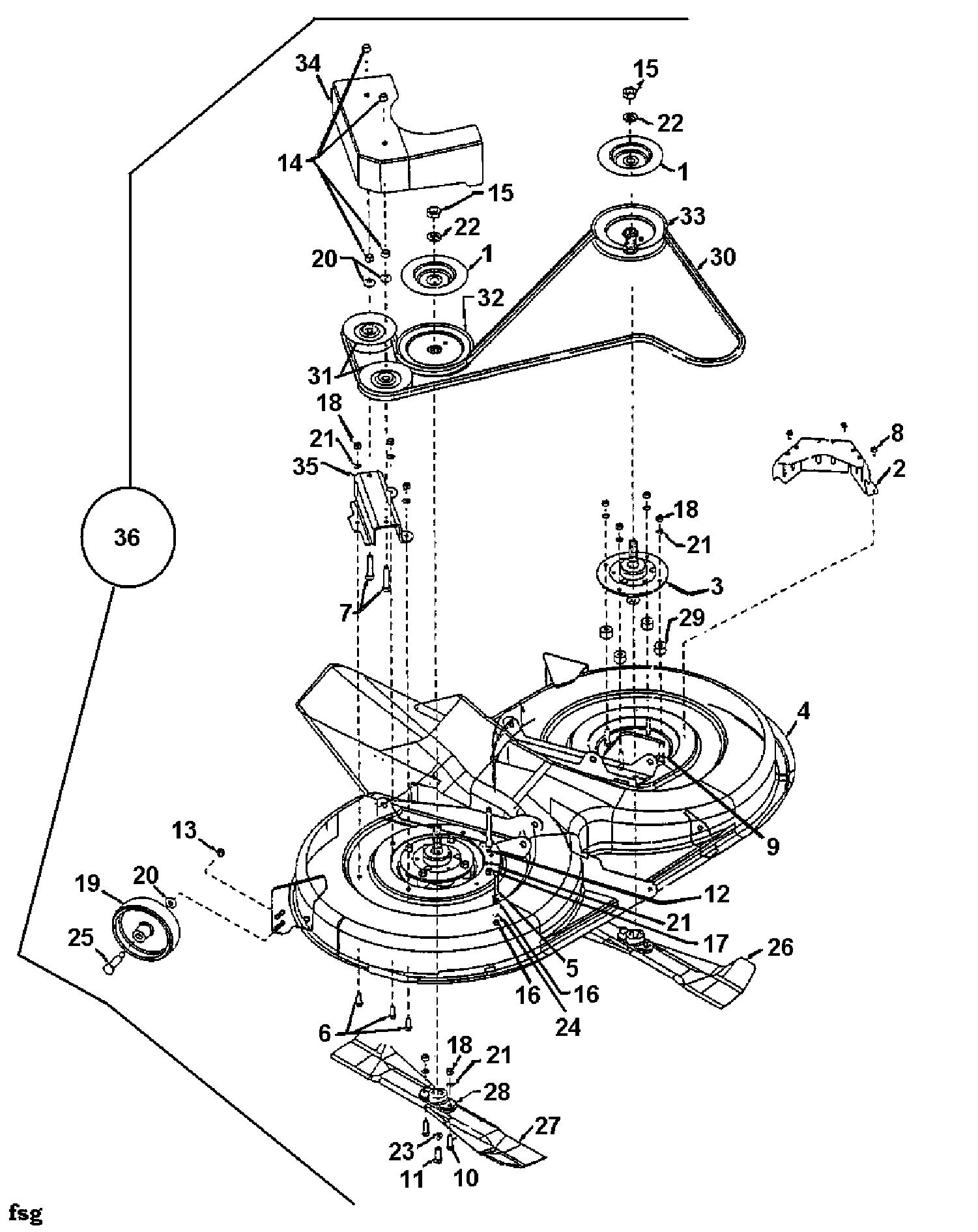

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	09322	BLADE BRAKE DISC	£10.74	Add
002	17664637	GUARD-BELT 17664	£41.16	Add
003	918-0140	SPINDLE ASSY-BLADE 40" DECK (OBSOLETE) (OBSOLETE)	N/A
004	683-0164B637	NO LONGER AVAILABLE	N/A	POA
005	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add
006	710-0157	HHCS:5/16-24:.75:GR5:STD	£6.99	Add
007	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add
010	710-0888	HEX SCR SPECIAL	£8.87	Add
011	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add
012	711-0828	NO LONGER AVAILABLE	N/A	POA
013	712-0181	HEX JAM L NUT	£3.69	Add
014	712-0241	HEX NUT 3/8-24	£2.79	Add
015	712-0318	NUT	£3.94	Add
016	712-3006	NUT	£2.77	Add
017	712-3010	NUT 5/16 x 18	£2.77	Add
018	712-3057	NUT 5/16-24	£3.00	Add
019	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
020	736-0105	BELL WASHER	£3.33	Add
021	736-0119	LOCK WASHER 5/16	£3.33	Add
022	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add
023	736-0217	H.L. WASHER (RED)	£4.89	Add
024	736-0329	L. WASHER	£3.26	Add
025	738-0373	AXLE BOLT	£6.84	Add
026	742-0607C	BLADE 20.5"	£44.63	Add
027	742-0608C	BLADE 20.5"	£44.63	Add
028	748-0300	BLADE ADAPTOR	£20.23	Add
029	750-0776	SPCR:.33 ID X .88 OD X .51 LG	£4.22	Add
030	754-0470	BELT	£83.90	Add
031	756-0487	PULLEY	£37.22	Add
032	756-0615	NO LONGER AVAILABLE	N/A	POA
033	756-0617	PUL:DECK:5.0448 x .437 PINS	£61.69	Add
034	783-0640637	GUARD BELT 783-0640	£40.68	Add
035	783-0641	SUPPORT-HANDLE PANEL	£16.23	Add
036	813-07232	DECK:40" R.D.:HYDRO	N/A	POA
