MTD016544

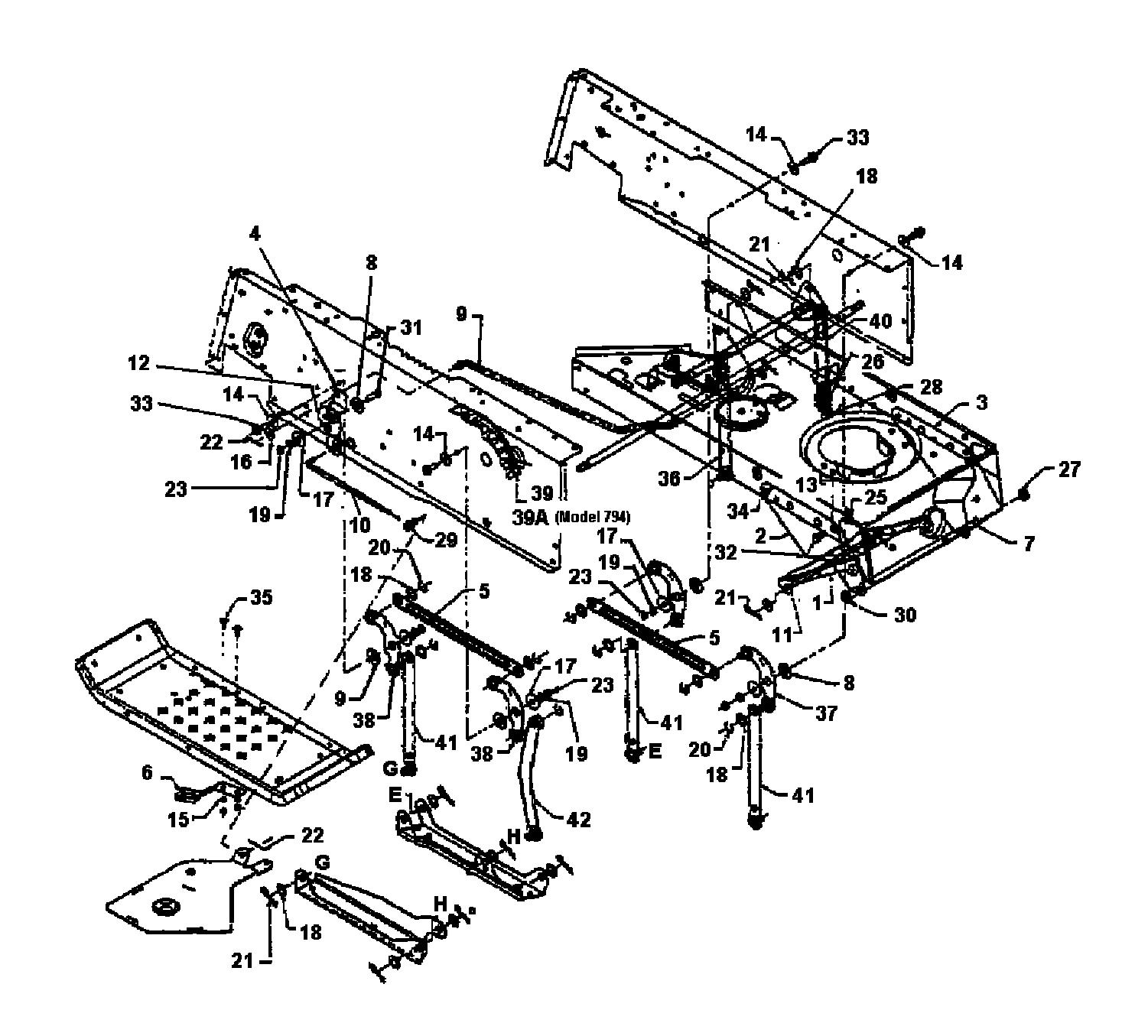

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016544

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 783-0377637 NO LONGER AVAILABLE N/A POA
002 783-0376637 NO LONGER AVAILABLE N/A POA
003 783-0375637 BRACKET STABILIZER SUPPORT LH 783-0375 £44.50 Add
004 783-0197 LINK-ENGAGEMENT ARM £15.06 Add
005 783-0103637 SIDE BAR 783-0103 £12.34 Add
006 761-0168D BRACKET ASSY-BRAKE 761-0168B £32.66 Add
007 750-0972 SPCR:.515 ID X.69 OD X 2.97 LG £11.22 Add
008 748-0331 SHLD SPACER £4.23 Add
009 747-0916A NO LONGER AVAILABLE N/A POA
010 747-0610 LIFT ROD £29.13 Add
011 738-0669 SHFT:.375 DIA X 9.40 LG £25.91 Add
012 736-0418A FLAT WASHER .34 ID X 2.25 OD X £5.81 Add
013 736-0169 L. WASHER £2.89 Add
014 736-0425 BELLWASHER £3.31 Add
015 736-0329 L. WASHER £3.26 Add
016 736-0267 WASH:FLAT:.385 x.87 x.06:HT £3.80 Add
017 736-0231 WASHER FLAT £3.58 Add
018 736-0160 WASH:FLAT:.530x.930x.050 £3.39 Add
019 736-0119 LOCK WASHER 5/16 £3.33 Add
020 716-0104 RETAINING RING 1650-001 £3.58 Add
021 714-0145 R CLIP £2.78 Add
022 714-0111 COTTER PIN £3.20 Add
023 712-3010 NUT 5/16 x 18 £2.77 Add
024 712-3006 NUT £2.77 Add
025 712-0241 HEX NUT 3/8-24 £2.79 Add
026 712-3066 NUT:HEX:1/2-20 GR5 £3.31 Add
027 712-0346 NO LONGER AVAILABLE N/A POA
028 711-0841 LINK:ADJ:LIFT .500-20 £21.09 Add
029 711-0677 FERRULE:5/16-18 x.312 DIA £13.47 Add
030 710-1319 HHCS:1/2-20:11.00:GR5:SPEC £17.76 Add
031 710-0376 SCREW HEX CAP 5/16 £9.02 Add
032 710-0180 HHCS:3/8-24:.750:GR5:STD £3.90 Add
033 710-1238 SCREW £3.20 Add
034 710-0607 SELF TAP SCREW £4.71 Add
035 710-0134 BOLT £3.03 Add
036 683-0079 LEVER ASSY.-ENGAGE £15.19 Add
037 683-0029A637 LINK-PIVOT ASSY LH 683-0029A £14.96 Add
038 683-0028A LINK PIVOT ASSY-RH £27.24 Add
039 783-04113 BRACKET-INDEX DECK LIFT 17730 £23.36 Add
040 17712-0637 DECK:LIFT LINK ADJ 17712 £12.17 Add
041 14804A637 DECK LINK HANGER £16.94 Add
042 14800A637 LINK DECK HANGER ASSY £25.89 Add
39A 783-0118 PIN-EQUIP SUPPORT £22.08 Add
