MTD016119

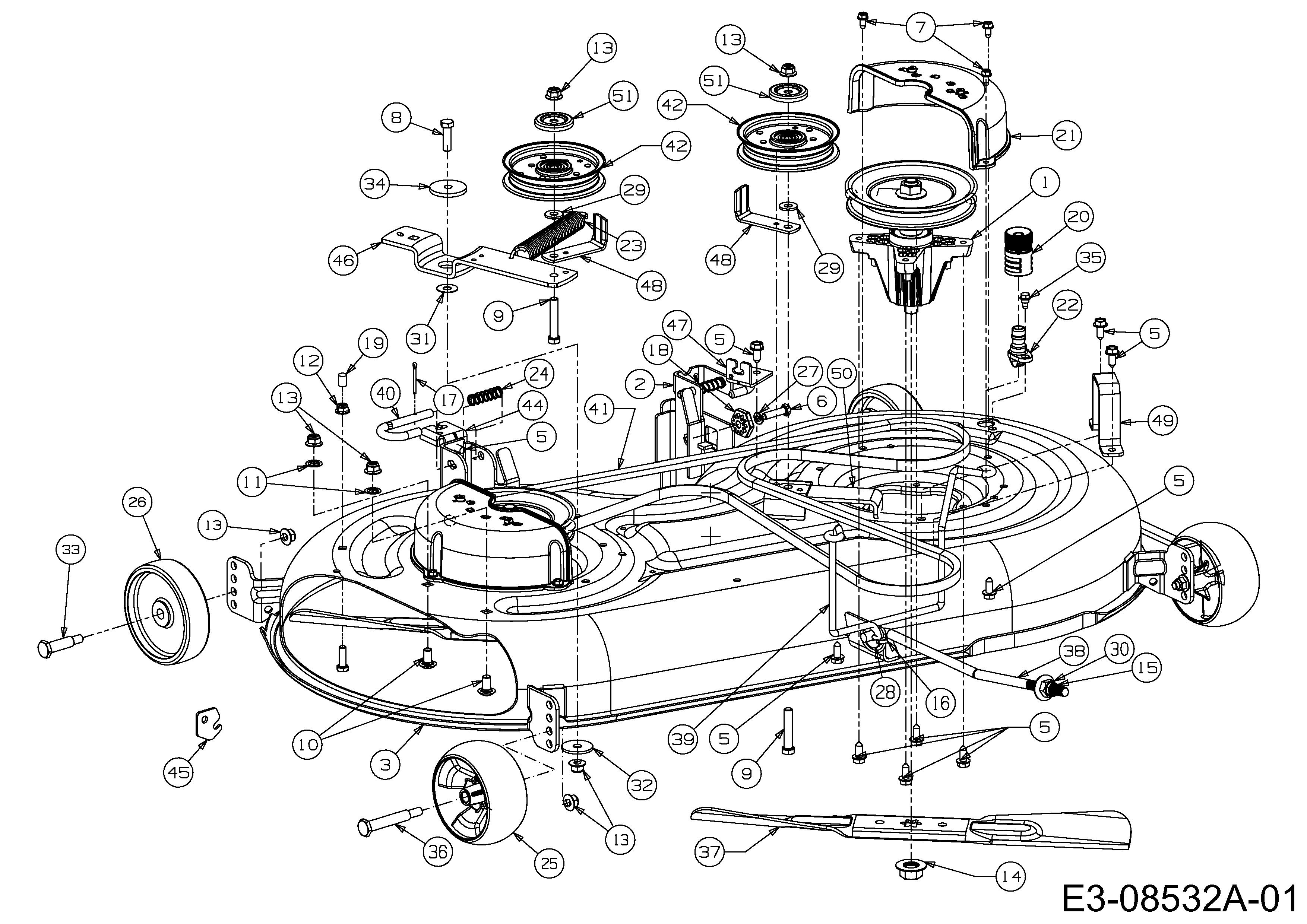

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016119

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04822A SPDL ASM:PUL:5.695 DIA X .5625 £121.70 Add
002 683-0254B BRKT:ASM:DECK:HNGR LH LT (OBSOLETE) N/A
003 683-04598A-S SHELL 42" DECK N/A POA
005 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
006 710-0528 SCREW (DNR) £3.55 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
008 710-3005 BOLT £3.24 Add
009 710-3144 SCREW £3.28 Add
010 710-3178 BOLT SHORT NECK CARR £11.46 Add
011 712-0229 NUT PUSH £5.20 Add
012 712-04063 FLANGED NUT £4.20 Add
013 712-04065 NUT £4.02 Add
014 712-05134 BLADE NUT £3.81 Add
015 712-04243 NUT £5.00 Add
016 714-0220A PIN:LYNCH:.1875 £7.99 Add
017 714-0470 COTTER PIN £5.07 Add
018 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
019 720-05010 CAP VINYL £4.62 Add
020 721-04041 ADAPER:WATER NOZZLE £16.76 Add
021 731-06496 COVER DECK BELT 46" £28.82 Add
022 731-07487 NOZ:DECK WSH £16.29 Add
023 732-0459C EXTENSION SPRING £18.91 Add
024 732-04652 SPR:COMP:.535 OD x 1.751 LG £8.11 Add
025 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
026 734-0973 WHEEL DECK 5in. DIA £11.16 Add
027 736-0119 LOCK WASHER 5/16 £3.33 Add
028 736-0179 WASHER-FL £14.34 Add
029 736-0300 WASHER £2.81 Add
030 736-0317 BELLE WASHER £8.58 Add
031 736-0344 WASHER:FLAT:.385x1.000x.030 £7.50 Add
032 736-3039 WASH:FLAT:.406 x 1.5 x .105 £2.00 Add
033 738-0373 AXLE BOLT £6.84 Add
034 738-04162C SPACER £4.64 Add
035 738-04278 SCR:SHLDR:1/4-20:0.50:HXINDWSH £3.49 Add
036 738-3056 SHOULDER BOLT £12.94 Add
037 742-04312 BLADE 21,23" £57.87 Add
038 747-04944B ROD:LIFT:DECK:SMALL £37.79 Add
039 747-05171A BELT KEEPER ROD £35.76 Add
040 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
041 754-04060C BELT £62.72 Add
042 753-08171 KIT IDLER PULLEY £37.57 Add
043 771-11725A TAG:DNGR:RT-99 CHUTE BLNGL N/A POA
044 783-04740 BRKT:CBL:DECK ENGAGE (OBSOLETE) N/A
045 783-05219 BRKT:STOP:CHUTE 50"/54" £14.15 Add
046 783-05946 BRACKET-IDLER PIVOT £23.64 Add
047 783-06243 N/A POA
048 783-06368A-S GUIDE ASSY-BELT £21.57 Add
049 783-06632 N/A POA
050 783-06643 N/A POA
051 783-07236 PULLEY CAP £10.42 Add
