MTD016115

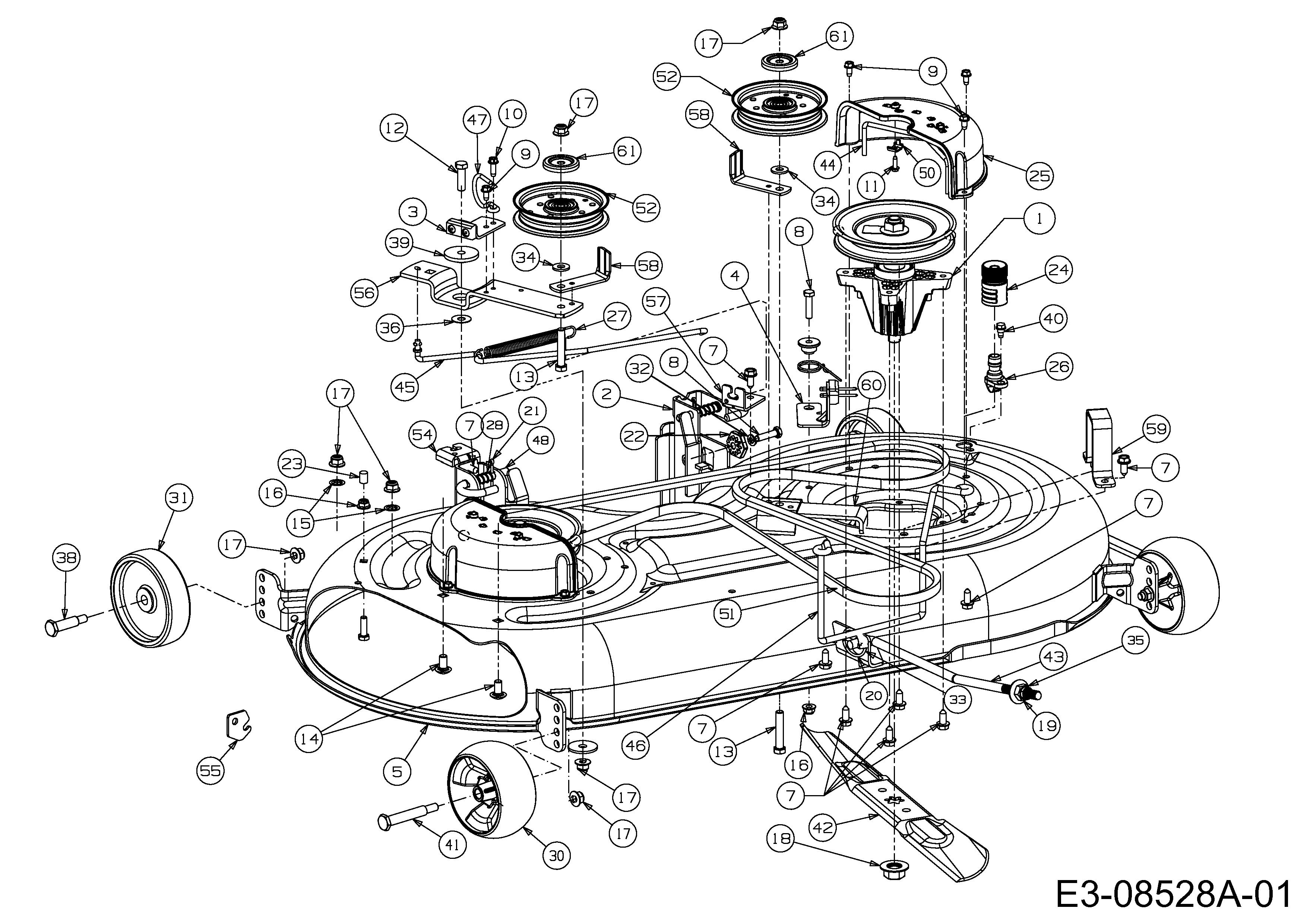

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04822A	SPDL ASM:PUL:5.695 DIA X .5625	£121.70	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
003	683-04511	BRAKE ASM DECK	£36.27	Add
004	683-04525	BRAKE ASM:YOKE:LH	£52.33	Add
005	683-04598A		N/A	POA
006	710-0376	SCREW HEX CAP 5/16	£9.02	Add
007	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
011	710-1003	SCR:B:#10-16:0.625:HXINDWSH:SP	£3.31	Add
012	710-3005	BOLT	£3.24	Add
013	710-3144	SCREW	£3.28	Add
014	710-3178	BOLT SHORT NECK CARR	£11.46	Add
015	712-0229	NUT PUSH	£5.20	Add
016	712-04063	FLANGED NUT	£4.20	Add
017	712-04065	NUT	£4.02	Add
018	712-05134	BLADE NUT	£3.81	Add
019	712-04243	NUT	£5.00	Add
020	714-0220A	PIN:LYNCH:.1875	£7.99	Add
021	714-0470	COTTER PIN	£5.07	Add
022	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
023	720-05010	CAP VINYL	£4.62	Add
024	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
025	731-06496	COVER DECK BELT 46"	£28.82	Add
026	731-07487	NOZ:DECK WSH	£16.29	Add
027	732-0384	EXT SPRING	£15.79	Add
028	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
029	732-04840	TORSION SPRING	N/A	POA
030	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
031	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
032	736-0119	LOCK WASHER 5/16	£3.33	Add
033	736-0179	WASHER-FL	£14.34	Add
034	736-0300	WASHER	£2.81	Add
035	736-0317	BELLE WASHER	£8.58	Add
036	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
037	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
038	738-0373	AXLE BOLT	£6.84	Add
039	738-04162C	SPACER	£4.64	Add
040	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
041	738-3056	SHOULDER BOLT	£12.94	Add
042	742-04312	BLADE 21,23"	£57.87	Add
043	747-04944B	ROD:LIFT:DECK:SMALL	£37.79	Add
044	747-05011	ROD BELT KEEPER	N/A	POA
045	747-05105B	ROD:BRAKE	£29.58	Add
046	747-05171A	BELT KEEPER ROD	£35.76	Add
047	747-05323	ROD BELT KEEPER	N/A	POA
048	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
049	748-04272		N/A	POA
050	751B221535	CLAMP-CASING	£3.00	Add
051	754-04060C	BELT	£62.72	Add
052	753-08171	KIT IDLER PULLEY	£37.57	Add
053	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
054	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
055	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
056	783-05946	BRACKET-IDLER PIVOT	£23.64	Add
057	783-06243637	BRACKET ENGAGE CABLE	£25.70	Add
058	783-06368A		N/A	POA
059	783-06632		N/A	POA
060	783-06643		N/A	POA
061	783-07236	PULLEY CAP	£10.42	Add
