MTD007953

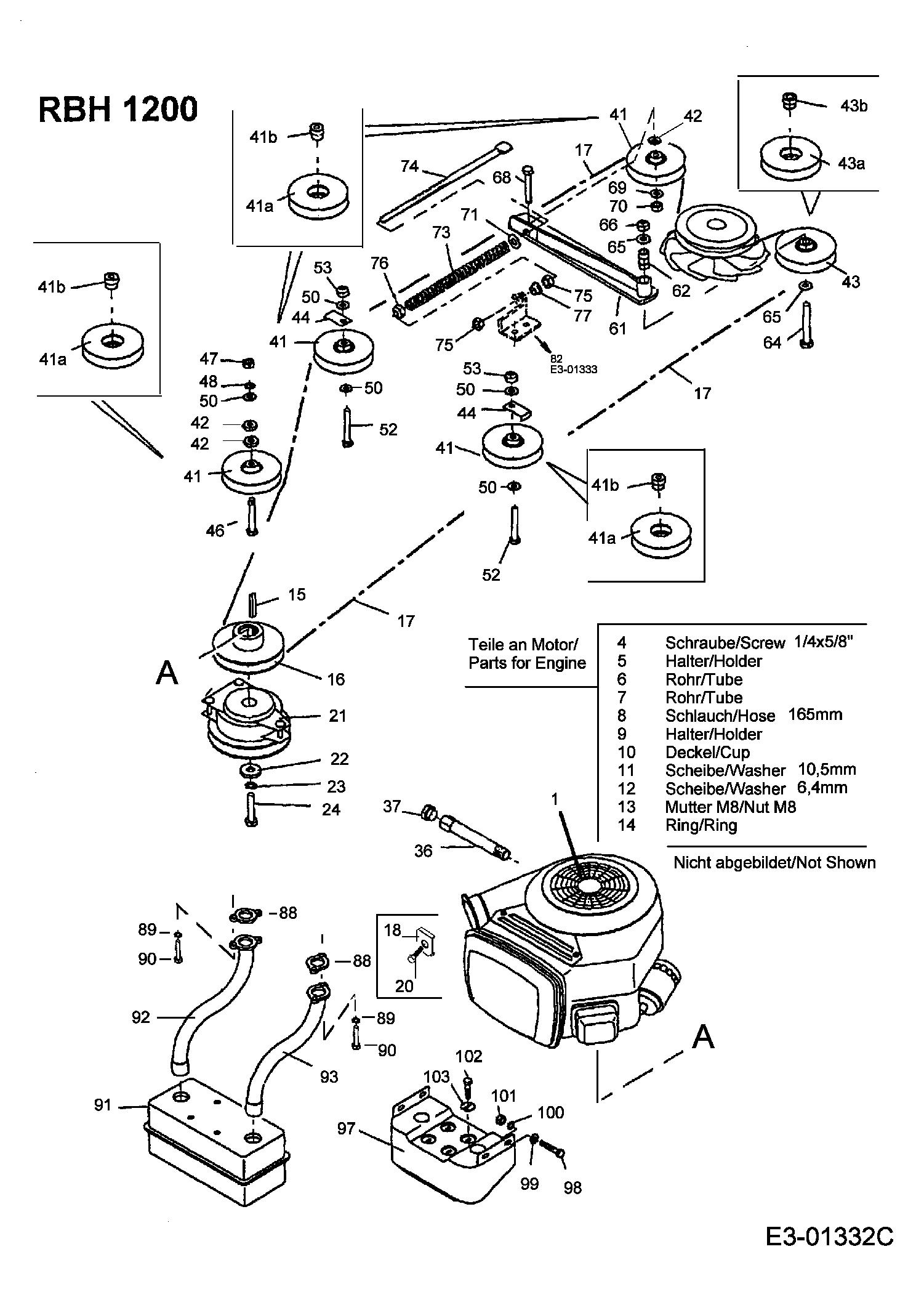

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	752B0128E1	MOTOR B&S 22.0HP INTEC TWN 12V	£2,697.87	Add
004	WI-022115		N/A	POA
005	WI-E4464		N/A	POA
006	WI-E4466		N/A	POA
007	WI-D3310		N/A	POA
008	WI-Y0641		N/A	POA
009	WI-E4468		N/A	POA
010	WI-025632	CLAMP, CART EXTENSION	N/A	POA
011	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
012	736-0668	WASHER	£2.23	Add
013	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
014	WI-088005		N/A	POA
015	WI-E3000	KEY	£12.67	Add
016	WI-E0710	PULLEY (RED)	£135.14	Add
017	WI-22661	BELT	£67.37	Add
018	751B221535	CLAMP-CASING	£3.00	Add
020	710-1237	SCREW SELF TAP	£3.00	Add
021	WI-17570	NO LONGER AVAILABLE	N/A	POA
022	WI-E3019	WASHER	£10.66	Add
023	24.8196.25	FEDERRING DIN 7980	N/A	POA
024	WI-19154	SCREW	£10.03	Add
036	WI-D3637	TUBE	£149.88	Add
037	090.03.077	Oil drain plug	£12.27	Add
041	WI-E3001	NLA 28/09/21 - PULLEY	£125.55	Add
042	WI-E0712	TUBE	£12.47	Add
043	WI-E3002	PULLEY	£146.77	Add
044	WI-E2985	BELT GUIDE	£8.58	Add
046	710-1703	Screw 21.1443.77	£3.39	Add
047	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
048	736-0665	LOCK WASHER 24.8196.18	£3.34	Add
050	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
052	710-1764	SCREW:DIN 931-8.8:M10X70 21.1443.76	£4.36	Add
053	712-0692	HEX NUT	£3.10	Add
061	WI-E4195	TENSION ARM	£60.08	Add
062	WI-E2998	NO LONGER AVAILABLE	N/A	POA
064	710-1735	SCREW M10x60-8.8 DIN 931	£4.92	Add
065	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
066	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
068	710-1703	Screw 21.1443.77	£3.39	Add
069	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
070	712-0692	HEX NUT	£3.10	Add
071	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
073	WI-29801	SPRING (RED)	£6.94	Add
074	WI-E3848	BAR	£13.40	Add
075	24.1423.22	Nut	£3.49	Add
076	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
077	WI-E3851	SPACER	£19.05	Add
088	WI-D3995	GASKET MUFFLER	£48.78	Add
089	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add
090	WI-014823	SCREW	£9.23	Add
091	WI-22962	NO LONGER AVAILABLE	N/A	POA
092	WI-E4477	PIPE-EXHAUST RH	N/A	POA
093	WI-E4476	EXHAUST TUBE L.H.	N/A	POA
097	WI-E4462		N/A	POA
098	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
099	736-0700	FLAT WASHER	£2.63	Add
100	736-0665	LOCK WASHER 24.8196.18	£3.34	Add
101	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
102	WI-25674	NO LONGER AVAILABLE	N/A	POA
103	WI-D3624	WASHER	£15.39	Add
41a	WI-E3001	NLA 28/09/21 - PULLEY	£125.55	Add
41b	WI-E3003	INSERT	£20.58	Add
43a	WI-E3001	NLA 28/09/21 - PULLEY	£125.55	Add
43b	WI-E3004	PULLEY (RED)	£20.58	Add
