FG011_0040

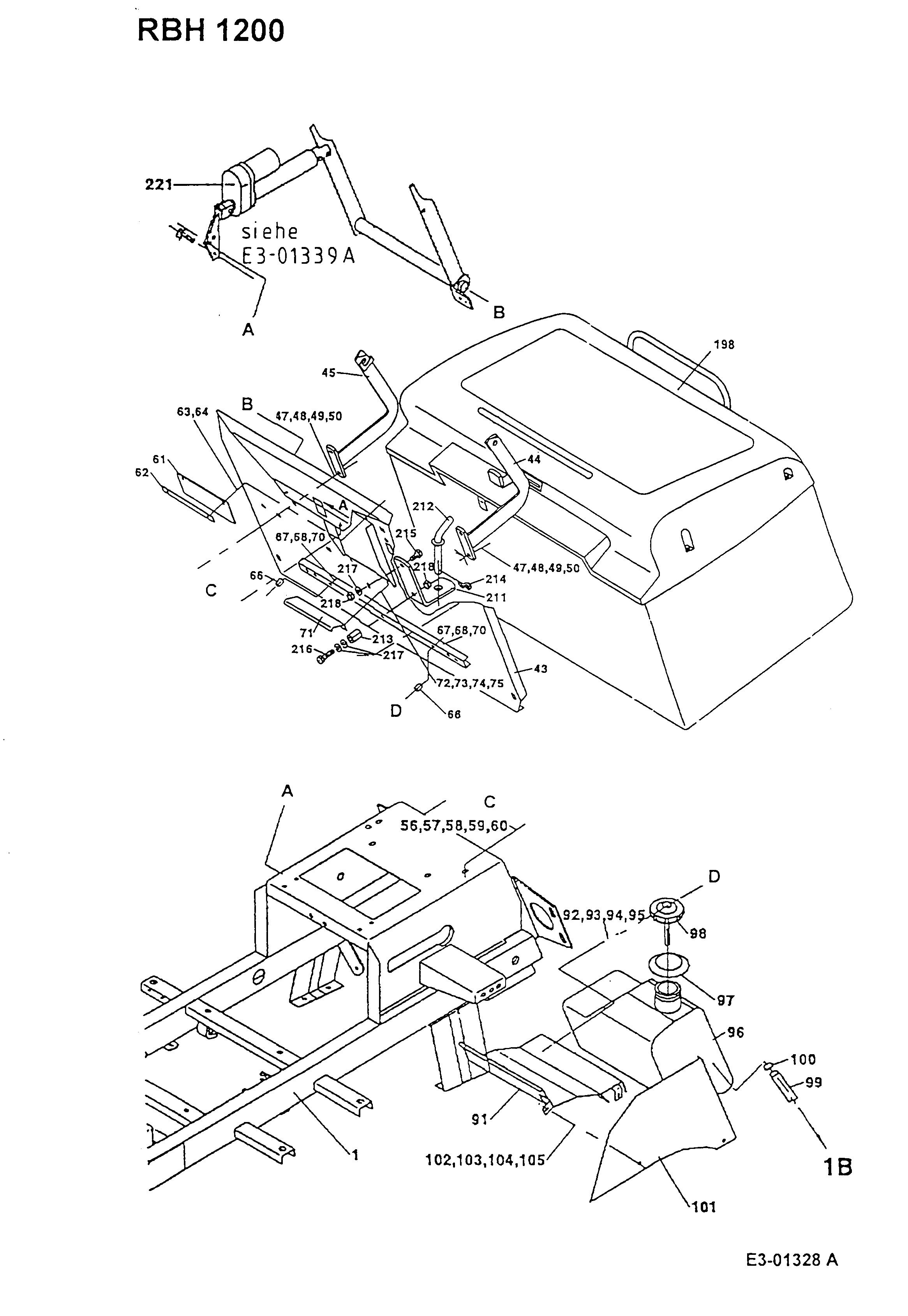

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG011_0040

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 WI-E2792 FRAME £1,003.39 Add
043 WI-E3515 NO LONGER AVAILABLE N/A POA
044 WI-E3350 CHUTE £106.82 Add
045 WI-E3351 ARMS BOX £98.88 Add
047 21.1441.91 NO LONGER AVAILABLE N/A POA
048 WI-E3019 WASHER £10.66 Add
049 24.8196.22 LOCK WASHER £4.69 Add
050 712-0635 NUT M10-8 DIN 934 £2.93 Add
056 710-1727 Screw 22.3419.25 £3.34 Add
057 736-0692 Flat Washer, 3/8" 43070 £3.20 Add
058 736-0700 FLAT WASHER £2.63 Add
059 736-0665 LOCK WASHER 24.8196.18 £3.34 Add
060 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
061 WI-E0537 DIAPHRAGM £18.43 Add
062 WI-E0549 SHIM £11.39 Add
063 710-1761 BOLT:CRG:M6-1x16mm LG DIN 603 £3.05 Add
064 712-0691 HEX NUT M6 DIN 985 £2.66 Add
066 WI-Y0203 SPACER £11.39 Add
067 710-1764 SCREW:DIN 931-8.8:M10X70 21.1443.76 £4.36 Add
068 736-0700 FLAT WASHER £2.63 Add
070 712-0692 HEX NUT £3.10 Add
071 WI-E3883 SLIDE £10.11 Add
072 710-1761 BOLT:CRG:M6-1x16mm LG DIN 603 £3.05 Add
073 736-0668 WASHER £2.23 Add
074 24.4417.14 Wing nut N/A POA
075 736-0700 FLAT WASHER £2.63 Add
077 WI-E3514 SPRING LEVER £17.82 Add
078 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
079 712-0691 HEX NUT M6 DIN 985 £2.66 Add
091 WI-E2963 COVER £66.92 Add
092 710-1690 HHCS:M6-1:16.00 £3.39 Add
093 736-0668 WASHER £2.23 Add
094 24.8196.14 NO LONGER AVAILABLE N/A POA
095 24.1421.64 Nut £2.28 Add
096 WI-E2960 FUEL TANK £127.49 Add
097 WI-22290 NO LONGER AVAILABLE N/A POA
098 WI-22612 FUEL CAP £96.81 Add
099 WI-Y0237 HOSE £58.56 Add
100 WI-25632 CLIP £3.96 Add
101 WI-E2968 COVER £79.22 Add
102 21.1451.45 Screw £4.00 Add
103 736-0668 WASHER £2.23 Add
104 24.8196.14 NO LONGER AVAILABLE N/A POA
105 24.1421.64 Nut £2.28 Add
198 WI-Y0590 CATCHER ASSY COMPLETE RBH1200 £940.19 Add
211 WI-E1877 FOOT £15.13 Add
212 WI-D0616 PIN (RED) £6.14 Add
213 WI-Y0203 SPACER £11.39 Add
214 WI-41479 SPLINT PIN £6.32 Add
215 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £3.24 Add
216 710-1764 SCREW:DIN 931-8.8:M10X70 21.1443.76 £4.36 Add
217 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
218 712-0692 HEX NUT £3.10 Add
