FG011_0050

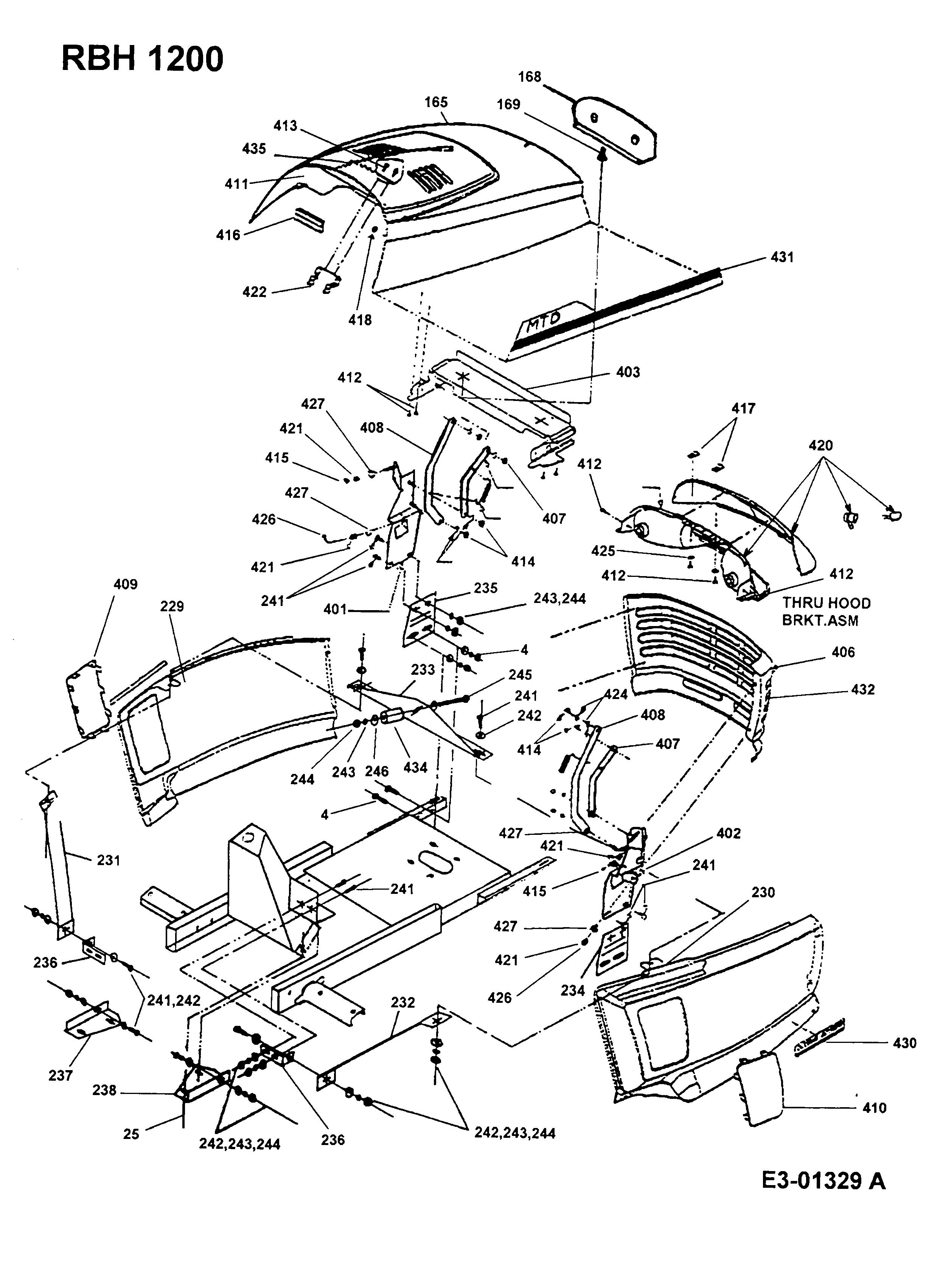

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG011_0050

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
165 703-05000A-C HOOD 759-3865 £203.35 Add
168 WI-E4149 DIAPHRAGM £33.04 Add
169 WI-25674 NO LONGER AVAILABLE N/A POA
229 703-2397499 NO LONGER AVAILABLE N/A POA
230 703-2396499 SIDE FRAME RIGHT 703-2396 £144.61 Add
231 WI-E4111 SUPPORT £15.54 Add
232 WI-E4112 SUPPORT £15.54 Add
233 WI-E4113 FOC PART DNR £16.73 Add
234 WI-E4115 BRACKET £14.27 Add
235 WI-E4116 BRACKET £13.64 Add
236 WI-E4117 FOOT £9.59 Add
237 WI-E4118 HOLDER £14.35 Add
238 WI-E4119 HOLDER £14.35 Add
241 710-1690 HHCS:M6-1:16.00 £3.39 Add
242 736-0668 WASHER £2.23 Add
243 24.8196.14 NO LONGER AVAILABLE N/A POA
244 24.1421.64 Nut £2.28 Add
245 710-1391 Screw 21.1443.55 £4.00 Add
246 736-0670 WASHER 6,4 DIN 7349-St £2.93 Add
401 603-0211 BRACKET,GRILLE LH £41.70 Add
402 603-0212-Z BRACKET,GRILL RH 603-0212 £56.23 Add
403 603-0583 SHIELD-HEAT £69.36 Add
406 703-2398499 GRILLE 703-2398 £133.75 Add
407 703-2465 LINK,SHORT HOOD £7.48 Add
408 703-2466 LINK LONG -HOOD £5.52 Add
409 703-2495 NO LONGER AVAILABLE N/A POA
410 703-2496499 SCREEN RIGHT 703-2496 £54.12 Add
411 703-2563A BULKHEAD-UPPER £52.69 Add
412 710-1388 SCREW £3.23 Add
413 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
414 712-3027 LOCK NUT £2.79 Add
415 712-3087 WING NUT £3.62 Add
416 111.11.114 NO LONGER AVAILABLE N/A POA
417 726-0139 SPEED NUT 10Z U-TYPE £3.39 Add
418 726-3047 PUSH NUT £3.48 Add
420 625-04001A HEADLIGHT ASM FRONT:CUB LT/GT £127.55 Add
421 732-0334 COMPRESSION SPRING £3.39 Add
422 732-0855A SPEED CLIP £16.82 Add
424 736-0175 SPRING WASHER £3.39 Add
425 736-0400 FLAT WASHER .194x.620Dx.63TH £3.77 Add
426 738-3141 BOLT,SHOULDER £8.03 Add
427 748-3055 BUSHING, TAPERED £5.62 Add
430 777D02836 NO LONGER AVAILABLE N/A POA
431 777D02837 NO LONGER AVAILABLE N/A POA
431 777D02839 NO LONGER AVAILABLE N/A POA
432 777I20314 NO LONGER AVAILABLE N/A POA
434 731-3232 ROLLER,HOOD LATCH £19.48 Add
435 722-3021 ADHESIVE TAPE 9 " N/A POA
