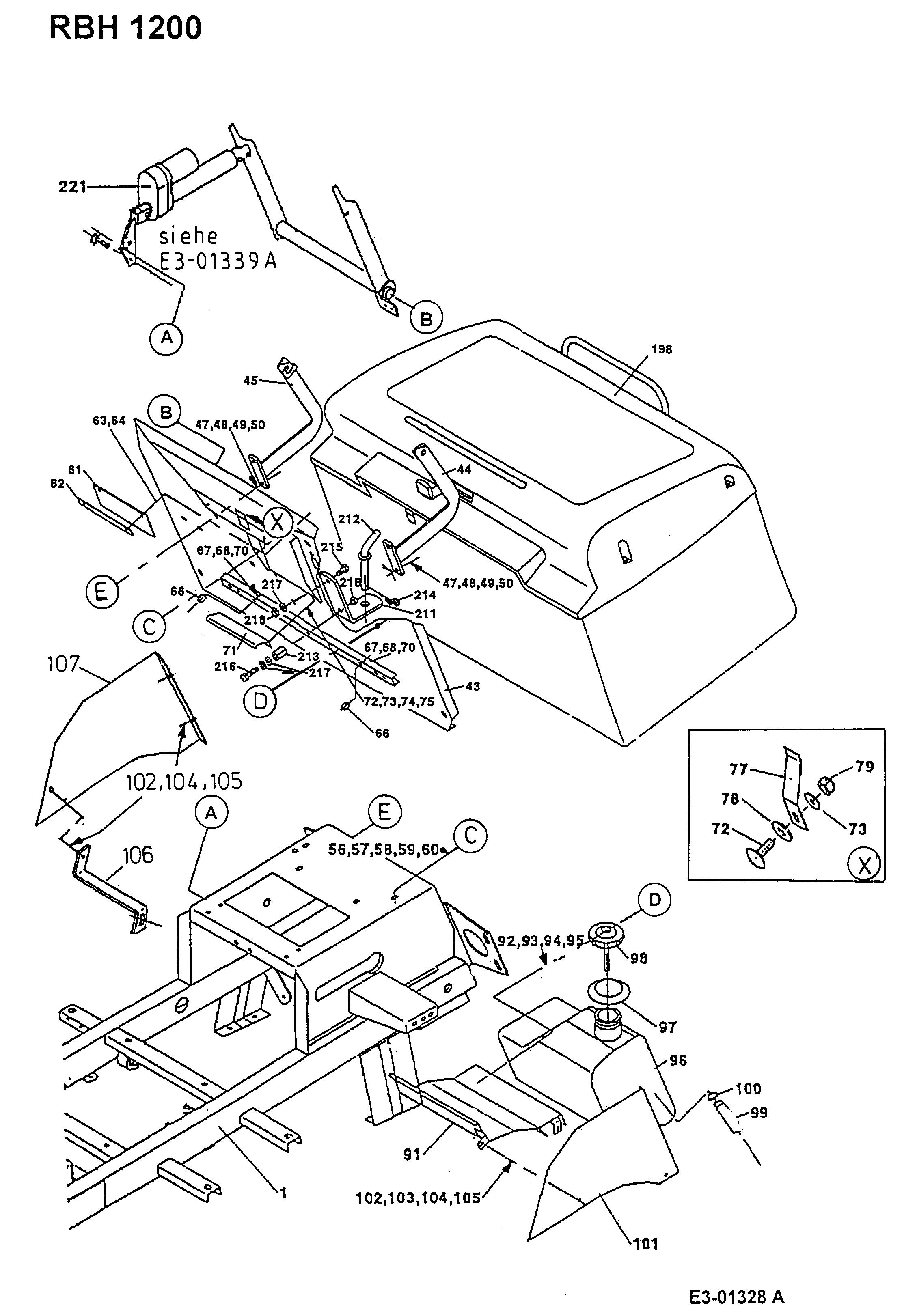

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	WI-E2792	FRAME	£1,003.39	Add
043	WI-E3515	NO LONGER AVAILABLE	N/A	POA
044	WI-E3350	CHUTE	£106.82	Add
045	WI-E3351	ARMS BOX	£98.88	Add
047	21.1441.91	NO LONGER AVAILABLE	N/A	POA
048	WI-E3019	WASHER	£10.66	Add
049	24.8196.22	LOCK WASHER	£4.69	Add
050	712-0635	NUT M10-8 DIN 934	£2.93	Add
056	710-1727	Screw 22.3419.25	£3.34	Add
057	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
058	736-0700	FLAT WASHER	£2.63	Add
059	736-0665	LOCK WASHER 24.8196.18	£3.34	Add
060	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
061	WI-E0537	DIAPHRAGM	£18.43	Add
062	WI-E0549	SHIM	£11.39	Add
063	710-1761	BOLT:CRG:M6-1x16mm LG DIN 603	£3.05	Add
064	712-0691	HEX NUT M6 DIN 985	£2.66	Add
066	WI-Y0203	SPACER	£11.39	Add
067	710-1764	SCREW:DIN 931-8.8:M10X70 21.1443.76	£4.36	Add
068	736-0700	FLAT WASHER	£2.63	Add
070	712-0692	HEX NUT	£3.10	Add
071	WI-E3883	SLIDE	£10.11	Add
072	710-1761	BOLT:CRG:M6-1x16mm LG DIN 603	£3.05	Add
073	736-0668	WASHER	£2.23	Add
074	24.4417.14	Wing nut	N/A	POA
075	736-0700	FLAT WASHER	£2.63	Add
077	WI-E3514	SPRING LEVER	£17.82	Add
078	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
079	712-0691	HEX NUT M6 DIN 985	£2.66	Add
091	WI-E2963	COVER	£66.92	Add
092	710-1690	HHCS:M6-1:16.00	£3.39	Add
093	736-0668	WASHER	£2.23	Add
094	24.8196.14	NO LONGER AVAILABLE	N/A	POA
095	24.1421.64	Nut	£2.28	Add
096	WI-E2960	FUEL TANK	£127.49	Add
097	WI-22290	NO LONGER AVAILABLE	N/A	POA
098	WI-22612	FUEL CAP	£96.81	Add
099	WI-Y0237	HOSE	£58.56	Add
100	WI-25632	CLIP	£3.96	Add
101	WI-E2968	COVER	£79.22	Add
102	21.1451.45	Screw	£4.00	Add
103	736-0668	WASHER	£2.23	Add
104	24.8196.14	NO LONGER AVAILABLE	N/A	POA
105	24.1421.64	Nut	£2.28	Add
106	WI-E2969	HOLDER	£10.87	Add
107	WI-E2970	COVER R.H.	N/A	POA
198	WI-Y0590	CATCHER ASSY COMPLETE RBH1200	£940.19	Add
211	WI-E1877	FOOT	£15.13	Add
212	WI-D0616	PIN (RED)	£6.14	Add
213	WI-Y0203	SPACER	£11.39	Add
214	WI-41479	SPLINT PIN	£6.32	Add
215	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
216	710-1764	SCREW:DIN 931-8.8:M10X70 21.1443.76	£4.36	Add
217	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
218	712-0692	HEX NUT	£3.10	Add
