FG019_0090

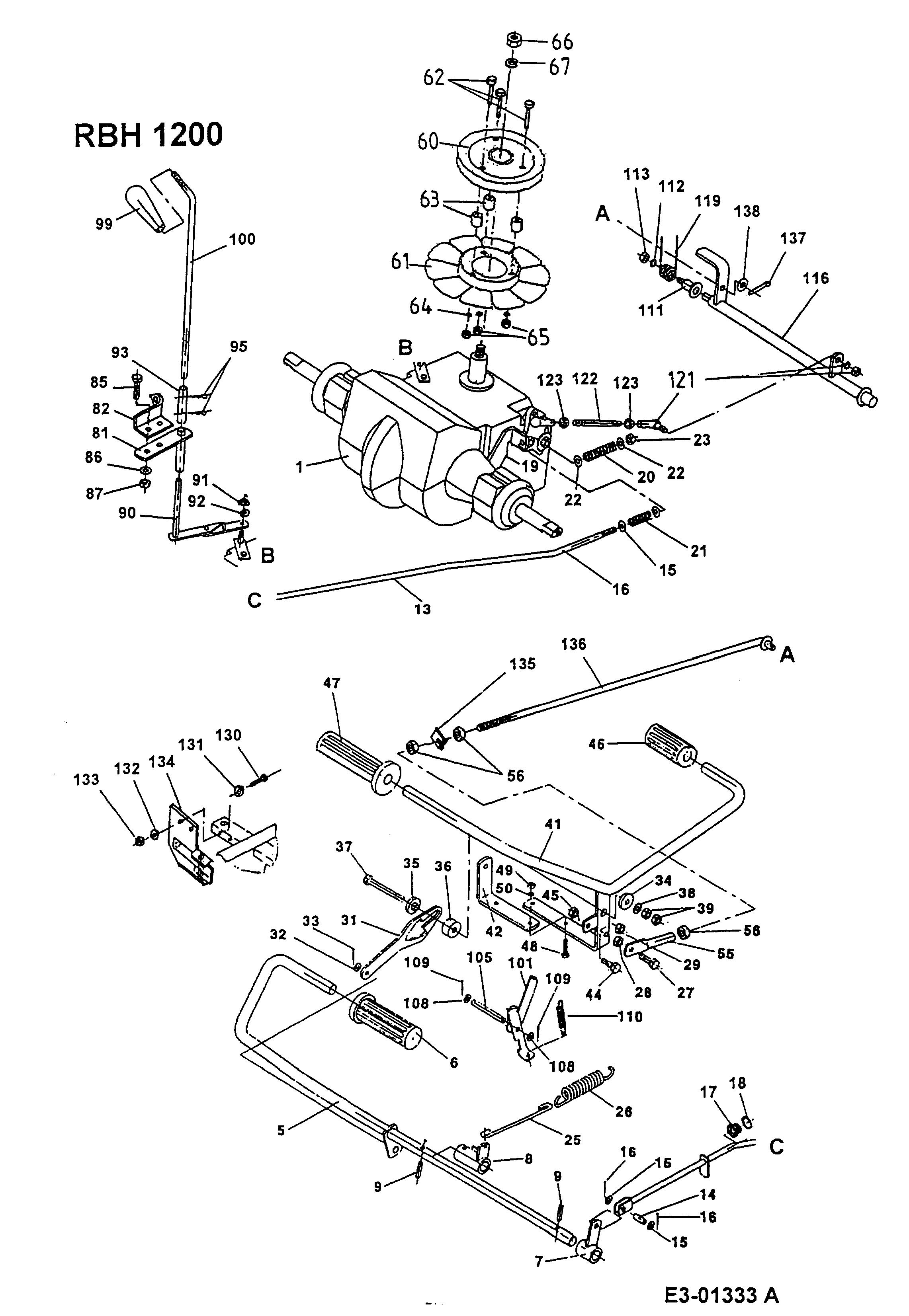

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-0262	NO LONGER AVAILABLE	N/A	POA
005	WI-E4174	LEVER RBH 1200	£100.60	Add
006	WI-8125	PEDAL	N/A	POA
007	WI-E0441	LEVER	£38.82	Add
008	WI-E0447	STOP	£73.09	Add
009	25.3198.08	NO LONGER AVAILABLE	N/A	POA
013	WI-E0438	TUBE-TONGUE	N/A	POA
014	WI-E0437	Bolt	N/A	POA
015	736-0700	FLAT WASHER	£2.63	Add
016	24.6488.29	Pin	£3.32	Add
017	WI-E0451	BUSH	£32.49	Add
018	28.3591.16	Circlip	£3.70	Add
019	WI-E3318	LEVER	£38.88	Add
020	WI-18880	NO LONGER AVAILABLE	N/A	POA
021	WI-81474	NO LONGER AVAILABLE	N/A	POA
022	736-0700	FLAT WASHER	£2.63	Add
023	712-0692	HEX NUT	£3.10	Add
025	WI-E0436	HOOK	£19.89	Add
026	WI-8051	SPRING	£8.32	Add
027	21.1443.74	Screw	N/A	POA
028	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
029	712-0692	HEX NUT	£3.10	Add
031	WI-E0452	GATE	£24.86	Add
032	736-0700	FLAT WASHER	£2.63	Add
033	24.6488.21	NO LONGER AVAILABLE	N/A	POA
034	WI-E3317	WASHER	£23.71	Add
035	WI-E0475	WASHER	N/A	POA
036	WI-E0476	INSERT	N/A	POA
037	21.1443.88	Screw	£7.00	Add
038	736-0700	FLAT WASHER	£2.63	Add
039	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
041	WI-E4187	PEDAL	N/A	POA
042	WI-E0466	HOLDER	£22.31	Add
044	WI-E0478	FINGER	£12.36	Add
045	712-0692	HEX NUT	£3.10	Add
046	WI-40614	NO LONGER AVAILABLE	N/A	POA
047	WI-8135	PEDAL	N/A	POA
048	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
049	24.8196.14	NO LONGER AVAILABLE	N/A	POA
050	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
055	WI-E3310	DRAW. ROD	£36.36	Add
056	712-0635	NUT M10-8 DIN 934	£2.93	Add
060	HG-50302	NO LONGER AVAILABLE	N/A	POA
061	WI-E4186	FAN	£86.89	Add
062	HG-44276	BOLT (RED)	£10.69	Add
063	HG-50259	SPACER (RED)	£7.41	Add
064	HG-43177	L-WAS.1/4"I.D.	£5.62	Add
065	HG-43178	NUT (RED)	£10.69	Add
066	712-0333	NUT:HEX:1/2-20:GR2	£3.20	Add
067	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add
081	WI-E3306	LEVER	£27.97	Add
082	WI-E3856	PLATE	N/A	POA
085	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
086	736-0700	FLAT WASHER	£2.63	Add
087	712-0692	HEX NUT	£3.10	Add
090	WI-E0818	LEVER	£49.34	Add
091	712-3027	LOCK NUT	£2.79	Add
092	736-0668	WASHER	£2.23	Add
093	WI-E0471	COLLER	£21.74	Add
095	WI-41479	SPLINT PIN	£6.32	Add
099	WI-614892	GRIP	£4.92	Add
100	WI-E0821	CONTROL LEVER	£12.97	Add
101	WI-E4126	LEVER (RED)	£30.68	Add
105	WI-E0823	PIN	£35.65	Add
108	736-0700	FLAT WASHER	£2.63	Add
109	24.6488.29	Pin	£3.32	Add
110	WI-681046	Spring	N/A	POA
111	WI-E0831	SCREW	£36.63	Add
112	736-0665	LOCK WASHER 24.8196.18	£3.34	Add
113	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
116	WI-E3503	SHAFT	N/A	POA
119	WI-18894	SPRING	£11.00	Add
121	WI-580575	BALL JOINT (RED)	£19.77	Add
122	WI-E3512	DRAW.ROD	£39.98	Add
123	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
130	710-1690	HHCS:M6-1:16.00	£3.39	Add
131	736-0670	WASHER 6,4 DIN 7349-St	£2.93	Add
132	24.8196.14	NO LONGER AVAILABLE	N/A	POA
133	24.1421.64	Nut	£2.28	Add
134	WI-E4125	NO LONGER AVAILABLE	N/A	POA
135	WI-E4131	FOOT	£7.00	Add
136	WI-E4130	DRAW ROD	£33.92	Add
137	24.6488.52	SPLINT DIN 94	N/A	POA
138	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
