FG019_0100

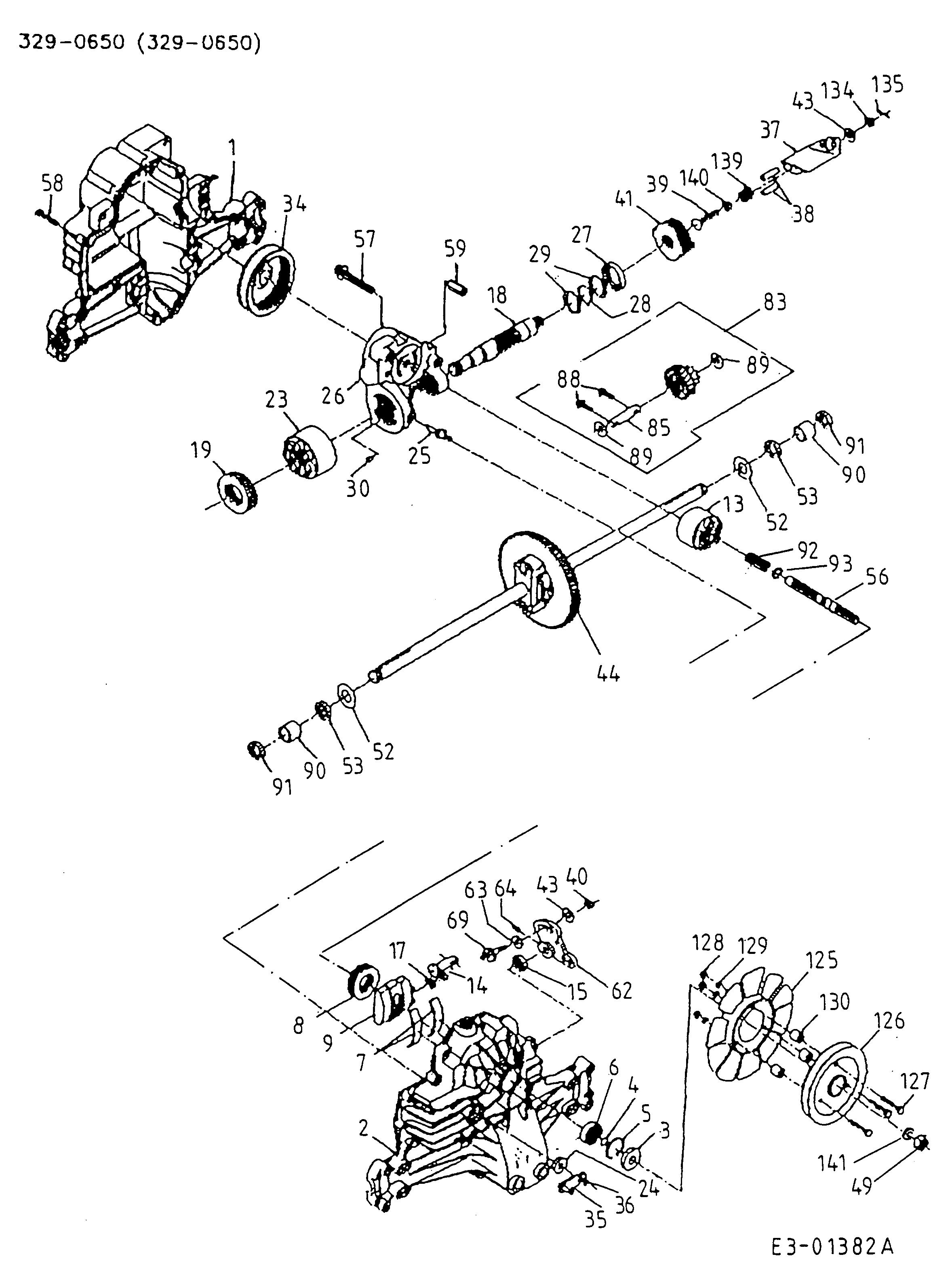

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	50074RM	HOUSING, LOWER	N/A	POA
002	70255	UPPER HOUSING, ASSY.	N/A	POA
003	9008000-0128	(OBSOLETE)	N/A
004	2003016	RING, WIRE RETAINING	N/A	POA
005	2003052	RING RETAINING	N/A	POA
006	2003043	BEARING	N/A	POA
007	2003023	CRADLE BEARING	N/A	POA
008	50551	BEARING, 30X52X13 THRUST	£68.32	Add
009	2003087	SWASHPLATE -VARIABLE	N/A	POA
013	70079	BLOCK-CYLINDER ASSY.	N/A	POA
014	2003005	ARM -TRUNNION	N/A	POA
015	9008000-0126	Gasket (OBSOLETE)	N/A
017	2000015	GUIDE -SLOT	N/A	POA
018	50449	SHAFT -MOTOR	N/A	POA
019	50552	THRUST BEARING 42X68X16	N/A	POA
023	70082	BLOCK-CYLINDER (MOTOR) ASSY.	N/A	POA
024	45074	SEAL -LIP 10X25X7	N/A	POA
025	2003555	ACTUATOR-BYPASS	N/A	POA
026	70250	CENTER SECTION ASSY.	N/A	POA
027	45075	SEAL -LIP 26X42X8	N/A	POA
028	50007	SCREW	£1.50	Add
029	44872	WASHER 26X35X1	N/A	POA
030	2003554	BYPASS PLATE	N/A	POA
034	44964-AF	STRAP:LIFT HANDLE SUPPORT 44964	£19.44	Add
035	50270	ARM -BYPASS	N/A	POA
036	44870	RING -RETAINING	N/A	POA
037	23710	ARM -ACTUATING	N/A	POA
038	44891	PIN -ACTUATING	N/A	POA
039	50316	BOLT 5/16-18 X 1-3/4	N/A	POA
040	50317-	CIRCLIP	£2.16	Add
041	70135	TUBE HANDLE ASSY.	N/A	POA
043	44130	FLAT - WASHER 11/32 I. D. X 7/8 O. D	£3.20	Add
044	70226	DIFFERENTIAL ASSY.	£2.39	Add
049	712-0333	NUT:HEX:1/2-20:GR2	£3.20	Add
052	44875	WASHER, 3/4 ID X 1-1/2 OD X .13 THK	£8.58	Add
053	HG-45076P	SEAL	£16.75	Add
056	50005	SHAFT -INPUT	£1.53	Add
057	50016	SCREW	£18.80	Add
058	44876	BOLT 1/4-20 X 1.38	N/A	POA
059	50002-	SCREW	£1.51	Add
062	45007	ARM -CONTROL	N/A	POA
063	50281	PUCK -DUMPENER	N/A	POA
064	50018	SET SCREW	N/A	POA
069	50426	STUD 5/16-24	N/A	POA
083	70292	JACK SHAFT / PINION GEAR ASSY.	N/A	POA
085	50559	JACK SHAFT	N/A	POA
088	HG-50154	CAPSCREW	£5.80	Add
089	50132	WASHER, HT .5 I. D. X 1 O.D. X .032	£2.61	Add
090	50118	NUT	£3.05	Add
091	50119	NUT	£2.76	Add
092	2003014	SPRING - HELICAL, COMPRESSION	N/A	POA
093	2003017	WASHER	N/A	POA
125	WI-E4186	FAN	£86.89	Add
126	HG-50302	NO LONGER AVAILABLE	N/A	POA
127	HG-44276	BOLT (RED)	£10.69	Add
128	HG-43178	NUT (RED)	£10.69	Add
129	43177-AF	Washer, Lock 1/4" I.D.* 43177	£3.08	Add
130	HG-50259	SPACER (RED)	£7.41	Add
134	44142	SLOTTED HEX NUT 5/16-24	£3.90	Add
135	44101-AF	Cotter Pin 3/32" x 3/4" Lg.* 44101	£3.91	Add
139	50431	COMPRESSION SPRING	N/A	POA
140	50269	NUT, HEX. 5/16-18	N/A	POA
141	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add
