FG026_0120

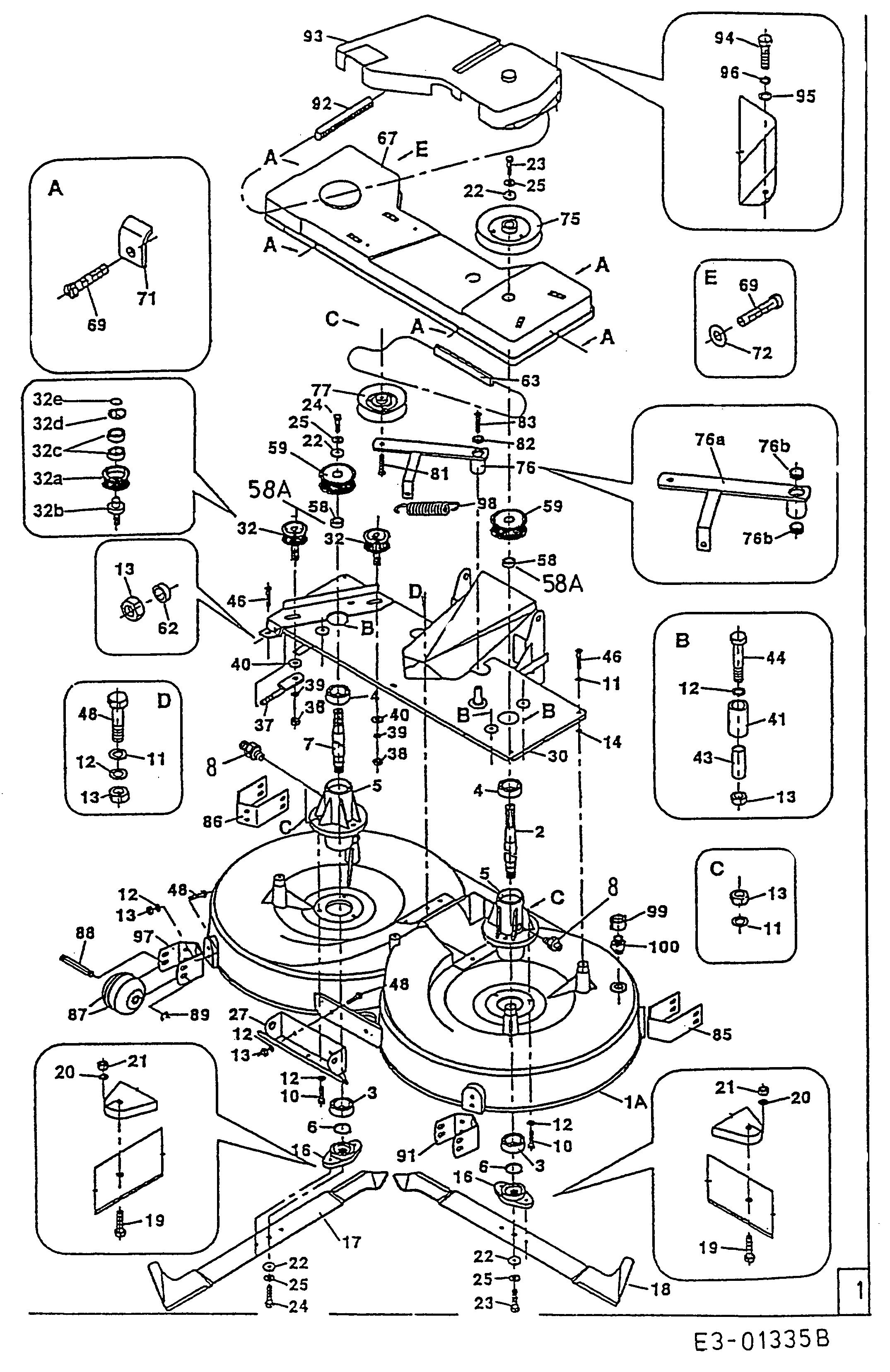

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	WI-E3565	NO LONGER AVAILABLE	N/A	POA
002	WI-D3189	SHAFT	£231.37	Add
003	26.1026.04	BEARING	£34.45	Add
004	26.1027.04	BALL BEARING	£27.74	Add
005	WI-D0046	HUB SPINDLE	£218.74	Add
006	716-04132	RING	£3.69	Add
007	WI-D3188	NO LONGER AVAILABLE	N/A	POA
008	WI-280145	GREASE NIPPLE	£5.63	Add
010	710-1764	SCREW:DIN 931-8.8:M10X70 21.1443.76	£4.36	Add
011	736-0695	WASHER	£3.97	Add
012	736-0700	FLAT WASHER	£2.63	Add
013	712-0692	HEX NUT	£3.10	Add
014	736-0665	LOCK WASHER 24.8196.18	£3.34	Add
016	WI-D0087	NO LONGER AVAILABLE	N/A	POA
017	742-0819	RBH 1200 - BLADE R/H	£57.88	Add
018	742-0820	BLADE-RBH1200 L/H	£57.88	Add
019	710-1399	SCREW HEX	£4.62	Add
01A	WI-E3565	NO LONGER AVAILABLE	N/A	POA
020	736-0668	WASHER	£2.23	Add
021	712-0691	HEX NUT M6 DIN 985	£2.66	Add
022	WI-D0881	WASHER	£16.38	Add
023	WI-16862	BOLT (RED)	£7.20	Add
024	WI-041744	NO LONGER AVAILABLE	N/A	POA
025	736-0690	Washer 24.6487.22	£4.35	Add
027	WI-E3595	SUPPORT	£88.27	Add
030	WI-E3586	NO LONGER AVAILABLE	N/A	POA
032	WI-E3682	PULLEY	£236.29	Add
037	WI-D3690	TIGHTENER	£35.25	Add
038	712-0635	NUT M10-8 DIN 934	£2.93	Add
039	24.8196.22	LOCK WASHER	£4.69	Add
040	WI-D0392	WASHER	£13.64	Add
041	WI-11600	BUSH	£7.99	Add
043	WI-D0049	BUSH	£22.16	Add
044	21.1443.78	Screw	£4.50	Add
046	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
048	710-1683	SCR:M8-1:30.00 LG:DIN 933	£3.20	Add
058	WI-D3199	SPACER	£23.21	Add
059	WI-E3685	PULLEY	£208.92	Add
062	WI-D3586	WASHER	N/A	POA
063	WI-40769	TIMING BELT	£197.83	Add
067	WI-E3575	COVER	£249.77	Add
069	22.5418.18	SCREW	N/A	POA
071	WI-E0672	WASHER	£16.44	Add
072	736-0697	Washer 24.6486.13	£2.79	Add
075	WI-D3331	NO LONGER AVAILABLE	N/A	POA
076	WI-E0673	ARM	£83.11	Add
077	WI-E3594	NLA 28/09/21 - PULLEY	£147.63	Add
081	22.1418.93	NO LONGER AVAILABLE	N/A	POA
082	WI-E0680	NO LONGER AVAILABLE	N/A	POA
083	22.1418.88	NO LONGER AVAILABLE	N/A	POA
085	WI-E3598	HOLDER RBH1200	£60.59	Add
086	WI-E3599	HOLDER RBH1200	£35.75	Add
087	WI-41752	NO LONGER AVAILABLE	N/A	POA
088	WI-D0048	PIN	£27.50	Add
089	28.3595.60	RING	£5.70	Add
091	WI-E3604	BRACKET	£42.40	Add
092	WI-49653	BELT	£113.40	Add
093	WI-18691	COVER	£98.06	Add
094	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add
095	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
096	736-0768	WASHER:LOCK:B5 DIN 127:	£3.05	Add
097	WI-E3605	BRACKET	£34.15	Add
098	WI-E2789	SPRING	£44.61	Add
099	WI-21064	NO LONGER AVAILABLE	N/A	POA
100	WI-26452	VALVE (RED)	£14.86	Add
32A	WI-E3683	ROLLER	£185.93	Add
32B	WI-E3693	PIN	£96.60	Add
32C	26.1027.02	BALL BEARING	£15.23	Add
32D	28.3592.35	NO LONGER AVAILABLE	N/A	POA
32E	28.3591.15	Retaining ring	£3.34	Add
58A	WI-E3697	SPACER	£53.35	Add
76A	WI-E0674	TENSION ARM (RED)	£72.83	Add
76B	WI-41062	BUSH	£14.34	Add
