MTD007581

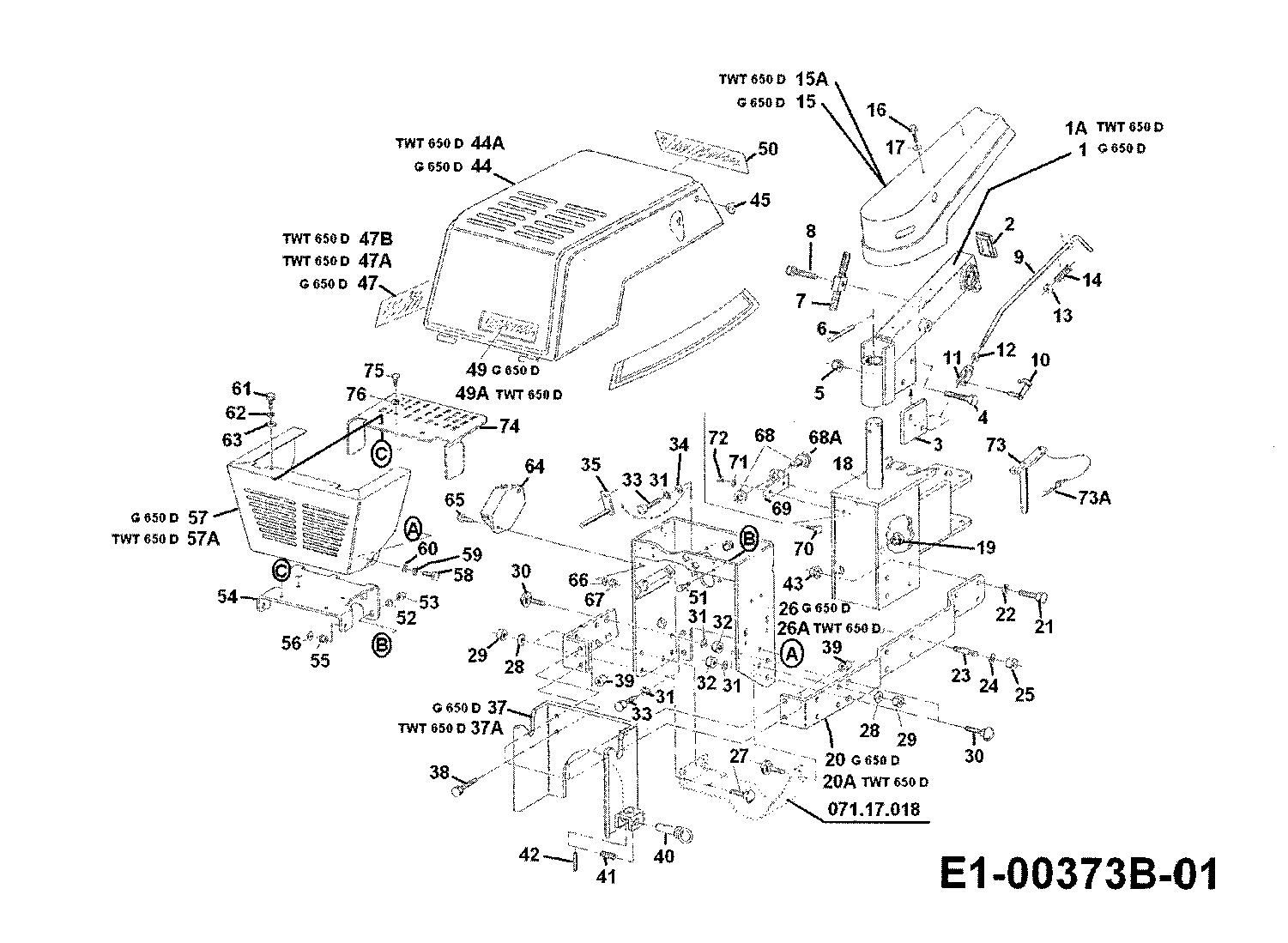

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.834	Lower handle	£251.63	Add
002	000.34.290	Plug	£15.29	Add
003	071.05.073	Plate	£32.13	Add
004	21.1441.92	Screw	£3.93	Add
005	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
006	25.3198.40	Spring pin	N/A	POA
007	079.05.515	CABLE PROTECTION (RED)	£10.93	Add
008	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add
009	071.05.074	TUBE-TONGUE	N/A	POA
010	726-0457	CLIP	£9.50	Add
011	711-1407	LINK	£14.01	Add
012	24.1423.18	NO LONGER AVAILABLE	N/A	POA
013	736-0700	FLAT WASHER	£2.63	Add
014	000.30.304	Compression spring	£10.27	Add
015	071.05.117	Protection	£136.54	Add
016	000.02.419	Screw	£2.91	Add
017	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
018	071.59.828	HECKRAHMEN M.ANH.KUPPL.VOLLST.	£228.13	Add
019	071.59.829	HECKRAHMEN VOLLST.	N/A	POA
01A	071.05.838	UNTERHOLM VOLLST.	N/A	POA
020	071.59.026	Support	£96.55	Add
021	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
022	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
023	23.2441.39	Stud	£3.96	Add
024	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
025	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
026	071.46.821	FRONTANBAURAHMEN VOLLST.	£201.94	Add
027	710-1687	BOLT	£3.26	Add
028	736-0700	FLAT WASHER	£2.63	Add
029	712-0691	HEX NUT M6 DIN 985	£2.66	Add
030	710-1727	Screw 22.3419.25	£3.34	Add
031	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
032	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
033	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add
034	736-0700	FLAT WASHER	£2.63	Add
035	021.20.806	RIEMENFUEHRUNG VOL.	£71.74	Add
037	071.59.814	Bracket	£141.78	Add
038	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
039	712-0692	HEX NUT	£3.10	Add
040	071.59.817	Fastening bolt	£79.21	Add
041	000.30.232	Compression spring	£15.09	Add
042	25.3197.98	Spring pin	£3.77	Add
043	23.8431.08	Nut	£4.85	Add
044	071.46.823	ABDECKHAUBE RAL 3000	£145.69	Add
045	000.34.048	Plug	£8.85	Add
047	777-5149	HOOD SIDE LABELS RIGHT/LEFT	N/A	POA
049	777-5148	FRONT PANEL LABEL	N/A	POA
050	000.50.537	Decal	£7.58	Add
051	710-1713	HHCS:M5x30:DIN 933-8.8 Zn5glcB 21.1441.47	£4.69	Add
052	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
053	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
054	071.46.815	Bracket assy.	£84.91	Add
055	000.24.072	Bushing	£7.29	Add
056	000.02.424	CAP RETAINER (RED)	£5.10	Add
057	071.46.039	Front chassis	£153.73	Add
058	710-1376	CAP SCREW	£4.50	Add
059	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
060	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
061	710-1690	HHCS:M6-1:16.00	£3.39	Add
062	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
063	736-0730	WASHER:DIN 125:A7.4	£3.05	Add
064	000.80.792	WECHSELSPANNUNGSREGLER	£135.08	Add
065	710-1725	SCREW HEX 21.1441.71	£3.85	Add
066	736-0700	FLAT WASHER	£2.63	Add
067	712-0692	HEX NUT	£3.10	Add
068	090.11.335	Wall plug	£23.71	Add
069	071.38.001	Plug holder	N/A	POA
070	710-1707	HEX. SCREW M5x12 DIN 933-8.8	£3.85	Add
071	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
072	712-0638	Nut 24.1421.12	£3.58	Add
073	071.59.907	BOLT	N/A	POA
074	071.46.057	ABDECKUNG	£71.26	Add
075	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
076	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
15A	071.05.123	HOLMABDECKUNG	N/A	POA
20A	071.59.053	SLEEVE HITCH BRACKET ASSEMBLY	N/A	POA
26A	071.46.826	FRONTANBAURAHMEN VOLLST.	N/A	POA
37A	071.59.830	KUPPELBUEGEL VOLLST.	N/A	POA
44A	071.46.827	HOOD	N/A	POA
47A	777-4834	LABEL	N/A	POA
47B	777-4833	SIDE-LABEL	N/A	POA
49A	777-4843	NAMENSSCHILD TWT 650 D	N/A	POA
57A	071.46.059	FRONT PANEL	N/A	POA
68A	090.11.335	Wall plug	£23.71	Add
73A	000.17.010	Spring pin	£5.41	Add
