MTD007582

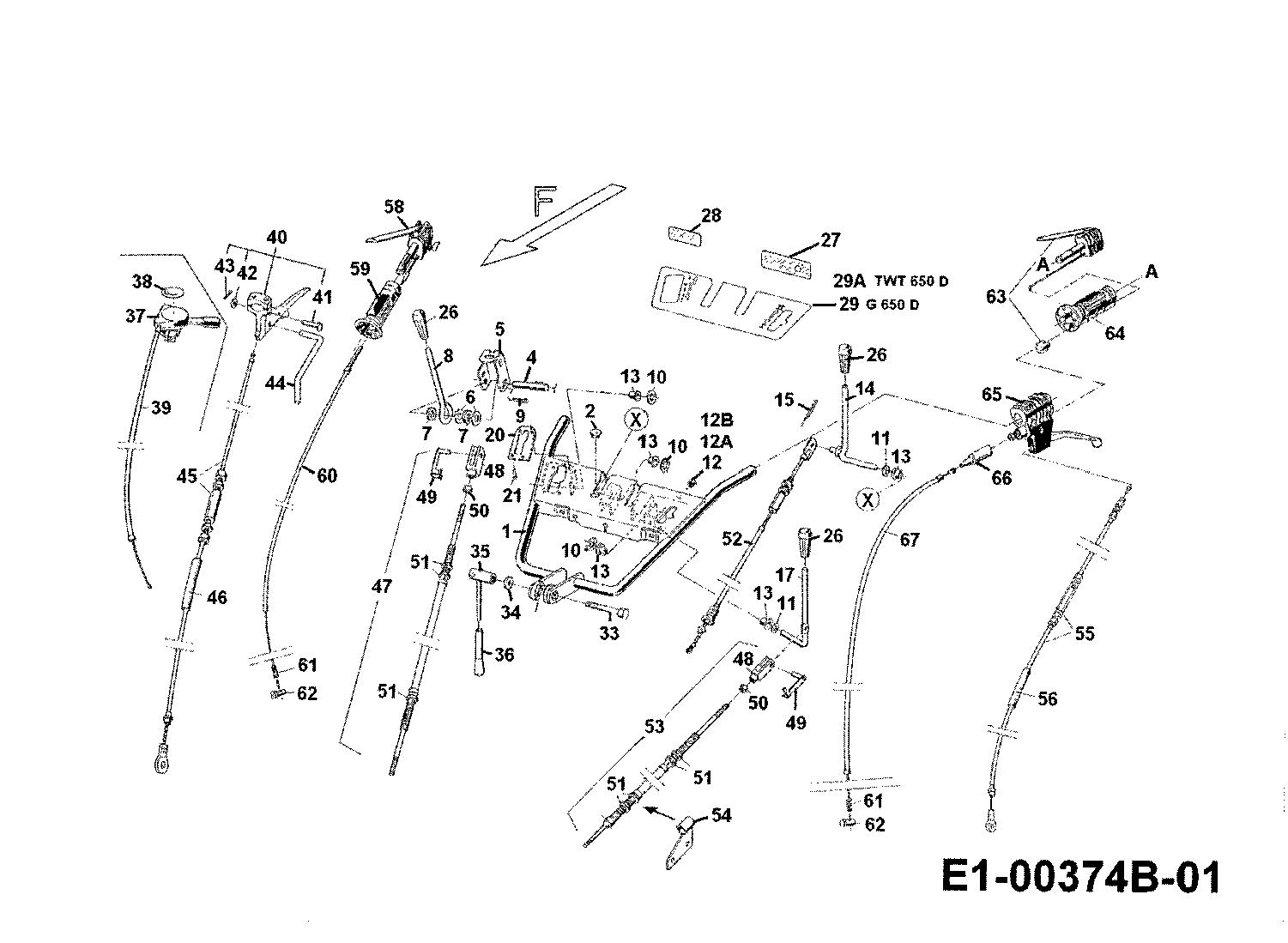

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.836	OBERHOLM VOLLST.	£302.72	Add
002	000.34.307	Cap	£5.81	Add
004	071.05.114	Axe	£48.36	Add
005	071.05.112	Guide bracket	£54.69	Add
006	736-0702	WASHER	£2.40	Add
007	000.37.472	Rubber washer	£9.92	Add
008	071.05.113	Lever-shifting	£19.29	Add
009	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
010	000.02.541	CLAMPING RING	£4.80	Add
011	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
012	000.34.282	Cap	N/A	POA
013	000.24.054	Bushing	£8.85	Add
014	071.05.833	Shift lever	£74.46	Add
015	24.6488.40	Pin	£2.93	Add
017	071.05.116	Shift lever	£64.06	Add
020	071.05.099	Shifting guidage	£117.97	Add
021	000.05.053	Rivet	£2.77	Add
026	000.36.051	Knob	£11.55	Add
027	000.50.861	INSTRUMENTENSCHILD LINKS	N/A	POA
028	000.50.862	INSTRUMENTENSCHILD RECHTS	N/A	POA
029	777-5141	LBLS:RDR:DASH:600 SRS W/AMP	N/A	POA
033	21.1444.25	Screw	£8.04	Add
034	736-0733	Washer 24.6486.25	£4.00	Add
035	071.05.819	Adjust nut	N/A	POA
036	000.36.055	Knob	£40.90	Add
037	000.09.270	REGULIERHEBEL FUER25	£36.68	Add
038	000.50.536	Decal	£7.58	Add
039	000.46.349	Bowden wire	£37.67	Add
040	000.09.271	NO LONGER AVAILABLE	N/A	POA
041	25.7428.08	NO LONGER AVAILABLE	N/A	POA
042	736-0668	WASHER	£2.23	Add
043	24.6488.21	NO LONGER AVAILABLE	N/A	POA
044	071.20.013	Shifting lock	£55.51	Add
045	000.46.380	NO LONGER AVAILABLE	N/A	POA
046	R00.37.522	SILIKONSCHLAUCH 25M-ROLLE	£7.35	Add
047	000.46.341	Bowden wire cpl.	£179.70	Add
048	28.6218.09	Fork	£10.03	Add
049	25.9425.03	BOLT	£10.62	Add
050	712-0638	Nut 24.1421.12	£3.58	Add
051	24.1424.22	Nut	£3.49	Add
052	000.46.376	Bowden wire	£83.17	Add
053	000.46.347	Bowden wire	£161.84	Add
054	071.59.816	Counter bearing	N/A	POA
055	000.46.383	BOWDENZUG	£87.32	Add
056	R00.37.522	SILIKONSCHLAUCH 25M-ROLLE	£7.35	Add
057	000.35.119	SEALING NUT	N/A	POA
058	000.46.392	SICHERHEITSHEBEL M.GEW.ANSCHL.	£48.52	Add
059	000.46.393	HANDGRIFF MIT EINSATZ	£30.45	Add
060	000.46.394	BOWDENZUG MIT GEWINDEANSCHL.	£30.70	Add
061	000.30.334	DRUCKFEDER 4.3x0.7x8.5x3.5	£8.38	Add
062	000.09.272	SCREW BARREL	N/A	POA
063	000.46.387	SICHERHEITSHEBEL M.GLEITSTEIN	£46.42	Add
064	000.46.388	HANDGRIFF	£18.28	Add
065	000.46.389	KUPPLUNGSHEBEL	£90.85	Add
066	000.46.390	NO LONGER AVAILABLE	N/A	POA
067	000.46.391	NO LONGER AVAILABLE	N/A	POA
12A	000.34.262	Cap	£3.49	Add
12B	000.34.049	Cap	N/A	POA
29A	777-6179	LABEL	N/A	POA
