MTD007656

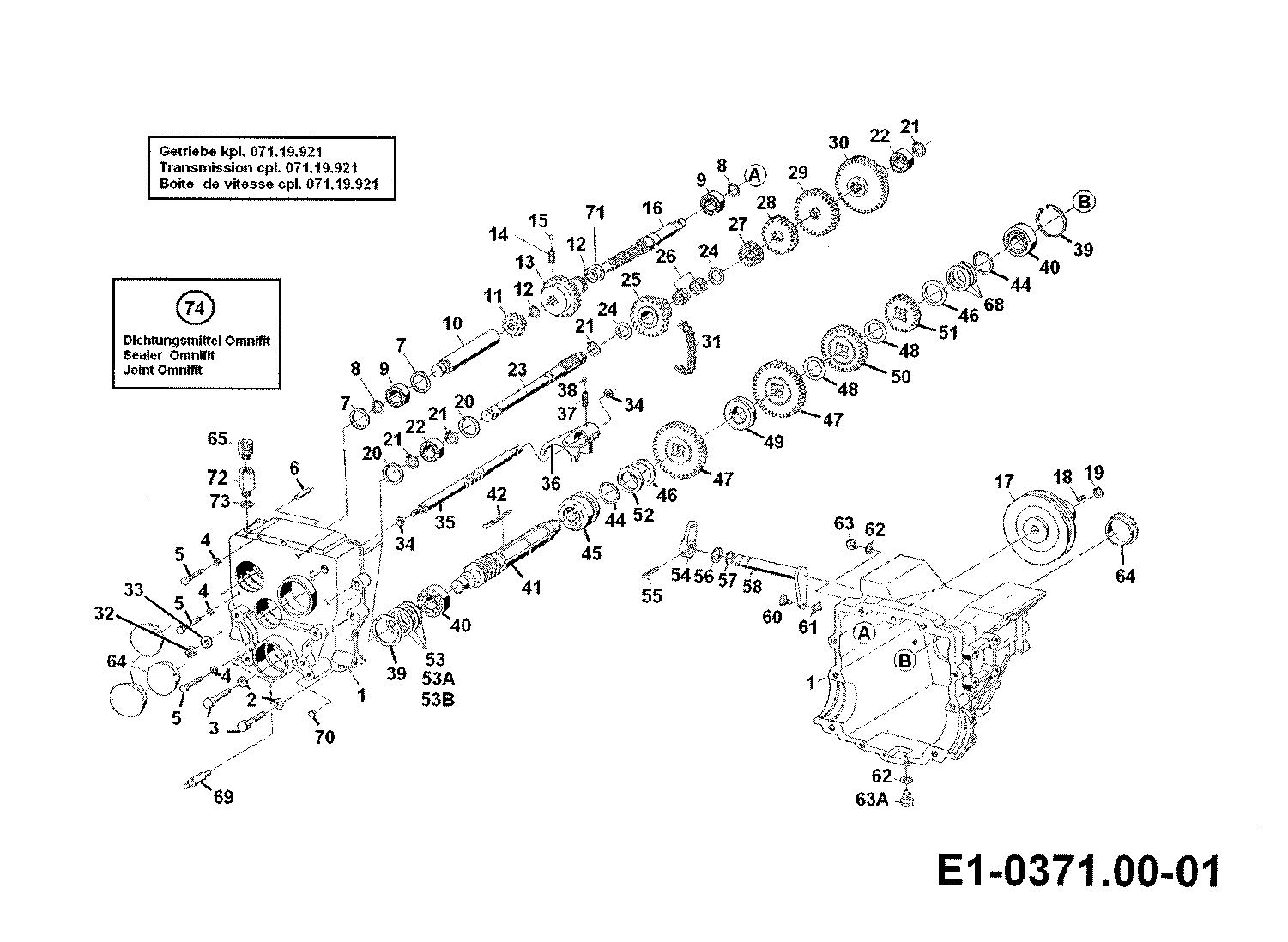

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.19.921	6-GANG-GETRIEBE KPL.	£3,610.72	Add
002	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
003	710-1703	Screw 21.1443.77	£3.39	Add
004	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
005	21.1443.54	Screw	£4.11	Add
006	25.3222.25	Pin	N/A	POA
007	24.8653.18	Circlip	£9.23	Add
008	716-04132	RING	£3.69	Add
009	26.1100.04	Bearing	£14.70	Add
010	071.19.127	Lengthening shaft	£80.06	Add
011	071.19.146	Chain wheel	£99.66	Add
012	28.3591.17	Retaining ring	£4.42	Add
013	071.19.125	Multiplier block	£243.58	Add
014	000.30.309	Compression spring	£6.33	Add
015	26.9611.23	Ball	£2.72	Add
016	071.19.176	Shaft	£217.96	Add
017	071.19.141	V-belt pulley	£115.59	Add
018	25.5231.63	Key	£3.96	Add
019	28.3591.15	Retaining ring	£3.34	Add
020	24.8653.18	Circlip	£9.23	Add
021	716-04132	RING	£3.69	Add
022	26.1100.04	Bearing	£14.70	Add
023	071.19.128	Lay shaft	£147.33	Add
024	24.6279.17	Shim	£3.66	Add
025	071.19.147	Chain wheel	£179.68	Add
026	26.9113.23	Needle cage	£26.40	Add
027	071.19.122	Pinion	£77.53	Add
028	071.19.121	Pinion	£101.13	Add
029	071.19.177	Pinion	£119.46	Add
030	071.19.119	Pinion	£138.96	Add
031	000.75.922	Roller chain	£29.60	Add
032	712-0692	HEX NUT	£3.10	Add
033	736-0700	FLAT WASHER	£2.63	Add
034	000.25.267	O-Ring	£4.76	Add
035	071.19.118	Shifting shaft	£114.22	Add
036	071.19.135	Shifting lever	£69.51	Add
037	000.30.309	Compression spring	£6.33	Add
038	26.9611.23	Ball	£2.72	Add
039	24.8653.20	Circlip	£7.92	Add
03A	21.5441.49	Screw	£3.32	Add
040	26.1025.04	Ball bearing	£31.78	Add
041	071.19.170	Worm shaft	£470.47	Add
042	071.19.179	Key	£48.23	Add
044	24.8170.12	Circlip	N/A	POA
045	071.19.180	Shift ring	£88.24	Add
046	24.6279.23	Shim	£4.41	Add
047	071.19.138	Ratchel wheel	£156.33	Add
048	071.19.074	Friction washer	£26.74	Add
049	071.19.123	Washer	£50.47	Add
050	071.19.137	Ratchel wheel	£156.95	Add
051	071.19.178	Ratchel wheel	£147.05	Add
052	071.19.181	Shim	£65.60	Add
053	24.6271.75	SHIM 000.20.472	£5.95	Add
054	071.19.133	Shifting lever	£51.43	Add
055	25.3197.94	Spring pin	£3.62	Add
056	28.3591.15	Retaining ring	£3.34	Add
057	000.25.271	O-Ring	N/A	POA
058	071.19.855	Shift axle	£71.70	Add
060	071.19.153	Dowel bolt	£29.31	Add
061	000.55.024	SL-Lock part	£3.26	Add
062	28.5871.21	SEAL RING	N/A	POA
063	28.5514.08	Plug	£6.30	Add
064	000.25.270	Cap	£12.24	Add
065	000.04.303	Bleeder plug	£39.06	Add
068	24.6274.40	Shim	£5.31	Add
069	071.19.166	Trunnion	£24.38	Add
070	000.34.052	Plug	£4.42	Add
071	24.6273.88	Shim	£4.11	Add
072	071.19.192	STUTZEN	£83.93	Add
073	28.5872.29	SEAL RIN	£3.66	Add
074	W00530.205	OMNIFIT DICHTUNGSMITTEL FD10	£204.30	Add
53A	24.6271.73	Shim	£5.95	Add
53B	24.6271.72	Shim	£5.95	Add
63A	000.04.307	Screw	£14.12	Add
68A	24.6271.50	Shim	N/A	POA
68B	736-0693	SHIM WASHER	£4.85	Add
