MTD007572

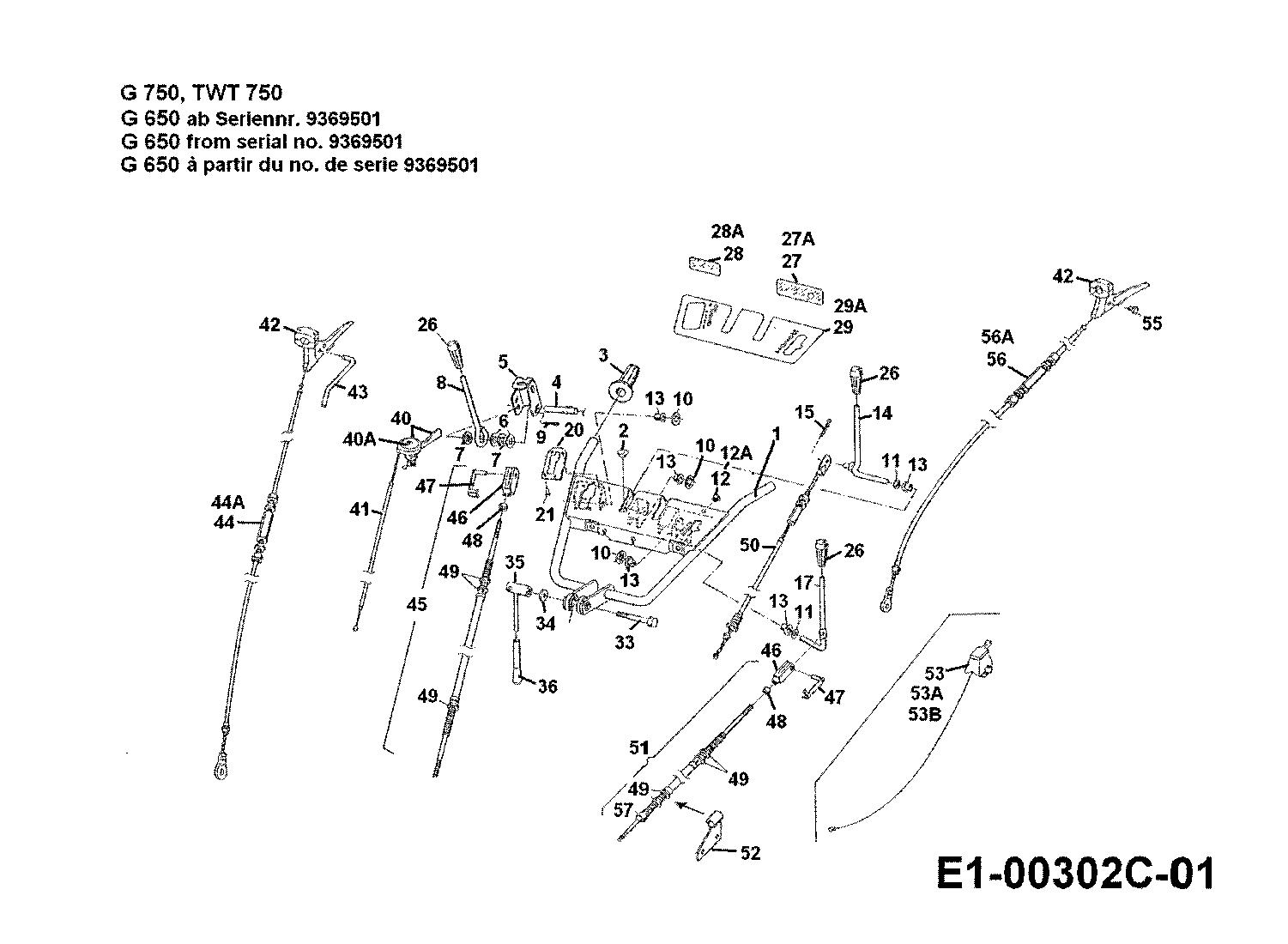

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.836	OBERHOLM VOLLST.	£302.72	Add
002	000.34.307	Cap	£5.81	Add
003	000.36.036	HANDLE GRIP	£15.40	Add
004	071.05.114	Axe	£48.36	Add
005	071.05.112	Guide bracket	£54.69	Add
006	736-0702	WASHER	£2.40	Add
007	000.37.472	Rubber washer	£9.92	Add
008	071.05.113	Lever-shifting	£19.29	Add
009	24.6488.48	Pin	£3.03	Add
010	000.02.541	CLAMPING RING	£4.80	Add
011	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
012	000.34.282	Cap	N/A	POA
013	000.24.054	Bushing	£8.85	Add
014	071.05.833	Shift lever	£74.46	Add
015	24.6488.40	Pin	£2.93	Add
017	071.05.116	Shift lever	£64.06	Add
020	071.05.099	Shifting guidage	£117.97	Add
021	000.05.053	Rivet	£2.77	Add
026	000.36.051	Knob	£11.55	Add
027	000.50.861	INSTRUMENTENSCHILD LINKS	N/A	POA
028	000.50.862	INSTRUMENTENSCHILD RECHTS	N/A	POA
029	777-5141	LBLS:RDR:DASH:600 SRS W/AMP	N/A	POA
033	21.1444.25	Screw	£8.04	Add
034	736-0733	Washer 24.6486.25	£4.00	Add
035	071.05.819	Adjust nut	N/A	POA
036	000.36.055	Knob	£40.90	Add
040	000.09.270	REGULIERHEBEL FUER25	£36.68	Add
041	000.46.349	Bowden wire	£37.67	Add
042	000.09.141	Shift lever	£73.85	Add
043	071.20.013	Shifting lock	£55.51	Add
044	000.46.375	Bowden wire	£104.85	Add
045	000.46.341	Bowden wire cpl.	£179.70	Add
046	28.6218.09	Fork	£10.03	Add
047	25.9425.03	BOLT	£10.62	Add
048	712-0638	Nut 24.1421.12	£3.58	Add
049	24.1424.22	Nut	£3.49	Add
050	000.46.376	Bowden wire	£83.17	Add
051	000.46.347	Bowden wire	£161.84	Add
052	071.59.816	Counter bearing	N/A	POA
053	000.09.260	Stop switch	£58.40	Add
055	090.38.006	Cable clamp	£4.65	Add
056	000.46.375	Bowden wire	£104.85	Add
057	000.35.119	SEALING NUT	N/A	POA
12A	000.34.262	Cap	£3.49	Add
27A	000.50.689	Decal	N/A	POA
28A	000.50.690	Decal	N/A	POA
29A	777-6179	LABEL	N/A	POA
40A	000.50.536	Decal	£7.58	Add
44A	R00.37.522	SILIKONSCHLAUCH 25M-ROLLE	£7.35	Add
53A	28.9050.20	Connector sleeve	N/A	POA
53B	R01.08.008	KABEL H07V-K	£4.24	Add
56A	R00.37.522	SILIKONSCHLAUCH 25M-ROLLE	£7.35	Add
