MTD016178

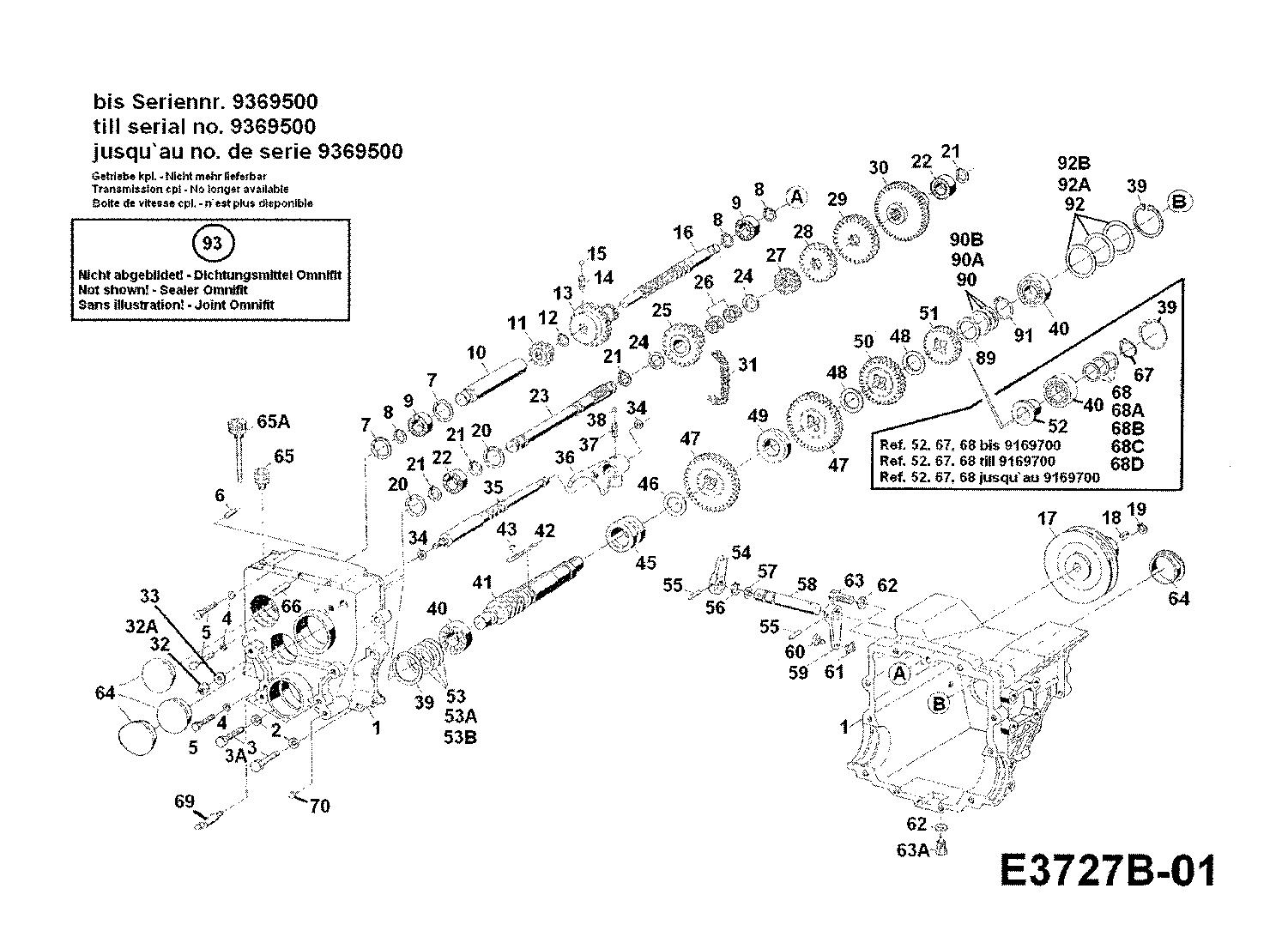

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.19.836	TRANSMISSION CASING	N/A	POA
002	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
003	710-1703	Screw 21.1443.77	£3.39	Add
004	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
005	21.1443.54	Screw	£4.11	Add
006	25.3222.25	Pin	N/A	POA
007	24.8653.18	Circlip	£9.23	Add
008	716-04132	RING	£3.69	Add
009	26.1100.04	Bearing	£14.70	Add
010	071.19.127	Lengthening shaft	£80.06	Add
011	071.19.146	Chain wheel	£99.66	Add
012	28.3591.17	Retaining ring	£4.42	Add
013	071.19.125	Multiplier block	£243.58	Add
014	000.30.309	Compression spring	£6.33	Add
015	26.9611.23	Ball	£2.72	Add
016	071.19.129	Shaft	£139.30	Add
017	071.19.141	V-belt pulley	£115.59	Add
018	25.5231.63	Key	£3.96	Add
019	28.3591.15	Retaining ring	£3.34	Add
020	24.8653.18	Circlip	£9.23	Add
021	716-04132	RING	£3.69	Add
022	26.1100.04	Bearing	£14.70	Add
023	071.19.128	Lay shaft	£147.33	Add
024	24.6279.17	Shim	£3.66	Add
025	071.19.147	Chain wheel	£179.68	Add
026	26.9113.23	Needle cage	£26.40	Add
027	071.19.122	Pinion	£77.53	Add
028	071.19.121	Pinion	£101.13	Add
029	071.19.120	Pinion	£79.97	Add
030	071.19.119	Pinion	£138.96	Add
031	000.75.922	Roller chain	£29.60	Add
032	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
033	736-0700	FLAT WASHER	£2.63	Add
034	000.25.267	O-Ring	£4.76	Add
035	071.19.118	Shifting shaft	£114.22	Add
036	071.19.135	Shifting lever	£69.51	Add
037	000.30.309	Compression spring	£6.33	Add
038	26.9611.23	Ball	£2.72	Add
039	24.8653.20	Circlip	£7.92	Add
03A	21.5441.49	Screw	£3.32	Add
040	26.1025.04	Ball bearing	£31.78	Add
041	071.19.151	Worm shaft	£720.87	Add
042	071.19.139	Key	£111.37	Add
043	071.19.154	Gripper	£31.04	Add
045	071.19.124	Shift ring	£69.53	Add
046	24.6279.23	Shim	£4.41	Add
047	071.19.138	Ratchel wheel	£156.33	Add
048	071.19.074	Friction washer	£26.74	Add
049	071.19.123	Washer	£50.47	Add
050	071.19.137	Ratchel wheel	£156.95	Add
051	071.19.136	Ratchel wheel	£120.60	Add
052	071.19.132	BUSH	N/A	POA
053	24.6271.75	SHIM 000.20.472	£5.95	Add
054	071.19.133	Shifting lever	£51.43	Add
055	25.3197.94	Spring pin	£3.62	Add
056	28.3591.15	Retaining ring	£3.34	Add
057	000.25.271	O-Ring	N/A	POA
058	071.19.855	Shift axle	£71.70	Add
059	071.19.134	Shifting lever	N/A	POA
060	071.19.153	Dowel bolt	£29.31	Add
061	000.55.024	SL-Lock part	£3.26	Add
062	28.5871.21	SEAL RING	N/A	POA
063	21.1445.11	Screw	£4.11	Add
064	000.25.270	Cap	£12.24	Add
065	000.04.303	Bleeder plug	£39.06	Add
066	25.3222.25	Pin	N/A	POA
067	716-04132	RING	£3.69	Add
068	24.6271.20	Shim	£5.52	Add
069	071.19.166	Trunnion	£24.38	Add
070	000.34.052	Plug	£4.42	Add
089	24.6279.23	Shim	£4.41	Add
090	24.6274.40	Shim	£5.31	Add
091	24.8170.12	Circlip	N/A	POA
092	24.6271.72	Shim	£5.95	Add
093	W00530.205	OMNIFIT DICHTUNGSMITTEL FD10	£204.30	Add
32A	04512-50080	NO LONGER AVAILABLE	N/A	POA
53A	24.6271.73	Shim	£5.95	Add
53B	24.6271.72	Shim	£5.95	Add
63A	000.04.307	Screw	£14.12	Add
65A	000.04.308	Breather	£51.74	Add
68A	24.6271.11	Shim	£5.10	Add
68B	24.6271.12	Shim	£4.01	Add
68C	24.6278.44	Shim	£4.01	Add
68D	24.6278.45	Shim	£3.66	Add
90A	24.6271.50	Shim	N/A	POA
90B	736-0693	SHIM WASHER	£4.85	Add
92A	24.6271.73	Shim	£5.95	Add
92B	24.6271.75	SHIM 000.20.472	£5.95	Add
