MTD016180

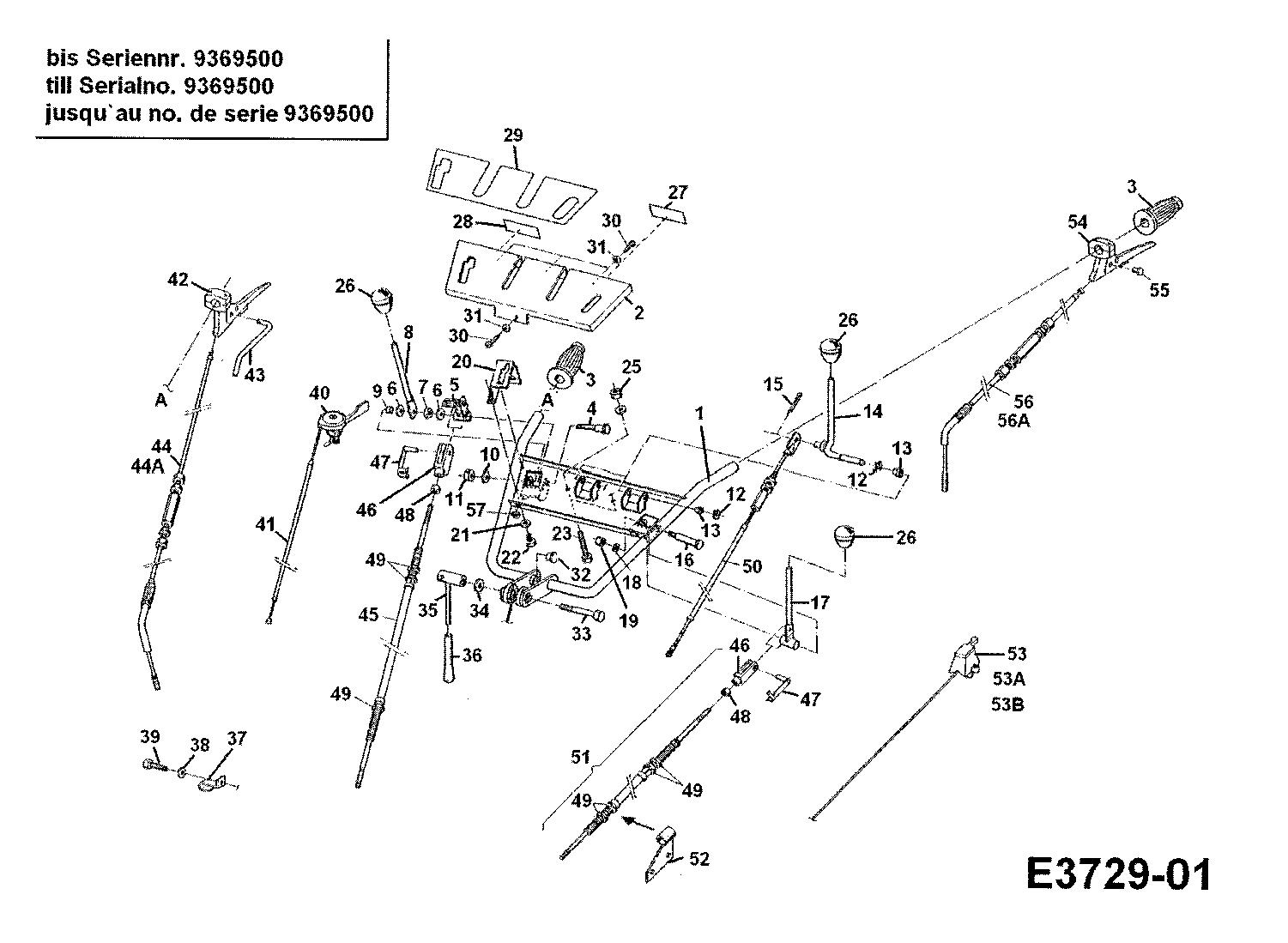

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.830	Upper handle assy.	N/A	POA
002	071.05.827	Protection	£67.68	Add
003	000.36.036	HANDLE GRIP	£15.40	Add
004	071.05.055	Stud	£47.20	Add
005	071.05.815	Guide bracket	N/A	POA
006	24.6485.19	Washer	N/A	POA
007	000.37.472	Rubber washer	£9.92	Add
008	071.05.811	Lever	£52.12	Add
009	071.05.068	Sleeve	£23.48	Add
010	736-0685	WASHER	£3.26	Add
011	712-0691	HEX NUT M6 DIN 985	£2.66	Add
012	28.3591.10	Circlip	£2.04	Add
013	000.24.054	Bushing	£8.85	Add
014	071.05.809	Lever	£71.39	Add
015	24.6488.40	Pin	£2.93	Add
016	071.05.056	Tension screw	N/A	POA
017	071.05.810	Lever	N/A	POA
018	736-0700	FLAT WASHER	£2.63	Add
019	712-0692	HEX NUT	£3.10	Add
020	071.05.817	Shifting guidage	£94.52	Add
021	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
022	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
023	710-1684	NO LONGER AVAILABLE	N/A	POA
024	736-0700	FLAT WASHER	£2.63	Add
025	712-0692	HEX NUT	£3.10	Add
026	720-0355	Knob 000.36.023	£14.85	Add
027	000.49.849	Decal	N/A	POA
028	000.49.853	Decal	N/A	POA
029	000.49.915	Decal	N/A	POA
030	22.8415.24	Screw	N/A	POA
031	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
032	000.34.283	Plug	N/A	POA
033	21.1444.26	Screw	N/A	POA
034	736-0733	Washer 24.6486.25	£4.00	Add
035	071.05.819	Adjust nut	N/A	POA
036	000.36.055	Knob	£40.90	Add
037	001.10.150	Strap	N/A	POA
038	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
039	710-1714	Screw 21.1441.67	£2.93	Add
040	000.09.254	Gas control lever	£50.96	Add
041	000.46.349	Bowden wire	£37.67	Add
042	000.09.141	Shift lever	£73.85	Add
043	071.20.013	Shifting lock	£55.51	Add
044	000.46.356	Bowden wire	£86.71	Add
045	000.46.341	Bowden wire cpl.	£179.70	Add
046	28.6218.09	Fork	£10.03	Add
047	25.9425.03	BOLT	£10.62	Add
048	712-0638	Nut 24.1421.12	£3.58	Add
049	24.1424.22	Nut	£3.49	Add
050	000.46.342	Bowden wire	£63.20	Add
051	000.46.347	Bowden wire	£161.84	Add
052	071.59.816	Counter bearing	N/A	POA
053	000.09.260	Stop switch	£58.40	Add
054	000.09.141	Shift lever	£73.85	Add
055	090.38.006	Cable clamp	£4.65	Add
056	000.46.356	Bowden wire	£86.71	Add
057	000.34.298	Rubber sleeve	£3.70	Add
44A	000.75.038	Cable holder	£3.90	Add
53A	28.9050.30	Receptacle	N/A	POA
53B	R01.08.008	KABEL H07V-K	£4.24	Add
56A	000.75.038	Cable holder	£3.90	Add
