MTD016201

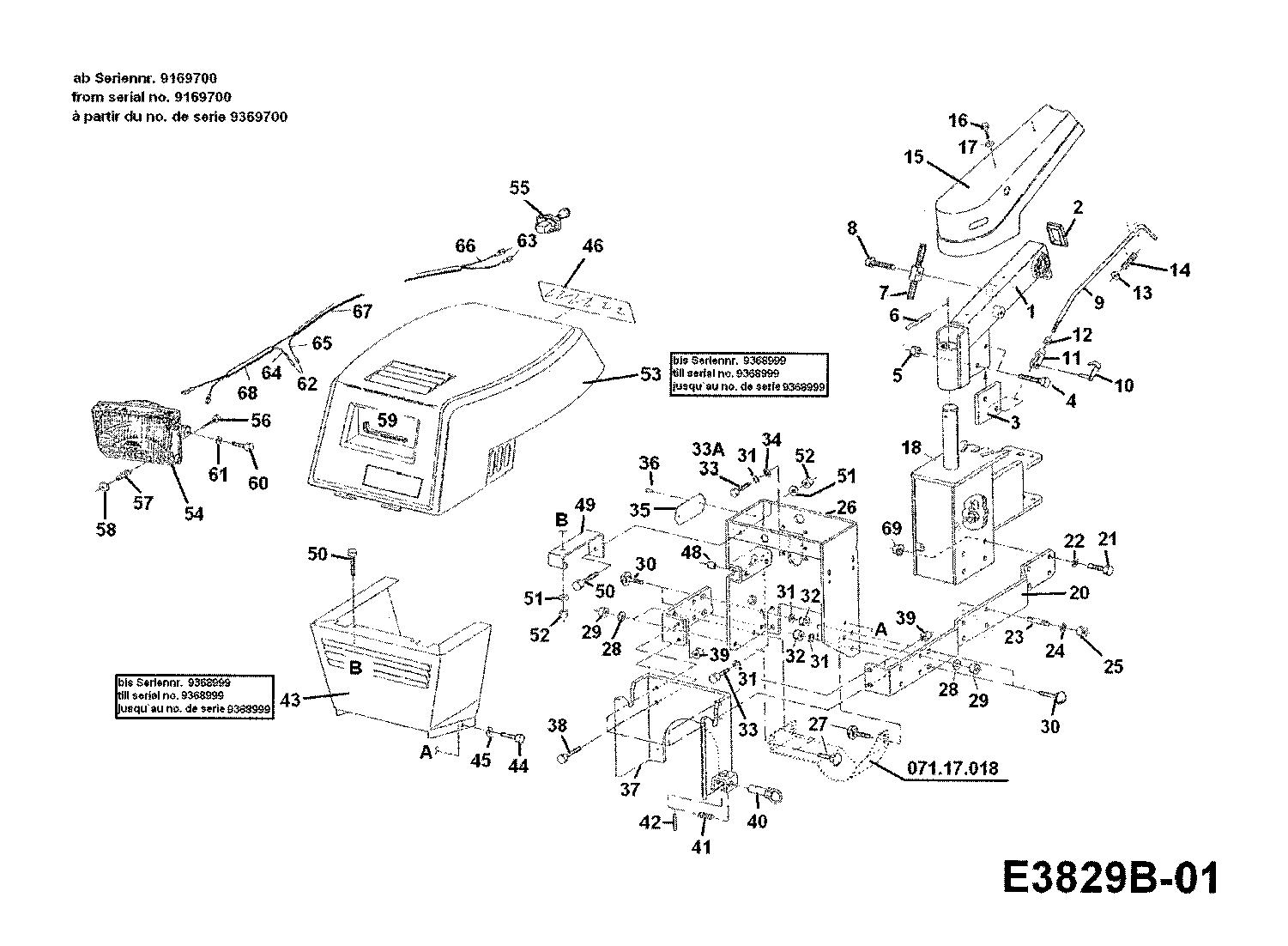

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.834	Lower handle	£251.63	Add
002	000.34.290	Plug	£15.29	Add
003	071.05.073	Plate	£32.13	Add
004	21.1441.92	Screw	£3.93	Add
005	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
006	25.3198.40	Spring pin	N/A	POA
007	079.05.515	CABLE PROTECTION (RED)	£10.93	Add
008	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add
009	071.05.074	TUBE-TONGUE	N/A	POA
010	726-0457	CLIP	£9.50	Add
011	711-1407	LINK	£14.01	Add
012	24.1423.18	NO LONGER AVAILABLE	N/A	POA
013	736-0700	FLAT WASHER	£2.63	Add
014	000.30.304	Compression spring	£10.27	Add
015	071.05.117	Protection	£136.54	Add
016	000.02.419	Screw	£2.91	Add
017	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
018	071.59.828	HECKRAHMEN M.ANH.KUPPL.VOLLST.	£228.13	Add
019	082.23.002	Rubber sleeve	£11.93	Add
01A	071.05.838	UNTERHOLM VOLLST.	N/A	POA
020	071.59.026	Support	£96.55	Add
021	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
022	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
023	23.2441.39	Stud	£3.96	Add
024	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
025	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
026	071.46.812	Front support	£178.86	Add
027	710-1687	BOLT	£3.26	Add
028	736-0700	FLAT WASHER	£2.63	Add
029	712-0691	HEX NUT M6 DIN 985	£2.66	Add
030	710-1727	Screw 22.3419.25	£3.34	Add
031	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
032	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
033	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add
034	736-0700	FLAT WASHER	£2.63	Add
035	000.51.792	LBL.IDENTIFICATION	N/A	POA
036	000.05.053	Rivet	£2.77	Add
037	071.59.814	Bracket	£141.78	Add
038	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
039	712-0692	HEX NUT	£3.10	Add
040	071.59.817	Fastening bolt	£79.21	Add
041	000.30.232	Compression spring	£15.09	Add
042	25.3197.98	Spring pin	£3.77	Add
043	071.46.048	FRONTVERKLEIDUNG	£202.48	Add
044	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
045	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
046	000.50.537	Decal	£7.58	Add
048	000.75.038	Cable holder	£3.90	Add
049	071.46.026	Bracket	£24.79	Add
050	710-1690	HHCS:M6-1:16.00	£3.39	Add
051	736-0685	WASHER	£3.26	Add
052	712-0691	HEX NUT M6 DIN 985	£2.66	Add
053	071.46.810	HOOD	N/A	POA
054	000.81.369	Head light	£129.79	Add
055	000.80.782	Light switch	N/A	POA
056	21.6421.32	Screw	N/A	POA
057	000.30.318	COMPRESSION SPRING	N/A	POA
058	24.1429.01	Nut	£3.96	Add
059	R00.37.279	KANTENSCHUTZ METERWARE	N/A	POA
060	710-1690	HHCS:M6-1:16.00	£3.39	Add
061	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
062	28.9050.20	Connector sleeve	N/A	POA
063	28.9070.04	Receptacle	N/A	POA
064	R01.08.005	KABEL H07V-K	N/A	POA
065	R01.08.007	KABEL H07V-K	£4.11	Add
066	R01.08.008	KABEL H07V-K	£4.24	Add
067	R01.08.022	ISOLIERSCHLAUCH F.E-LEITUNGEN	£3.21	Add
068	R01.08.022	ISOLIERSCHLAUCH F.E-LEITUNGEN	£3.21	Add
069	23.8431.08	Nut	£4.85	Add
15A	071.05.123	HOLMABDECKUNG	N/A	POA
18A	071.59.829	HECKRAHMEN VOLLST.	N/A	POA
20A	071.59.053	SLEEVE HITCH BRACKET ASSEMBLY	N/A	POA
26A	071.46.819	FRONTANBAURAHMEN VOLLST.	£292.16	Add
26B	071.46.824	FRONTANBAURAHMEN VOLLST.	N/A	POA
33A	21.1443.87	SCREW 710-2207	£6.37	Add
35A	000.57.653	LBL.IDENTIFICATION	N/A	POA
37A	071.59.830	KUPPELBUEGEL VOLLST.	N/A	POA
54A	000.81.370	Filament bulb	£24.60	Add
