MTD007571

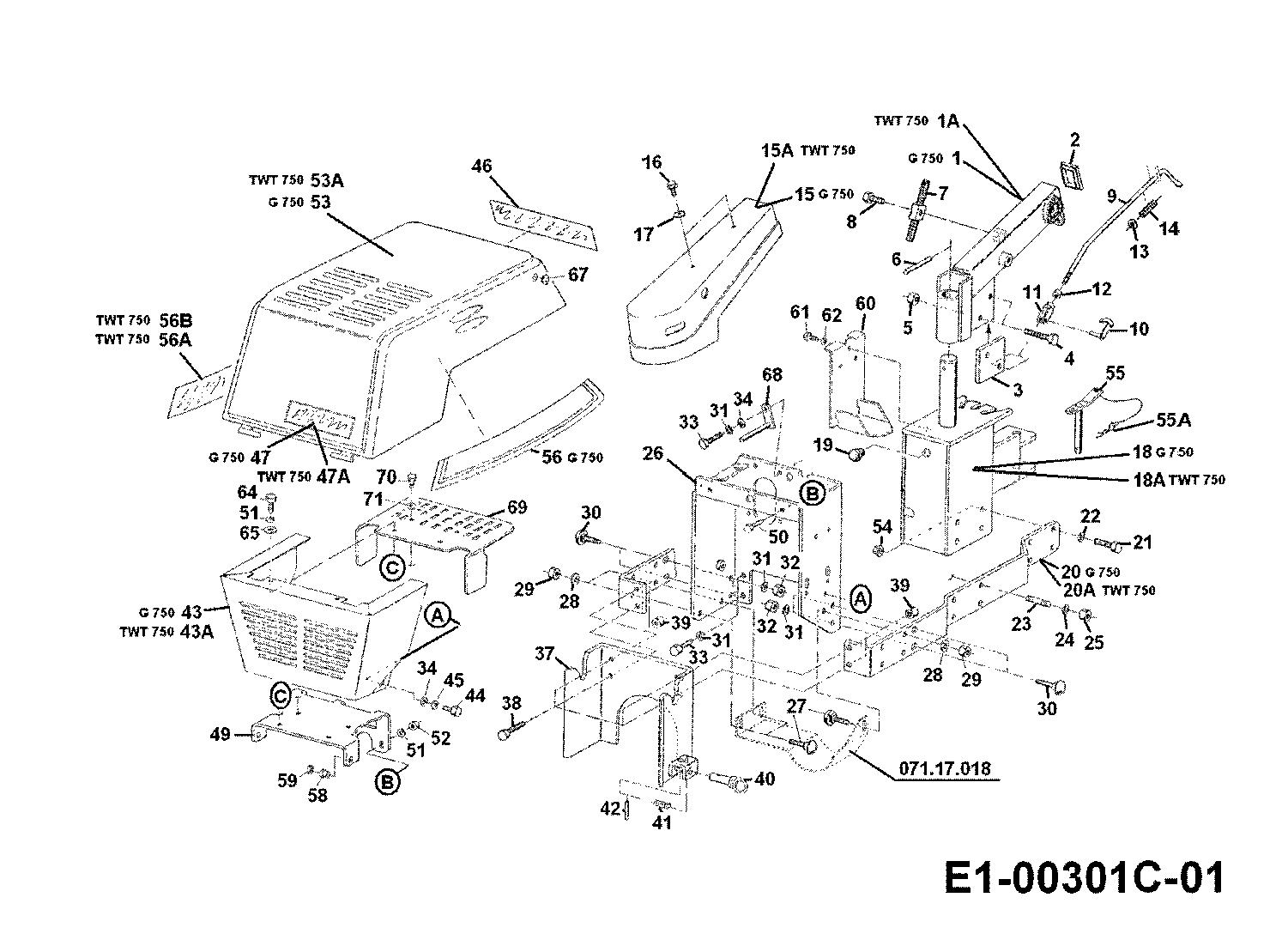

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.834	Lower handle	£251.63	Add
002	000.34.290	Plug	£15.29	Add
003	071.05.073	Plate	£32.13	Add
004	21.1441.92	Screw	£3.93	Add
005	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
006	25.3198.40	Spring pin	N/A	POA
007	079.05.515	CABLE PROTECTION (RED)	£10.93	Add
008	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add
009	071.05.074	TUBE-TONGUE	N/A	POA
010	726-0457	CLIP	£9.50	Add
011	711-1407	LINK	£14.01	Add
012	24.1423.18	NO LONGER AVAILABLE	N/A	POA
013	736-0700	FLAT WASHER	£2.63	Add
014	000.30.304	Compression spring	£10.27	Add
015	071.05.117	Protection	£136.54	Add
016	000.02.419	Screw	£2.91	Add
017	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
018	071.59.825	Rear support	N/A	POA
019	082.23.002	Rubber sleeve	£11.93	Add
01A	071.05.838	UNTERHOLM VOLLST.	N/A	POA
020	071.59.026	Support	£96.55	Add
021	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
022	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
023	23.2441.39	Stud	£3.96	Add
024	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
025	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
026	071.46.816	Front support	£167.63	Add
027	710-1687	BOLT	£3.26	Add
028	736-0700	FLAT WASHER	£2.63	Add
029	712-0691	HEX NUT M6 DIN 985	£2.66	Add
030	710-1727	Screw 22.3419.25	£3.34	Add
031	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
032	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
033	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add
034	736-0700	FLAT WASHER	£2.63	Add
037	071.59.814	Bracket	£141.78	Add
038	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
039	712-0692	HEX NUT	£3.10	Add
040	071.59.817	Fastening bolt	£79.21	Add
041	000.30.232	Compression spring	£15.09	Add
042	25.3197.98	Spring pin	£3.77	Add
043	071.46.039	Front chassis	£153.73	Add
044	710-1376	CAP SCREW	£4.50	Add
045	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
046	000.50.537	Decal	£7.58	Add
047	777-5147	FRONT PANEL LABEL	N/A	POA
049	071.46.815	Bracket assy.	£84.91	Add
050	710-1713	HHCS:M5x30:DIN 933-8.8 Zn5glcB 21.1441.47	£4.69	Add
051	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
052	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
053	071.46.814	ABDECKHAUBE VOLLST.	£271.06	Add
054	23.8431.08	Nut	£4.85	Add
055	071.59.907	BOLT	N/A	POA
056	777-5142	HOOD SIDE LABELS RIGHT/LEFT	N/A	POA
058	000.24.072	Bushing	£7.29	Add
059	000.02.424	CAP RETAINER (RED)	£5.10	Add
060	071.59.047	BATTERY TRAY	N/A	POA
061	710-1690	HHCS:M6-1:16.00	£3.39	Add
062	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
064	710-1690	HHCS:M6-1:16.00	£3.39	Add
065	736-0685	WASHER	£3.26	Add
067	000.34.048	Plug	£8.85	Add
068	021.20.806	RIEMENFUEHRUNG VOL.	£71.74	Add
069	071.46.057	ABDECKUNG	£71.26	Add
070	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
071	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
15A	071.05.123	HOLMABDECKUNG	N/A	POA
18A	071.59.828	HECKRAHMEN M.ANH.KUPPL.VOLLST.	£228.13	Add
20A	071.59.053	SLEEVE HITCH BRACKET ASSEMBLY	N/A	POA
43A	071.46.059	FRONT PANEL	N/A	POA
47A	777-4842	LBL.IN FRONT	N/A	POA
53A	071.46.825	HOOD	N/A	POA
55A	000.17.010	Spring pin	£5.41	Add
56A	777-4832	LBL:EXPHOODSD LEFT	N/A	POA
56B	777-4831	SIDE LABEL RIGHT	N/A	POA
