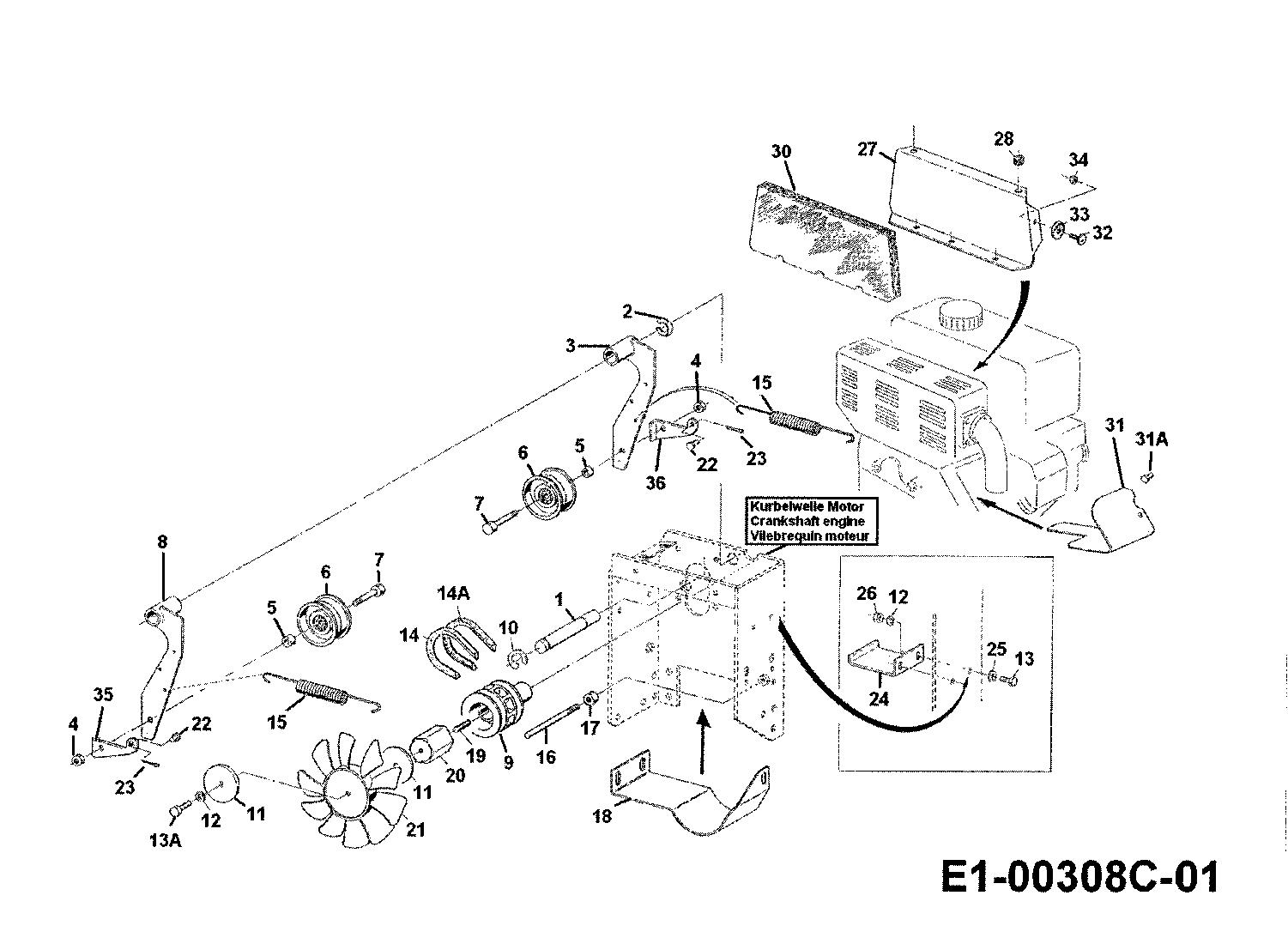

MTD007576

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.17.025	SPANNROLLENACHSE	£29.44	Add
002	000.11.142	Lock washer	N/A	POA
003	071.77.813	Support	£67.76	Add
004	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
005	071.17.024	Spacer	£17.63	Add
006	029.11.903	Tension roller	£31.23	Add
007	21.1443.93	Screw	£4.14	Add
008	071.17.808	Support	£74.82	Add
009	071.11.004	V-belt pulley	£149.71	Add
010	28.3595.64	Circlips	N/A	POA
011	000.10.111	Washer	£18.10	Add
012	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
013	710-1713	HHCS:M5x30:DIN 933-8.8 Zn5glcB 21.1441.47	£4.69	Add
014	000.75.956	V-belt	£63.05	Add
015	000.31.184	Spring	£7.72	Add
016	071.17.009	Stud	£37.02	Add
017	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
018	071.17.018	V-belt guide	£59.02	Add
019	23.2441.41	Stud	£3.79	Add
020	071.11.005	Hexagon hub	£65.99	Add
021	026.19.038	Fan	N/A	POA
022	711-1229	BOLT 25.7428.19	£17.19	Add
023	24.6488.28	Pin	£2.72	Add
024	071.46.037	Guide bracket	£65.22	Add
025	736-0668	WASHER	£2.23	Add
026	712-0691	HEX NUT M6 DIN 985	£2.66	Add
027	071.11.006	plate	£65.10	Add
028	000.34.298	Rubber sleeve	£3.70	Add
030	071.11.008	Insulating part	£33.54	Add
031	071.11.007	Guide plate	N/A	POA
032	710-1726	NO LONGER AVAILABLE	N/A	POA
033	000.34.149	Rubber washer	£3.16	Add
034	712-0691	HEX NUT M6 DIN 985	£2.66	Add
035	071.17.026	WINKELOESE VORN (RECHTS)	N/A	POA
036	071.17.027	AINKELOESE HINTEN (LINKS)	£20.78	Add
13A	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
14A	000.75.972	SPEZIALKEILRIEMEN	£82.24	Add
31A	21.1441.44	Screw	£4.69	Add
