MTD011115

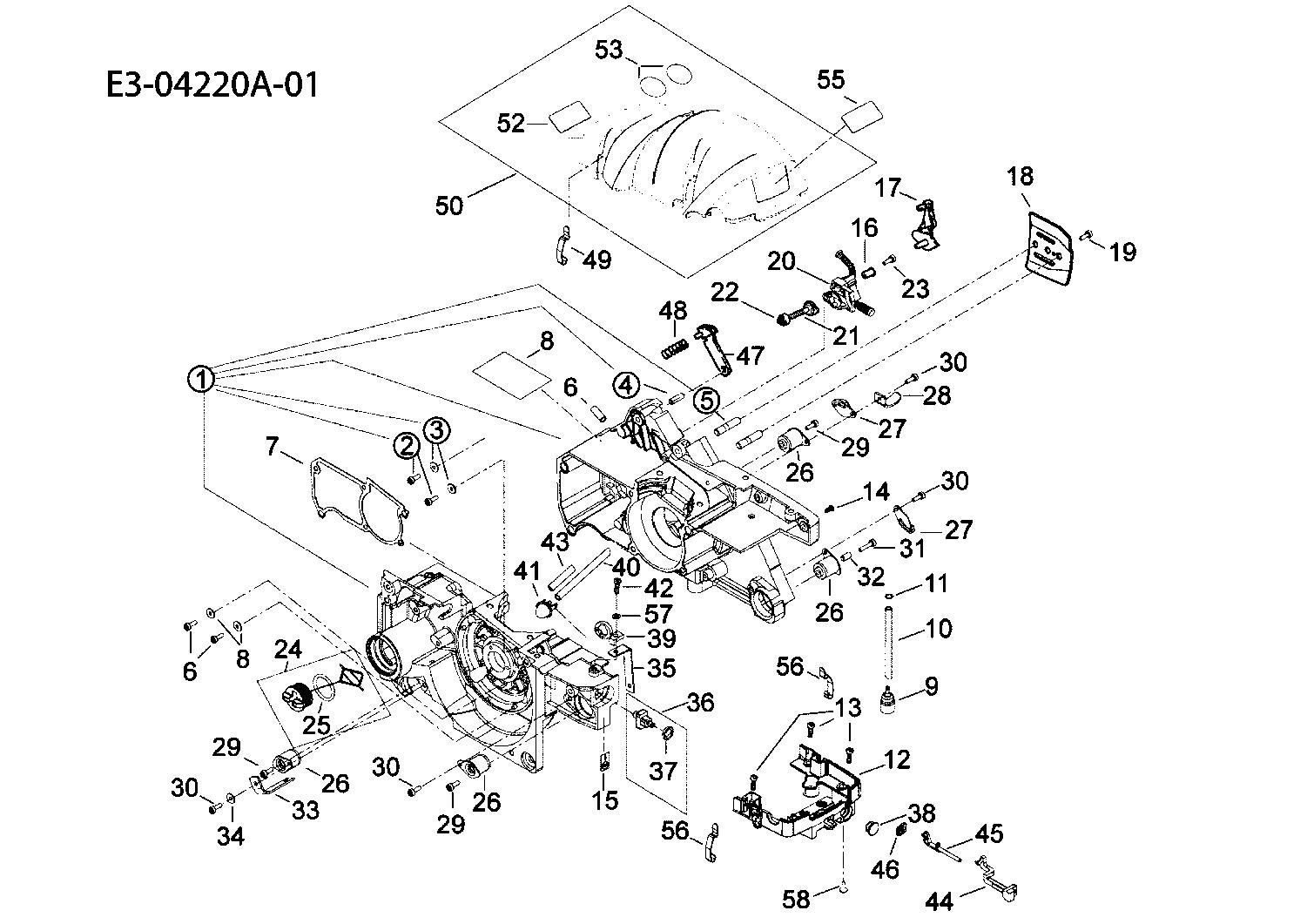

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011115

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 092.58.254 CRANCASE ASSY N/A POA
002 092.58.005 SCREW £4.00 Add
003 092.58.069 TENSION WASHER £4.80 Add
004 092.58.073 PIN £3.39 Add
005 092.58.040 SCREW £7.06 Add
006 092.58.315 CHECK VALVE £54.96 Add
007 092.58.232 GASKET £19.98 Add
008 092.58.348 ISOLATING FOIL £4.39 Add
009 092.58.317 VENTILATION SOCKET £36.81 Add
010 092.58.112 VENTILATION HOSE £34.86 Add
011 092.58.159 GROMMET £5.10 Add
012 092.58.370 INTERMEDIATE HOUSING £10.95 Add
013 092.58.026 SCREW £3.34 Add
014 092.58.079 RIVET £2.54 Add
015 092.58.130 STICKER "STOP" £2.54 Add
016 092.58.077 RIVET £4.80 Add
017 092.58.390 COVER £8.09 Add
018 092.58.351 GUIDE PLATE £12.19 Add
019 092.58.015 SCREW £2.54 Add
020 092.58.437 OIL PUMP £193.69 Add
021 092.58.361 OIL HOSE £46.59 Add
022 092.58.438 OIL STRAINER £12.42 Add
023 092.58.010 SCREW £2.91 Add
024 092.58.311 OIL TANK CAP £21.44 Add
025 092.58.101 O-RING £4.80 Add
026 092.58.427 RUBBER METAL £26.52 Add
027 092.58.388 PROTECTIVE CAP £5.40 Add
028 092.58.353 CHAIN PROTECTION PLATE £11.63 Add
029 092.58.022 SCREW £4.00 Add
030 092.58.024 SCREW £3.39 Add
031 092.58.021 SCREW £4.00 Add
032 092.58.066 SPACER TUBE £9.17 Add
033 092.58.187 SAFETY CATCH £10.17 Add
034 092.58.054 WASHER £3.94 Add
035 092.58.184 SAFETY CATCH £4.94 Add
036 092.58.278 SHORT CIRCUIT SWITCH £35.35 Add
037 092.58.045 SHORT CIRCUIT SWITCH £35.35 Add
038 092.58.386 PLUG £3.94 Add
039 092.58.400 PRIMER SUPPORT £8.09 Add
040 092.58.120 HOSE £18.60 Add
041 092.58.310 PRIMER £42.98 Add
042 092.58.028 SCREW £4.00 Add
043 092.58.116 HOSE £26.52 Add
044 092.58.409 CHOKE LEVER £15.90 Add
045 092.58.408 PIN £7.26 Add
046 092.58.356 CHOKE LEVER SEAT £4.94 Add
047 092.58.428 PRESSURE PLATE £23.89 Add
048 092.58.145 SPRING £3.65 Add
049 092.58.158 FASTENING CLIP £4.00 Add
050 092.58.421 COVER £131.62 Add
052 092.58.348 ISOLATING FOIL £4.39 Add
053 092.58.129 STICKER £4.17 Add
055 092.58.139 STICKER £5.55 Add
056 092.58.157 FASTENING CLIP £17.87 Add
057 092.58.069 TENSION WASHER £4.80 Add
058 092.58.182 BUFFER £5.78 Add
