MTD010388

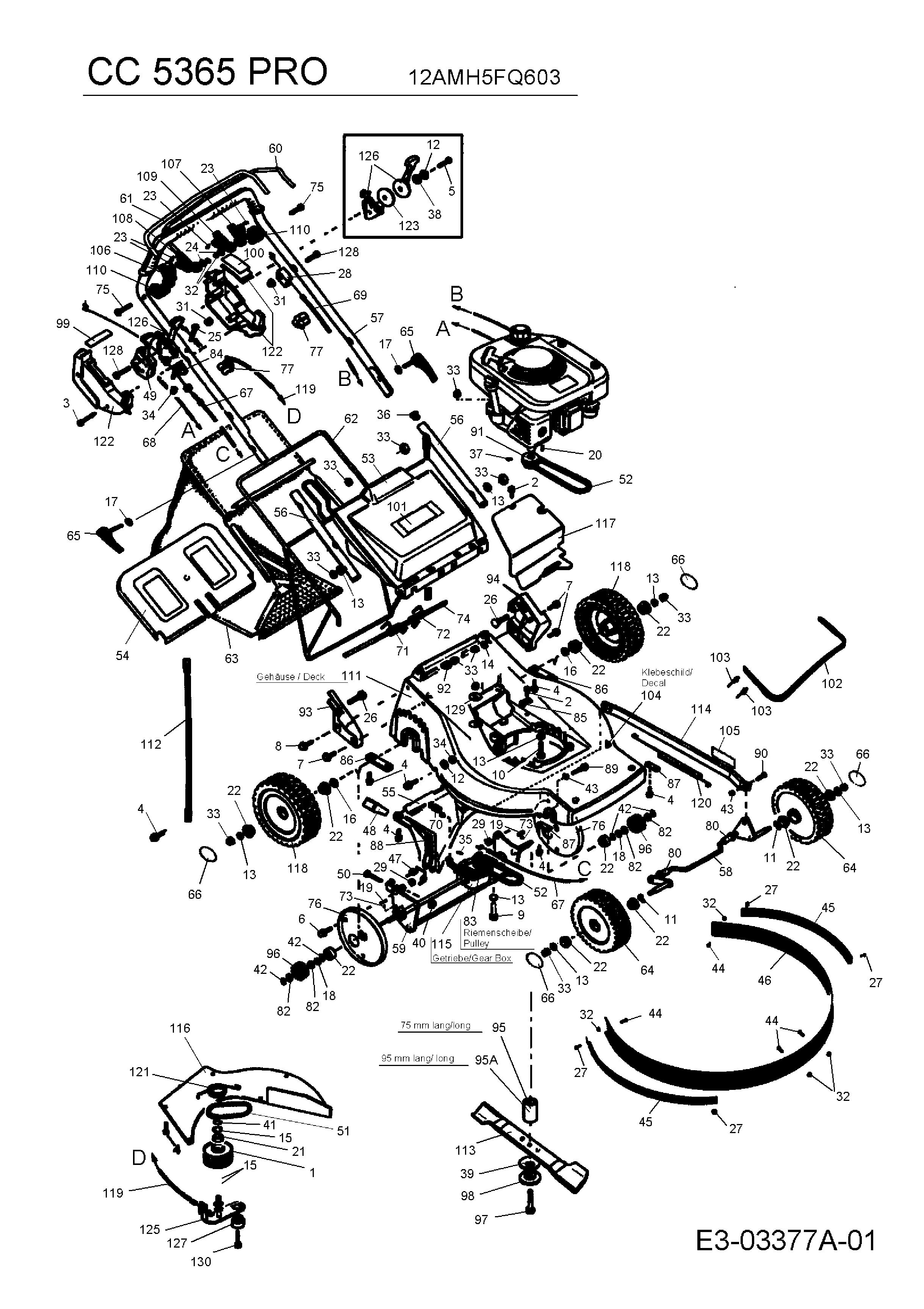

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	CP056255	PULLEY	£176.67	Add
002	CP024816	SCREW	£2.45	Add
003	CP025040	SCREW	£3.76	Add
004	710-1690	HHCS:M6-1:16.00	£3.39	Add
005	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
006	CP030812	SCREW	£3.83	Add
007	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
008	CP030850	Screw	N/A	POA
009	CP030855	HEXAGON HEAD SCREW M8 X 55	N/A	POA
010	CP030855	HEXAGON HEAD SCREW M8 X 55	N/A	POA
011	CP032913	WASHER	£2.79	Add
012	CP032907	WASHER D.6X18X1,5	N/A	POA
013	736-0700	FLAT WASHER	£2.63	Add
014	CP032909	WASHER	£3.31	Add
015	CP032910	WASHER	£2.33	Add
016	CP032913	WASHER	£2.79	Add
017	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
018	CP035905	WASHER	£2.96	Add
019	CP037305	WOODRUFF KEY (OBSOLETE)	N/A
020	CP037406	WOODRUFF KEY	£3.59	Add
021	CP038026	BALL BEARING	£12.27	Add
022	CP038228	BALL BEARING	£28.89	Add
023	CP023595	Screw	£3.85	Add
024	CP032926	WASHER A6.4 UNI 6593	£2.98	Add
025	CP040630	SCREW M6X30	£3.20	Add
026	CP040835	SCREW M8 X 35	N/A	POA
027	CP025010	SCREW M5X10	£4.17	Add
028	CP042216	CLIP	£5.70	Add
029	CP042708	NUT	£2.79	Add
031	CP042806	NUT HEXAGONAL M6	£2.90	Add
032	CP044726	KNOB M6 DIN 985-8	£2.79	Add
033	712-0692	HEX NUT	£3.10	Add
034	712-0691	HEX NUT M6 DIN 985	£2.66	Add
035	CP045530	PIN 5 X 30 DIN 1481	£2.70	Add
036	CP045722	CAP	£2.79	Add
037	CP045810	SCREW	£3.20	Add
038	CP045906	PLATE WASHER 6,2X14X0.9	N/A	POA
039	CP045911	WASHER (OBSOLETE) (OBSOLETE)	N/A
040	CP046606	RETAINER	£2.70	Add
041	CP046810	RETAINER	£2.56	Add
042	SG-144590	CIRCLIPS D=12 UNI 7435	£3.39	Add
043	CP046904	RETAINER	£2.40	Add
044	CP060614	SCREW M6 X 14	£4.17	Add
045	CP056094	EDGE PROTECTOR:CHASSIS:EXT.	£80.54	Add
046	CP056095	EDGE PROTECTOR:CHASSIS:INT.	£80.41	Add
047	CP047191	SPRING	£9.33	Add
048	CP047236	HOOD	£8.82	Add
049	CP047250	LEVER	£31.54	Add
050	CP047267	PIN	£3.31	Add
051	CP047716	TOOTH BELT Z16	£23.21	Add
052	CP047725	BELT	£39.38	Add
053	CP050018	REAR DOOR	£82.18	Add
054	CP050023	COVER	£63.80	Add
055	CP050028	DEFLECTOR	£46.32	Add
056	CP060033	LOWER HANDLE PAINTED	£52.25	Add
057	CP060043	HEAD BEAM	£122.59	Add
058	CP050048	FRONT AXLE ASSY.	£73.90	Add
059	CP050059	REAR AXLE ASSEMBLY	£129.39	Add
060	CP052068	ACTUATOR BRACKET	£50.02	Add
061	CP052073	BAR	£48.72	Add
062	CP050078	FRAME ASSY.	£90.44	Add
063	CP050083.05	GRASS BAG	£131.74	Add
064	CP056113	FRONT WHEEL	£118.83	Add
065	CP047222	CLAMP LEVER	£16.41	Add
066	CP056133	HUB CAP	£3.85	Add
067	CP052138	CLUTCH CABLE (OBSOLETE) (OBSOLETE)	N/A
068	CP056143	THROTTLE ASSY.	£27.80	Add
069	CP052146	BRAKE CABLE L=1120 N.T.	£24.60	Add
070	CP050191	SPRING	£7.13	Add
071	CP050193	SPRING	£6.11	Add
072	CP050192	SPRING	£6.01	Add
073	CP050194	SPRING	£3.49	Add
074	CP050203	HATCHBACK ROD: 57cm DECK	£9.43	Add
075	710-04603	SCR:M6x50mm:DIN 7985	£3.66	Add
076	CP050214	HUB CAP	£12.94	Add
077	731-2422	CABLE GUIDE	£3.59	Add
080	CP050232	BUSHING	£3.55	Add
082	CP050238	WASHER	£3.20	Add
083	CP050241	V-BELT PULLEY D. 60	£41.79	Add
084	CP052243	MOUNTING PLATE	£6.95	Add
085	CP050244	CLAMP	N/A	POA
086	CP050246	BRKT:NEUT: RTN	N/A	POA
087	CP050250	PLATE	£3.70	Add
088	CP050254	CONTROL LEVER	£41.88	Add
089	CP050256	SCREW	£7.93	Add
090	CP050258	PIN	£5.47	Add
091	CP050262	PULLEY	£35.25	Add
092	CP050266	WASHER	£2.91	Add
093	CP050268.00	ARBOR BRACKET RIGHT HAND	£45.31	Add
094	CP050269	PLATE	£44.30	Add
095	CP053274B.25	BLADE ADAPTER	£40.27	Add
096	CP050298	PINION	£30.63	Add
097	CP050975	SCREW	£8.32	Add
098	CP053250	WASHER	£10.65	Add
099	CP053709	LABEL	N/A	POA
100	CP053712	LABEL	N/A	POA
101	CP053715	DECAL	£5.21	Add
102	CP056252	GRIP	£37.02	Add
103	CP034615	RIVET AL 5	£2.79	Add
104	CP053802	LABEL	N/A	POA
105	CP053806	LABLE	£3.59	Add
106	CP052216	RETAINER BRAKE CLAMP RH	£5.41	Add
107	CP052217	RETAINER BRAKE CLAMP LH	£5.16	Add
108	CP052218	SUPPORT RIGHT HAND (OBSOLETE)	N/A
109	CP052219	SUPPORT LEFT (OBSOLETE)	N/A
110	CP052220	BRAKE BAIL HOLDER	£2.79	Add
111	CP056004.37	DECK	£407.89	Add
112	CP056062	LEVERAGE BLACK	£16.94	Add
113	CP056016	CUTTER 519X55X4	£72.61	Add
114	CP056063	LINK ROD	£30.01	Add
115	CP056089	GEARBOX	£390.16	Add
116	CP056093	SHIELD	£91.75	Add
117	CP056098	BELT COVER	£65.34	Add
118	CP056123	REAR WHEEL	£132.80	Add
119	CP056153	CABLE	£35.14	Add
120	CP056192	SPRING	£28.62	Add
121	CP056193	SPRING	£13.94	Add
122	CP056226	GEAR BOX	£46.21	Add
123	CP056238	WASHER	£13.77	Add
125	CP056246	LEVER	£49.62	Add
126	CP056250	LEVER	£64.60	Add
127	CP056258	FLANGE BUSHING	N/A	POA
128	CP060640	SCREW	£3.31	Add
129	CP032911	WASHER M8X38X2	N/A	POA
130	CP030845	SCREW	£4.62	Add
95A	CP052272B.25	MESSERNABE (25mm)	£60.78	Add
