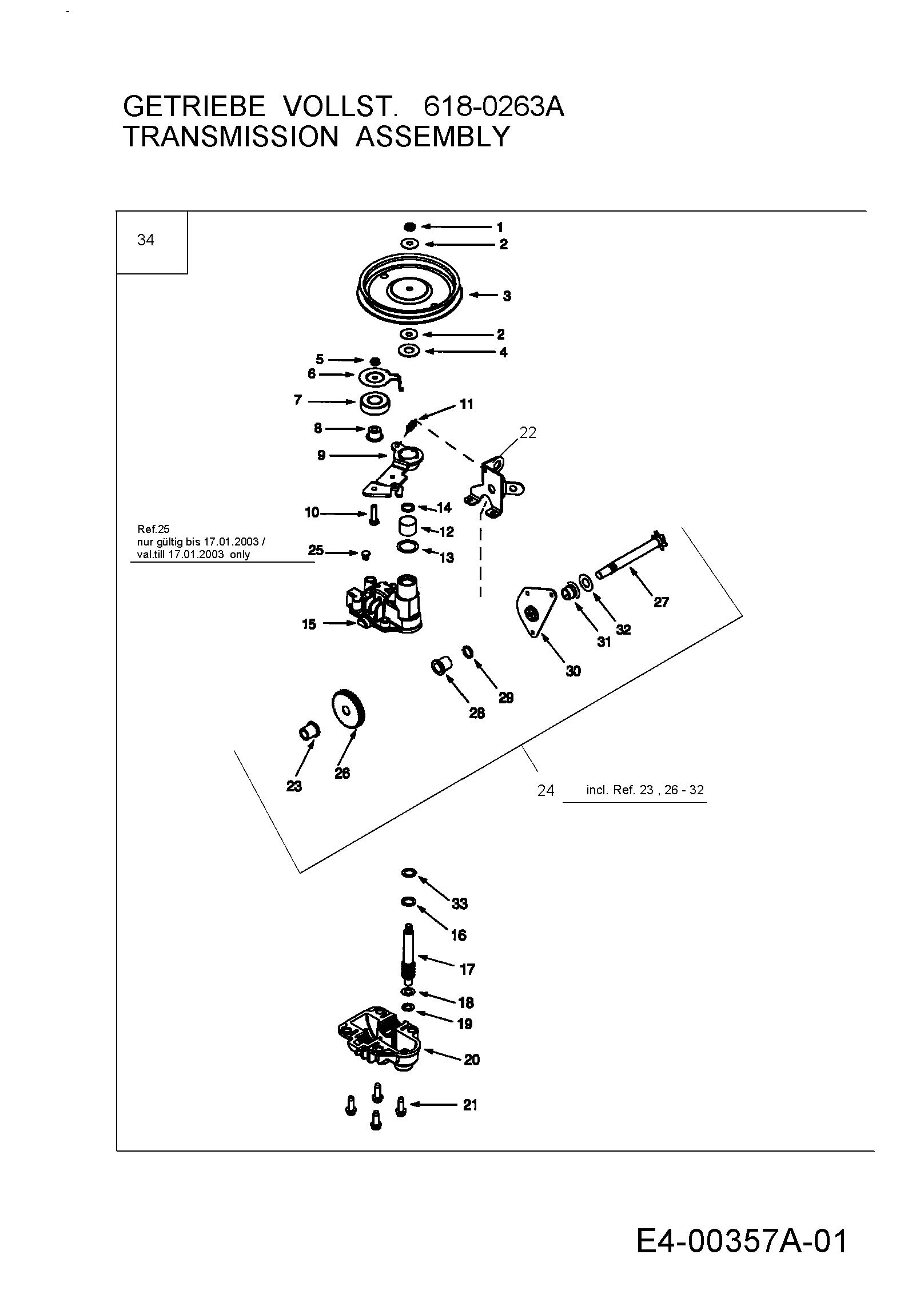

MTD016445

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	712-3025	HEX JAM NUT 5/16-24 GR 5	£4.37	Add
002	736-0425	BELLWASHER	£3.31	Add
003	756-0656	V-BELT PULLEY	£29.82	Add
004	736-3084	WASHER FLAT	£3.77	Add
005	712-0896	NUT:HEXLK:1/4-28:GR2:NYLON	£3.90	Add
006	782-7598	GUIDE ASSY-BELT	£19.38	Add
007	741-0124A	BALL BEARING	£20.00	Add
008	750-1050	FLANGE SPACER	£25.70	Add
009	682-0027A	BRACKET ASSY-VAR SPD	£57.27	Add
010	710-0299	SCRE.HHCS:1/4-28:1.00:GR5:SPEC	£18.02	Add
011	732-0849A	SPRING EXTENSION	£6.54	Add
012	741-0682A	SPACER-PIVOT-LH	£15.46	Add
013	736-0570	WSH:FLAT:.865 X 1.145 X .030	£16.41	Add
014	721-0329	OIL SEAL: .500 X .687 X .094	£22.54	Add
015	618-0253	UPPER HOUSING HALF	£101.86	Add
016	736-0616	NO LONGER AVAILABLE	N/A	POA
017	717-1487	PINION SHAFT	£82.59	Add
018	736-0314	WASHER-THRUST	£2.97	Add
019	736-0569	NO LONGER AVAILABLE	N/A	POA
020	618-0252	HOUSING-LOWER	£68.59	Add
021	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
022	782-7601A	CABLE BRACKET	£9.58	Add
023	741-0674	Thrust flange - half	£17.58	Add
024	611-0066	SHAFT ASSY.	£269.46	Add
025	721-0325	GREASE PLUG	£16.02	Add
026	717-1469	GEAR 34 TEETH	£49.01	Add
027	711-1168	OUTPUT SHAFT 6 TEETH	£38.88	Add
028	741-0673	BUSHING, BRUSH SHAFT (PM)	£17.58	Add
029	721-0329	OIL SEAL: .500 X .687 X .094	£22.54	Add
030	782-7595	PIVOT BRACKET	£21.63	Add
031	741-0324A	BEARING	£5.54	Add
032	736-0369	WASH:THRST:.508x1.000x.020	£2.97	Add
033	741-0690	THRUST BEARING	£14.44	Add
034	618-0263A	TRANSMISSION COMP.	£192.17	Add
