MTD008600

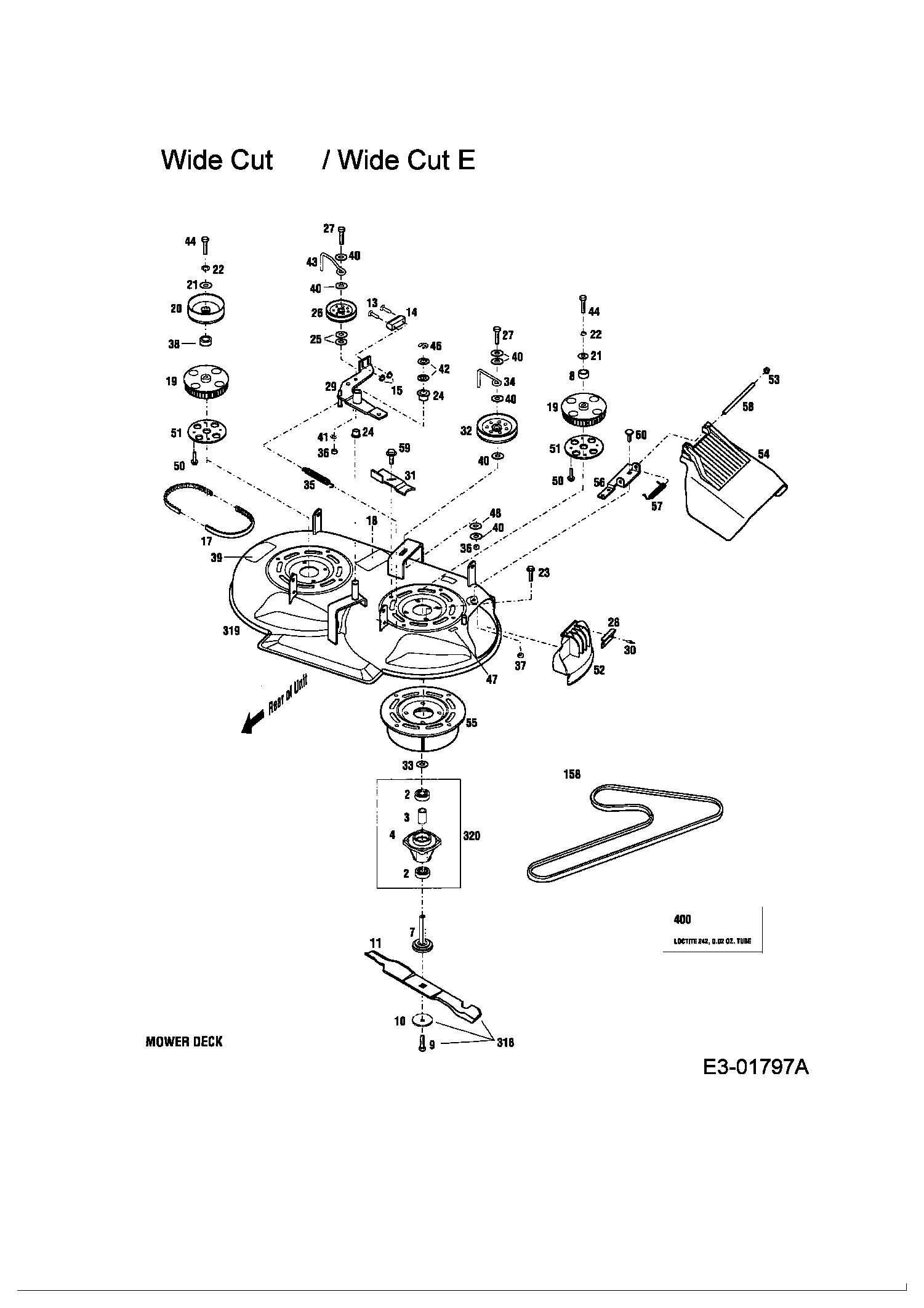

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	GW-1185574P	BEARING	£65.92	Add
003	GW-1746869	SPACER	£38.83	Add
004	GW1769048099	SPINDLE ASSY	£258.58	Add
007	711-04020	SPINDLE-BLADE 1/PIECE	£76.65	Add
008	GW-1918848	SPACER	£27.95	Add
009	GW-1765196	BLADE BOLT	£9.09	Add
010	GW-1765197	BELLEVILLE WASHER	£47.43	Add
011	GW-1910917	BLADE	£65.99	Add
013	GW-1771081	FLATHEAD BOLT	£13.50	Add
014	GW-1771083	BRAKE PAD	£108.99	Add
015	712-0271	NUT:SEMS:1/4-20	£3.03	Add
017	GW-1773600	TOOTHED DRIVE BELT	£134.31	Add
018	777S00004		N/A	POA
019	713-04050	PULLEY/ENG.HYDRO 3 SHV GW-1774220	£247.98	Add
020	GW-1918625	PULLEY-DRIVE	£98.04	Add
021	736-0322	FI-WASH	£8.68	Add
022	736-0171	WASHER	£2.93	Add
023	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
024	GW-1764140	FLANGE (RED)	£25.11	Add
025	GW-1701055	WASHER-FLAT	£5.47	Add
026	GW-1918626	IDLER PULLEY	£57.89	Add
027	GW-1100062	SCREW-HH 3/8-16X2.	£22.06	Add
028	GW1904809001	TRIM	£19.25	Add
029	GW-1918371		N/A	POA
030	GW-1186059	RIVET-POP .125	N/A	POA
031	GW-1911021		N/A	POA
032	GW-1749911	IDLER PULLEY	£105.89	Add
033	GW-1766787	THRUST WASHER	£15.40	Add
034	GW-1720717	BELT GUIDE	£6.85	Add
035	GW-1756595	SPRING	£28.08	Add
036	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
037	GW-1732499	NUT-TOP/LK	£3.20	Add
038	GW-1723996	SPACER	£67.32	Add
039	777S30118	LABEL-DANGER	N/A	POA
040	GW-1768818	FLAT WASHER	£3.31	Add
041	736-0169	L. WASHER	£2.89	Add
042	GW-1701447	NO LONGER AVAILABLE	N/A	POA
043	GW-1764135	NO LONGER AVAILABLE	N/A	POA
044	GW-1769397	BOLT	£11.57	Add
046	716-0101	RING-SNAP	£16.41	Add
047	777S00008		N/A	POA
048	GW-1185715	WASHER	N/A	POA
050	710-04065	BOLT GW-1771925	£13.87	Add
051	GW-1771922001	PLATE-SPROCKET COVER	£31.62	Add
052	631-04252	MULCH COVER	£70.04	Add
053	726-0135	Cap	£3.59	Add
054	631-04244	CHUTE ASSY	£61.64	Add
055	687-02004	MOUNT ASM-SPINDLE	£129.27	Add
056	GW-1910951		N/A	POA
057	GW-1910971	SPRING	£43.35	Add
058	GW-1910972	NO LONGER AVAILABLE	N/A	POA
059	710-0650	SCREW	£3.58	Add
060	GW-90077	BOLT:CRG:5/16-18:.750 GR1	£3.70	Add
158	GW-1769767	BELT	£100.82	Add
318	GW-1773595	NO LONGER AVAILABLE	N/A	POA
319	GW-1773587	NO LONGER AVAILABLE	N/A	POA
320	GW1769048099	SPINDLE ASSY	£258.58	Add
400	GW-97092	LOCTITE-242	N/A	POA
