MTD008653

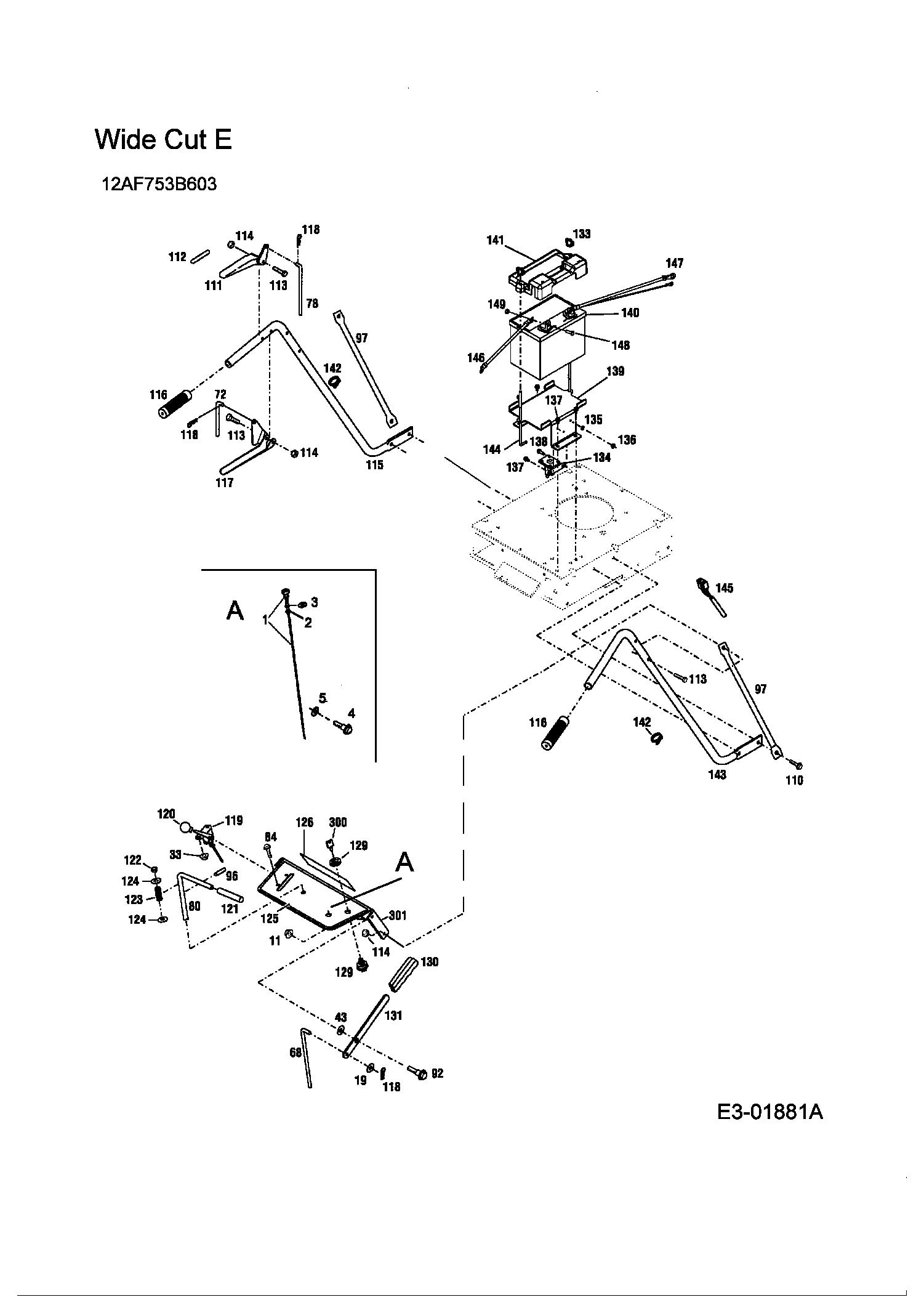

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	746-1134	NO LONGER AVAILABLE	N/A	POA
002	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
003	736-0300	WASHER	£2.81	Add
004	710-1388	SCREW	£3.23	Add
005	736-0400	FLAT WASHER .194x.620Dx.63TH	£3.77	Add
011	GW-1186393	NUT-	£19.32	Add
019	736-0567	washer	£4.59	Add
033	GW-1186389	NUT	N/A	POA
043	GW-1702646	WASHER-FLAT 1.0X.516	N/A	POA
068	GW-1769888	ROD-UPPER BLADE	N/A	POA
072	GW-1773607	ROD-UPPER CONTROL	N/A	POA
078	GW-1769872	UPPER BRAKE ROD	N/A	POA
080	GW-1769874	SHIFT ROD	£62.44	Add
084	GW-1186308	SCREW	N/A	POA
092	GW-1703051	BOLT, SHOULDER 1/4-20x1 TAPITE	N/A	POA
096	GW-1185279	ROLL PIN	£7.49	Add
097	GW1915545001	BRACE HANDLEBAR	£47.42	Add
110	710-0817	SCR:TT:5/16-18:1.250:HXINDWSH	£4.52	Add
111	GW1770445001	CONTROL HANDLE	£37.98	Add
112	777/00001		N/A	POA
113	GW-1915793	Screw	N/A	POA
114	712-0291	LOCK-NUT	£2.77	Add
115	GW1764922	HANDLEBAR LEFT	N/A	POA
116	720-0274	GRIP:1.0 ID x 5.0 LG	£7.62	Add
117	GW1773605001	CONTROL HANDLE	£79.82	Add
118	GW-1717897	PIN-CLIP	£4.39	Add
119	GW-1768191	NO LONGER AVAILABLE	N/A	POA
120	GW-1737118	KNOB	£12.59	Add
121	GW-1737041	GRIP-HANDLE	N/A	POA
122	GW-1715716	bush	N/A	POA
123	GW-1721492	SPRING (RED)	£7.41	Add
124	736-0326	FLAT WASHER :5101.00125	£3.69	Add
125	GW-1768457	DECAL-WARN*	N/A	POA
126	777D06080	LABEL-HANDLE 33"WIDECUT T-BELT	£10.16	Add
129	725-0267B	IGNITION SWITCH	£25.04	Add
130	720-0313	GRIP	£18.36	Add
131	GW-1768223	LEVER-MOWER ENGAGE	N/A	POA
133	712-0397A	WING NUT	£5.52	Add
134	725-1426A	SOLENOID	£24.30	Add
135	736-0222	NO LONGER AVAILABLE	N/A	POA
136	712-0298	NUT:JAM:1/4-20:GR2	£3.80	Add
137	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
138	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
139	787-01120		N/A	POA
140	5032-u3-0002	BATTERY MF896 (No Returns on this item)	£93.24	Add
141	731-0707A	BATTERY COVER	£21.20	Add
142	725-0157	NO LONGER AVAILABLE	N/A	POA
143	GW-1764923		N/A	POA
144	711-0222A	ROD-TIE	£20.24	Add
145	725-04088		N/A	POA
146	725-04086		N/A	POA
147	725-04087		N/A	POA
148	710-3015	SCREW HEX CAP	£3.33	Add
149	712-0271	NUT:SEMS:1/4-20	£3.03	Add
300	725-0201	IGNITION KEY	£6.47	Add
301	GW-1768625		N/A	POA
